Quick Details
-
Row Distance(mm):
-
30 - 50 mm, 30-50mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
m-strong
-
Dimension(L*W*H):
-
2680*960*1100(mm), 2680*960*1100(mm)
-
Weight:
-
290 KG, 290kg
-
Product Name:
-

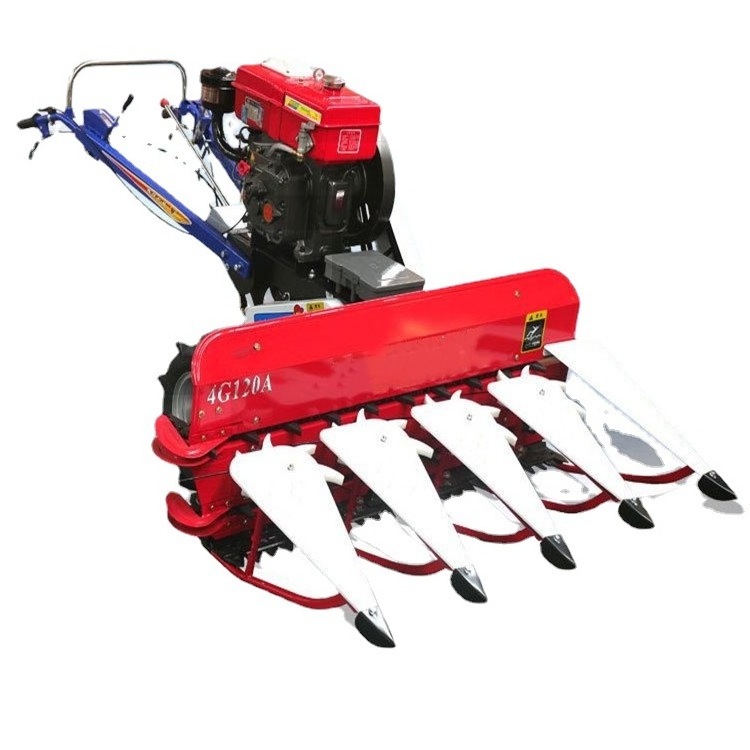

Agriculture Harvester Machine Walking Tractor
-
Keywords:
-
Harvesting Equipment
-
Function:
-
Tractor with rotavator
-
Wheel base (mm):
-
680-1000mm
-
Calibration power:
-
5.88-16.17(Kw)
Quick Details
-
Number of Rows:
-
4
-
Working Width(mm):
-
1200 mm
-
Tractor Power(HP):
-
8 - 20 HP
-
Row Distance(mm):
-
30 - 50 mm, 30-50mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
m-strong
-
Dimension(L*W*H):
-
2680*960*1100(mm), 2680*960*1100(mm)
-
Weight:
-
290 KG, 290kg
-
Product Name:
-
Agriculture Harvester Machine Walking Tractor
-
Keywords:
-
Harvesting Equipment
-
Function:
-
Tractor with rotavator
-
Wheel base (mm):
-
680-1000mm
-
Calibration power:
-
5.88-16.17(Kw)
Products Description
Product Description
Mini walking tractor are low price and easy for driving. Farm walking tractors have high ground clearance ,wide wheel tread and stable.
This two wheel tractors adopt multi working land,such as muddy land,mountaainous ,plain ,terrace field.
Walking tractor can be matched with all kinds of implements.
This two wheel tractors adopt multi working land,such as muddy land,mountaainous ,plain ,terrace field.
Walking tractor can be matched with all kinds of implements.
Machine Parameter
|
Overall Dimensions(mm)
|
|
2680*960*1100（mm）
|
|
|
Wheel Tread(mm)
|
|
680-1000mm
|
|
|
Min. Ground Clearance(mm)
|
|
241
|
|
|
Min. use weight(kg)
|
|
465
|
|
|
Gear
|
|
Forward/reverse, 6/2
|
|
|
Tyre
|
|
6 - 14
|
|
|
Speed(km/h)
|
Forward
|
2.58、3.95、6.17、7.71、11.81、18.49
|
|
|
|
Reverse
|
1.94、5.81
|
|
|
Engine
|
Brand
|
Yibiyuan
|
|
|
|
Type
|
Diesel Single cylinder; horizontal; 4 stroke; water cooled
|
|
|
|
Rated Power(km/hp)
|
13.2/18HP
|
|
|
|
Rated Speed(r/min)
|
2200
|
|
|
|
Bore × Stroke (mm)
|
110×115
|
|
|
|
Specific Fuel Consumption(g/kw*h)
|
≤269.6
|
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
