Quick Details
-
Brand Name:
-
yakoo
-
Core Components:
-
Stainless steel barrel body
-
Dimension(L*W*H):
-
219*219*450
-
Capacity:
-
0.004-0.15
-
Weight:
-
30
-
Inner Material:
-
304 Stainless steel
-
Outer Material:
-
304 Stainless steel
-
Design Pressure(MPa):
-
0.5Mpa
-
Design Standard:
-
0.5Mpa
-
Working Temperature(℃):
-
-20 - 180 ℃
-
Product name:
-

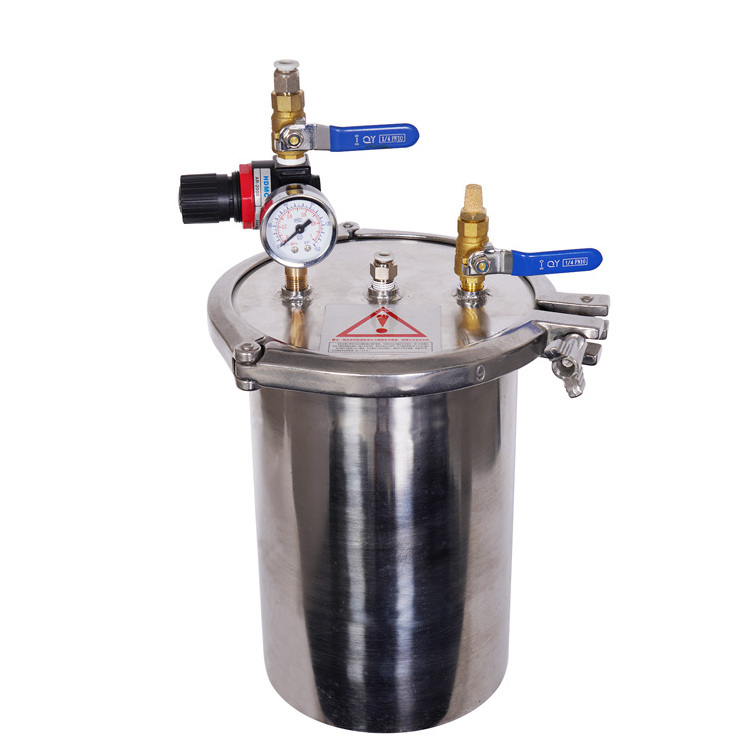

Clamp type Pressure Tank
-
Material:
-
304 Stainless steel
-
Function:
-
Storage fluid
-
Advantage:
-
sturdy and durable
-
Volume available:
-
4-15L
-
Shell material:
-
Stainless steel
-
Effective Capacity:
-
Glue storage
-
Style:
-
Pressure Tank
-
Suitable material:
-
Multiple Color Paint
Quick Details
-
Volume (m³):
-
4-15L
-
Max Working Pressure(MPa):
-
0.5Mpa, 0.5MPa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yakoo
-
Core Components:
-
Stainless steel barrel body
-
Dimension(L*W*H):
-
219*219*450
-
Capacity:
-
0.004-0.15
-
Weight:
-
30
-
Inner Material:
-
304 Stainless steel
-
Outer Material:
-
304 Stainless steel
-
Design Pressure(MPa):
-
0.5Mpa
-
Design Standard:
-
0.5Mpa
-
Working Temperature(℃):
-
-20 - 180 ℃
-
Product name:
-
Clamp type Pressure Tank
-
Material:
-
304 Stainless steel
-
Function:
-
Storage fluid
-
Advantage:
-
sturdy and durable
-
Volume available:
-
4-15L
-
Shell material:
-
Stainless steel
-
Effective Capacity:
-
Glue storage
-
Style:
-
Pressure Tank
-
Suitable material:
-
Multiple Color Paint
Technical parameter
|
Barrel lid thickness: 6mm
Maximum pressure: 0.3MPa Material: 304 stainless steel Auxiliary components:
sealing ring, safety valve, ball valve, 2 * 8 material joint, 2 * 6 gas joint.
|
|
|
|
|
|
|||||
|
Capacity
（L）
|
Weight
(KG)
|
Size(mm)
|
|
|
|
|||||
|
|
|
OD
|
ID
|
Inner (H)
|
Outer(H)
|
|||||
|
1
|
3.5
|
108
|
102
|
130
|
140
|
|||||
|
2
|
4.5
|
133
|
127
|
170
|
180
|
|||||
|
3
|
6
|
133
|
127
|
245
|
260
|
|||||
|
4
|
6.5
|
15
|
153
|
235
|
280
|
|||||
|
5
|
7
|
159
|
153
|
285
|
300
|
|||||
|
8
|
12
|
219
|
213
|
235
|
250
|
|||||
|
10
|
14
|
219
|
213
|
290
|
300
|
|||||
|
15
|
15
|
219
|
213
|
435
|
450
|
|||||
Our Advantages
1. Complete production line, more than 15-year experienced technology engineers and well trained workers
2. All products are manufactured and shipped in strict accordance 3.The maximum increased the qualified rate to
99%,furthermore,reduced the production time about 5 days, the 4. We have a good bussiness cooperation with different clients from
different countries.
2. All products are manufactured and shipped in strict accordance 3.The maximum increased the qualified rate to
99%,furthermore,reduced the production time about 5 days, the 4. We have a good bussiness cooperation with different clients from
different countries.
