This is our
Solar
connector integrating R&D, production and sales. It has IP68 protection level, UL94-VO flame resistance level, strong anti-aging, radiation resistance, high temperature resistance, low temperature resistance, excellent electrical conductivity, easy installation, and can be used for a long time. For outdoor use, it also has TUV, CE, RoHS, REACH, UKCA certification.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAYLAR
-
Model Number:
-
PV-15MC
-
Product name:
-
solar connector
-
Material:
-
PPO
-
Conductor:
-
Copper tin plating
-
Rated Voltage:
-
1500V
-
Rated Current:
-
30A 50A
-
Certificate:
-
TUV
-
Warranty:
-
25years
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Solar System Connection
-
Gender:
-
Male And Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAYLAR
-
Model Number:
-
PV-15MC
-
Product name:
-
solar connector
-
Material:
-
PPO
-
Conductor:
-
Copper tin plating
-
Rated Voltage:
-
1500V
-
Rated Current:
-
30A 50A
-
Certificate:
-
TUV
-
Warranty:
-
25years

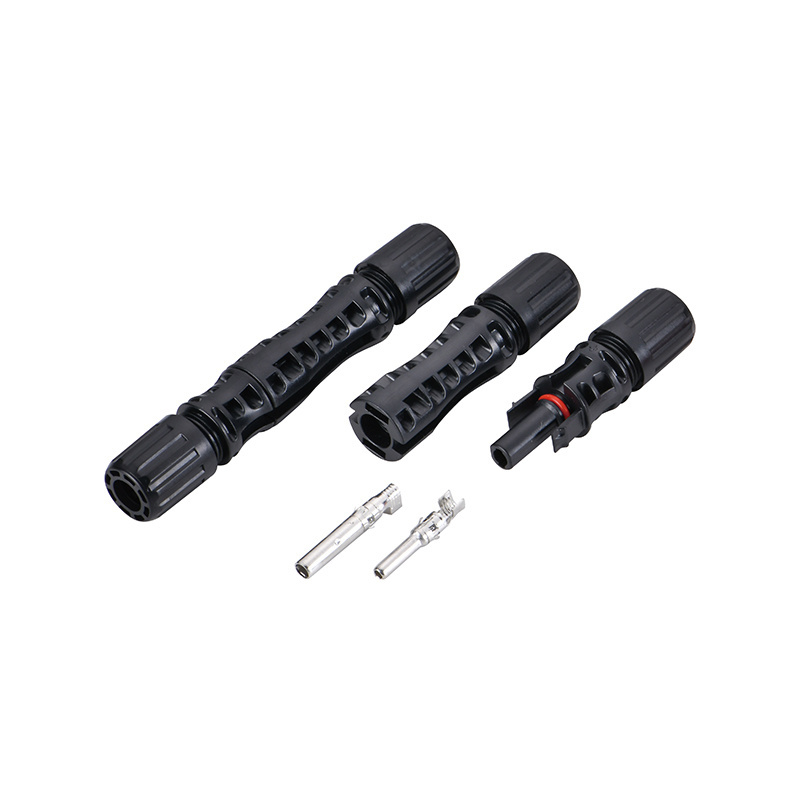

Products Description
17A/22.5A/30A 1500V IP68
Solar Connector
Key Features
High Quality PPO Material
High-quality materials, high temperature resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.
T2 Copper Conductor
Open-type inner core (O-shaped inner core is optional), tinned/silver-plated copper, wear-resistant, corrosion-resistant, prevent oxidation, low resistance and strong conductivity.
High Strength Waterproof Ring
The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and the protection level is IP68.
Stable Self-locking Structure
The connection is connected by compression, and the male and female heads have a self-locking structure, which can be opened and closed freely.
Protection Class IP68
The water depth is 1 meter, lasts for 1 hour, works normally (TUV laboratory test).
Adapt To The Environment
-40℃~+90℃ can be used, suitable for most working environments.
Specification
|
Model Number
|
PV-15MC
|
|
Voltage
|
DC 1500V
|
|
Rated current
|
17A/22.5A/30A
|
|
Insulation material
|
PP0
|
|
Contact material
|
copper tin-plated
|
|
Waterproof
|
IP68
|
|
Ambient Temperature
|
-40℃~+95℃
|
|
Product Temperature
|
-40℃~+135℃
|
|
Wiring specification
|
2.5mm²/4mm²/6mm²
|
|
Contact resistance
|
≤0.35mΩ
|
|
Incineration level
|
UL94-VO
|
|
Box size
|
48*38*35cm（500set）
|
|
Box Gauge Weight
|
24KG
|
Product List
Package Content
A box of 1000 sets of
Solar
connectors
1.100 male/100 female per pack
2.1000 sets of car parts terminals/stamping parts terminals
3.
The packaging can be changed according to customer needs, please contact customer service for details.
