Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LX
-
Product Name:
-

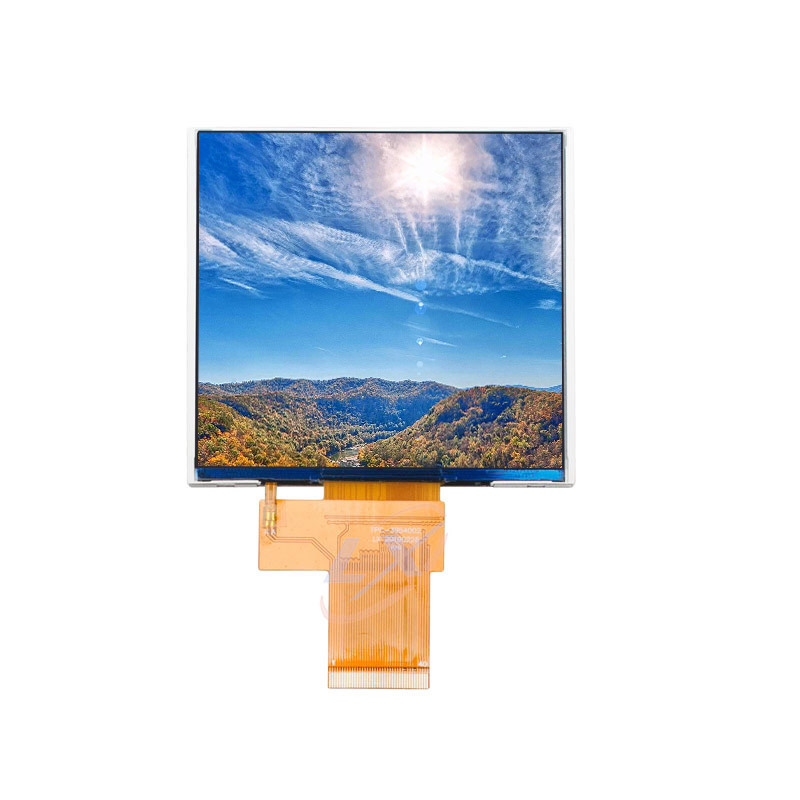

3.95 inch tft lcd module
-
Resolution:
-
480*480
-
Size:
-
3.95inch
-
Viewing Angle:
-
Free View
-
Application:
-
consumer industrial
-
Touch Panel:
-
RTP or CTP Optional
-
Interface:
-
3 SPI 9b(rise) + RGB
-
LCD Type:
-
IPS TFT LCD PANEL
-
MOQ:
-
10pcs
Quick Details
-
Type:
-
LCD Module, TFT LCD Display
-
Display Size:
-
3.95 inch
-
Supplier Type:
-
ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LX
-
Product Name:
-
3.95 inch tft lcd module
-
Resolution:
-
480*480
-
Size:
-
3.95inch
-
Viewing Angle:
-
Free View
-
Application:
-
consumer industrial
-
Touch Panel:
-
RTP or CTP Optional
-
Interface:
-
3 SPI 9b(rise) + RGB
-
LCD Type:
-
IPS TFT LCD PANEL
-
MOQ:
-
10pcs
high brightness lcd display 3.95 inch RGB interface 480X480 lcd
High-quality Tray/Anti-Static Bag/Carton
High-quality Foam Slot/Carton
Customized Package
High Quality 3.95 inch tft lcd display
| Item | Contents | Unit |
| LCD Type | TFT TRANSMISSIVE | / |
| Viewing direction | Free View | O' Clock |
| Module outline (W x HxD) | 78.40 x 78.40 x 2.17 | mm |
| Active area (WxH) | 71.586 x 70.176 | mm |
| Number of Dots | 480(RGB) x480 | / |
| Driver IC | ST7701S | / |
| Backlight Type | 4 Serial*2 LED | / |
| Interface Type | 3 SPI 9b(rise) + RGB | / |
| Input voltage | 3.3 | V |
0.96 inch 80x160 1.54 inch 240x240 2.8 inch 240x320
TFT LCD Display TFT LCD Display TFT LCD Display
7.0 inch 800*480 8.0 inch 800*480 10.1inch 1024*600
TFT LCD Display TFT LCD Display TFT LCD Display
FAQ
Q1. Can I have a sample order?
A: Yes, sample order is always welcome for new projects or as replacement of running projects.
Q2. What is the lead time for Sample order and Mass Production order?
A:
For LX standard products, the lead time for samples are usually 1-7 days.
For Customized products, it depends on the change requirements for FPC, Backlight…
For Mass production, we usually make delivery among 2-8weeks, special size may need some longer time. In summary, based on our years of big output, we have been keeping good relationship with Taiwan LCD panel and IC suppliers, we had a steady supply even when there was heavy shortage of materials.
Q3. Do you have any MOQ?
A: Yes, it depends on different sizes of products. Please refer to our sales. Thanks.
Q4.How long is the warranty?
A: Usually 12 Months. If there is any defect upon using within the warranty period, we require our clients to return the goods to us, with shipping cost paid by us.
Q5. How do I work with you on Customized products?
A: At the beginning please provide us any drawing , Specification, any special requirements Our engineers will work on the compatible solution and also moulds cost if any. We provide samples for approval. We make modification if necessary. We do small quantity of trial order. We do mass production.
Q6. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. While it requires MOQ, please refer to our sales, thanks.
