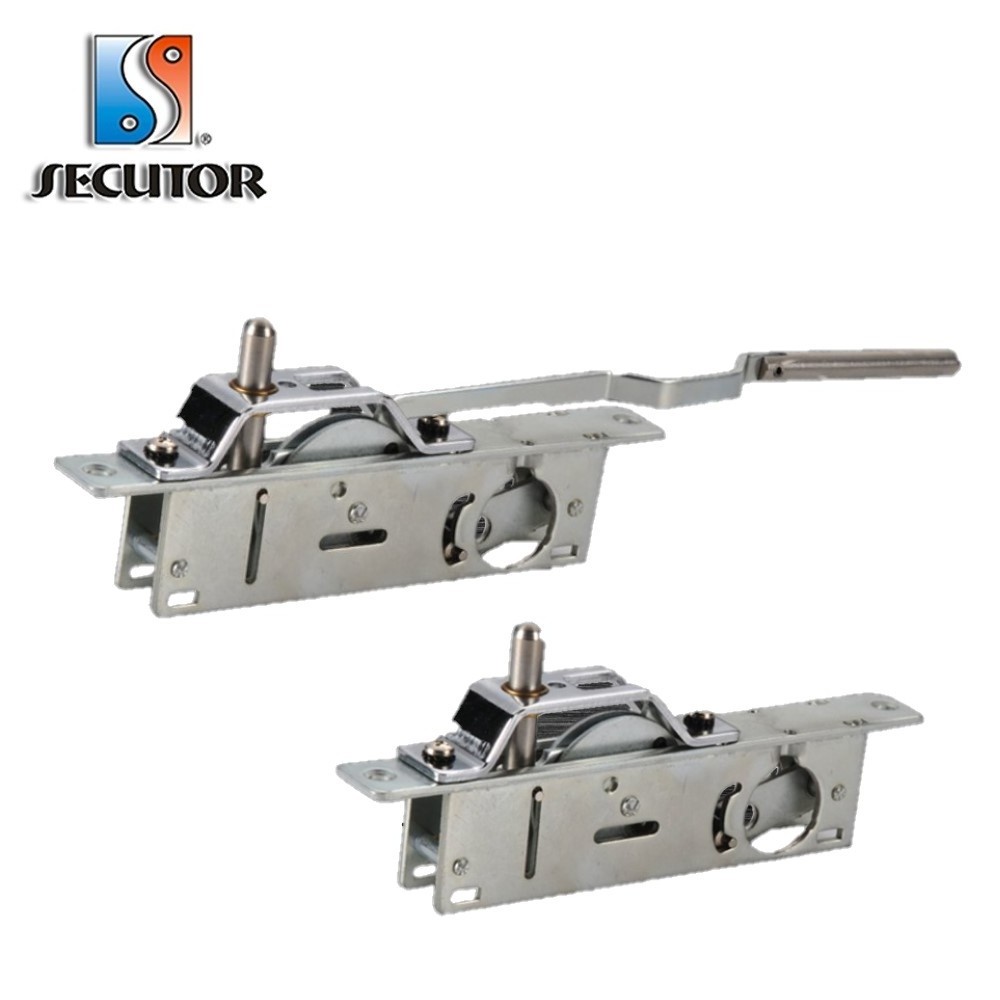

Korean Deadlock Bottom Rail Metal Glass Door Lock

* Korean Deadlock Bottom Rail Metal Glass Door Lock

* For tempered glass door, no stile at all (Frameless) doors

* Bottom Rail Deadbolt provides maximum security with deadbolt over-center / pivot locking mechanism

* Lies horizontally in the bottom rail of ultra-narrow stile doors which have insufficient vertical space for a lock, and tempered glass doors which have no stile at all

* Lock case: Steel with corrosion-resistant plating, 1" x 6" x 1-13/16"

* Horizontal bolt throw 1-1/8"

* Hardened steel bolt: 3/8" dia.

* Backset for horizontal bolt: 5-3/4", for vertical bolt 1-7/8"

* Accept 1-5/32" dia. mortise cylinder from either or both sides

* Lock with vertical bolt only or with both vertical and horizontal bolt are available

* 360° turn of key or thumbturn throws or retracts bolt(s)

* Key can be removed only when bolts are in a positively locked or unlocked position

Dimension of Korean Deadlock Bottom Rail Metal Glass Door Lock

Packaging of Korean Deadlock Bottom Rail Metal Glass Door Lock

* 1pc/box, 25pcs/carton

Shipping of Korean Deadlock Bottom Rail Metal Glass Door Lock

* By sea / air / courier express. (FOB Taiwan)

* Courier express includes DHL, Fedex, TNT, UPS, EMS, SF, etc.

* Payment by T/T , L/C, Western Union, PayPal or Escrow

* We require 100% payment in advance before delivery
