Quick Details
-
Brand Name:
-
calorimeter price
-
Model Number:
-
GDY-1A+ bomb calorimeter
-
Heat capacity:
-
(14000 ~ 15000)J/K
-
Temperature resolution:
-
0.001 K
-
Thermal error:
-
≤60J/g
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Repeatability error:
-
≤0.2% (Grade C)
-
Pressure endured by Oxygen bomb:
-
20 MPa
-
Ambient humidity:
-
less than 85%
-
Power supply:
-
AC(220±5%)V,50Hz
-
Product name:
-
Automatic Bomb Calorimeter Price / Bomb Calorimeter
Quick Details
-
Warranty:
-
1 Year, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
calorimeter price
-
Model Number:
-
GDY-1A+ bomb calorimeter
-
Heat capacity:
-
(14000 ~ 15000)J/K
-
Temperature resolution:
-
0.001 K
-
Thermal error:
-
≤60J/g
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Repeatability error:
-
≤0.2% (Grade C)
-
Pressure endured by Oxygen bomb:
-
20 MPa
-
Ambient humidity:
-
less than 85%
-
Power supply:
-
AC(220±5%)V,50Hz
-
Product name:
-
Automatic Bomb Calorimeter Price / Bomb Calorimeter
Automatic Bomb Calorimeter Price / Bomb Calorimeter / Bomb Calorimeter Experiment with Best Price
The bomb calorimeter for coal testing instrument adopts high precision temperature sensor and high-power A/D converter, and uses single chip microprocessor to form an intelligent temperature data collection and transfer system. It uses microcomputer to form an automatic, convenient, rapid, and intelligent instrument. If the user operates the instrument carefully and input all kinds of parameters correctly, the desired measurement data will be getted. The instrument can be widely used to determine the calorific value of materials such as coal, oil, coke, paraffin and other combustible materials etc. It is an ideal option of the thermoelectricity, metallurgical, cement, chemical industries, scientific research institutes, college and universities.
The instrument adopts integrated structure
- (1) Main unit of calorimeter: It consists of outer bucket, inner bucket, stirring motor and oxygen bomb.
- (2) Cover of the water bucket: Double-layer moist cover on both inner and outer bucket. Equipped with stirring motor and temperature sensor.
- (3) Stirring motor: Stirring motor for water bath in inner bucket.
- (4) Temperature sensor: Precise temperature sensor in inner bucket.
- (5) Stirring rod: Manual stirring rod for water bath in outer bucket(Used to stir manually when needed).
- (6) Printer: Micro-needle printer, 40 bytes per row (DBC case).
- (7) Screen: Colored LED screen, shows different kinds of parameters.
- (8) Operation keyboard: Light-touch type. Details refer to below.
- (9) Oxygen bomb cylinder: Stainless steel and high pressure resistance. The sample is tested in the cylinder.
- The bomb calorimeter uses a single-chip control technology, color LCD display, high-precision temperature sensor and high-performance A / D conversion device, consisting of a high degree of automation, screen effect is good, easy to use, convenient intelligent data compilation instrument.
- The bomb calorimeter is fully automated in the testing process, after the sample in place, correct input various parameters automatically without manual intervention to complete each test process; you can print measurement data directly on the A4-format printer configuration after the end of the trial.
- The bomb calorimeter adopts the self sealing type oxygen bomb, all the structure is made of stainless steel, and the strength is enough to withstand the pressure test of 20MPa at room temperature.
- The inner tube of the instrument is made by stainless steel sheet, section of pears, put the barrel of water was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature uniformity.
- The bomb calorimeter of the external water jacket is a double container and experiment when filled with water, through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the constant temperature environment.
- Heat capacity: (14000 ~ 15000)J/K
-
Temperature resolution: 0.001 K
-
Thermal error: ≤60J/g
-
Temperature measurement range: 10 ℃~35 ℃
-
Repeatability error: ≤0.2% (Grade C)
-
Pressure endured by Oxygen bomb: 20 MPa
-
Ambient temperature: 15 ℃~28 ℃ (room temperature), The temperature fluctuation during each test should be not more than 1 ℃
-
Ambient humidity: less than 85%
-
Power supply: AC(220±5%)V,50Hz
-
Total power consumption: less than 150W
-
Dimensions: 600 mm * 460 mm * 430 mm (length * width * height, PC is not included)
-
Note : If the test sample is pulverized coal samples, in order to obtain better test results, we recommend separately of the company's private press cake machine.
Normal Problem and solution:
|
No. |
Problem |
Cause |
Solution |
|
1 |
Indication light is off. |
1.No power supply. 2.The fuse is damaged. |
1.Connect the power supply 2.Replace the fuse. |
|
2 |
Can not be ignited. |
1.The ignition electric pole is poor connected with oxygen bomb. 2.The ignition wire is short circuited. |
1.Make sure the electric pole and oxygen bomb well connected. 2.Install the ignition wire again. |
|
3 |
Stirrer doesn’t work |
1.The stirring motor is blocked. 2.The stirring motor wire is disconnected. |
1.Get rid of the blocks. 2.Connect the wire again. |
|
4 |
Temperature doesn’t decrease |
1.Water temperature in outer bucket is much lower than ambient temperature. 2.The sample mass is too less. |
1.Make determination again after regulating the outer bucket temperature. 2. 2.Use more sample to rise the temperature 2 K~3K. |
|
5 |
Clock stops |
1. the clock has no power |
1.Replace battery 2.Manually input time to continue determination. |
- Warning: If there is any breakdown, please cut off the power supply immediately. The operator can use the instrument again only after it be repaired by professional to avoid accidents!

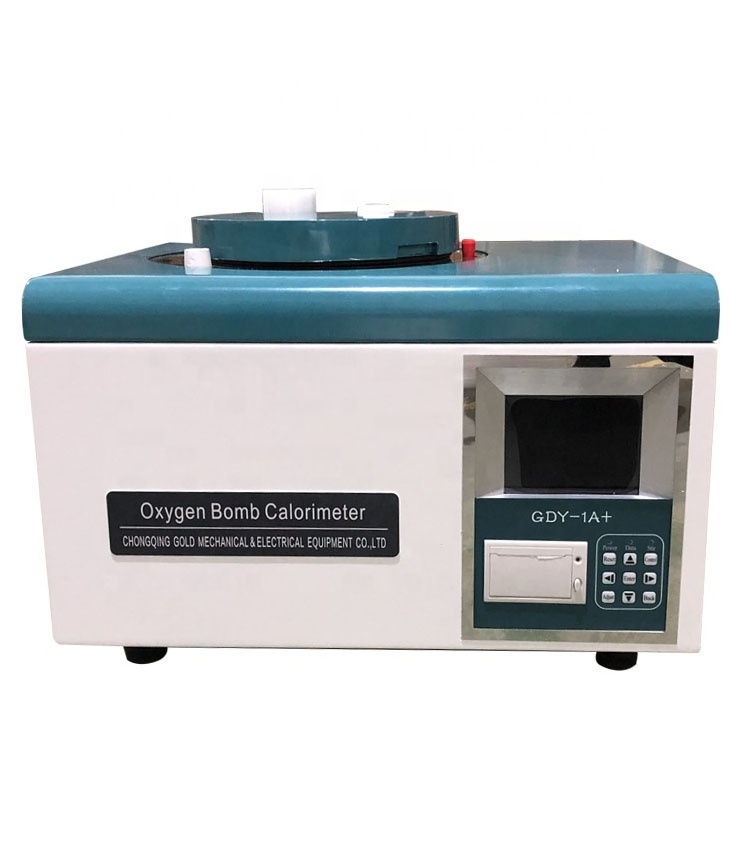

Physical picture display of O xygen B omb C alorimeter
If you have any questions about this Automatic Bomb Calorimeter Price / Bomb Calorimeter / Bomb Calorimeter Experiment with Best Price or the instruction, please contact us in time. We will serve you wholeheartedly!
