Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Compere
-
Product Name:
-
modbus serial gateway
-
Material:
-
Metal
-
Size:
-
100*100*122mm
-
Installtion:
-
Wall mounted
-
Weight:
-
0.6kg
-
Accessories:
-
DC power supply, circuit breaker, wire, DIN rail, etc
-
Customization:
-
Other size are choosable as u need
-
Features:
-
Easy to install
-
Other function:
-
communication cabinet
Quick Details
-
Chipset:
-
ARM9
-
Application:
-
Industrial serial server, Data transmission communication converter
-
Model Number:
-
KPM201
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Compere
-
Product Name:
-
modbus serial gateway
-
Material:
-
Metal
-
Size:
-
100*100*122mm
-
Installtion:
-
Wall mounted
-
Weight:
-
0.6kg
-
Accessories:
-
DC power supply, circuit breaker, wire, DIN rail, etc
-
Customization:
-
Other size are choosable as u need
-
Features:
-
Easy to install
-
Other function:
-
communication cabinet
WiFi Data Protocol Converter Wireless Data Collector Iot Gateway
KPM201 industrial wireless data logging protocol converter modbus to 4g gateway adopts OpenWrt routing system design in embedded linux system, provides 1 RS458 and 1 RS232, 2 Ethernet ports, supports wireless 4G and WiFi communication, supports multiple communication methods and different communications Protocol.
The gateway has indicator lights to provide users with direct observation, supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for data collection and communication, industrial control, gateway routing and other occasions.
The gateway has indicator lights to provide users with direct observation, supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for data collection and communication, industrial control, gateway routing and other occasions.

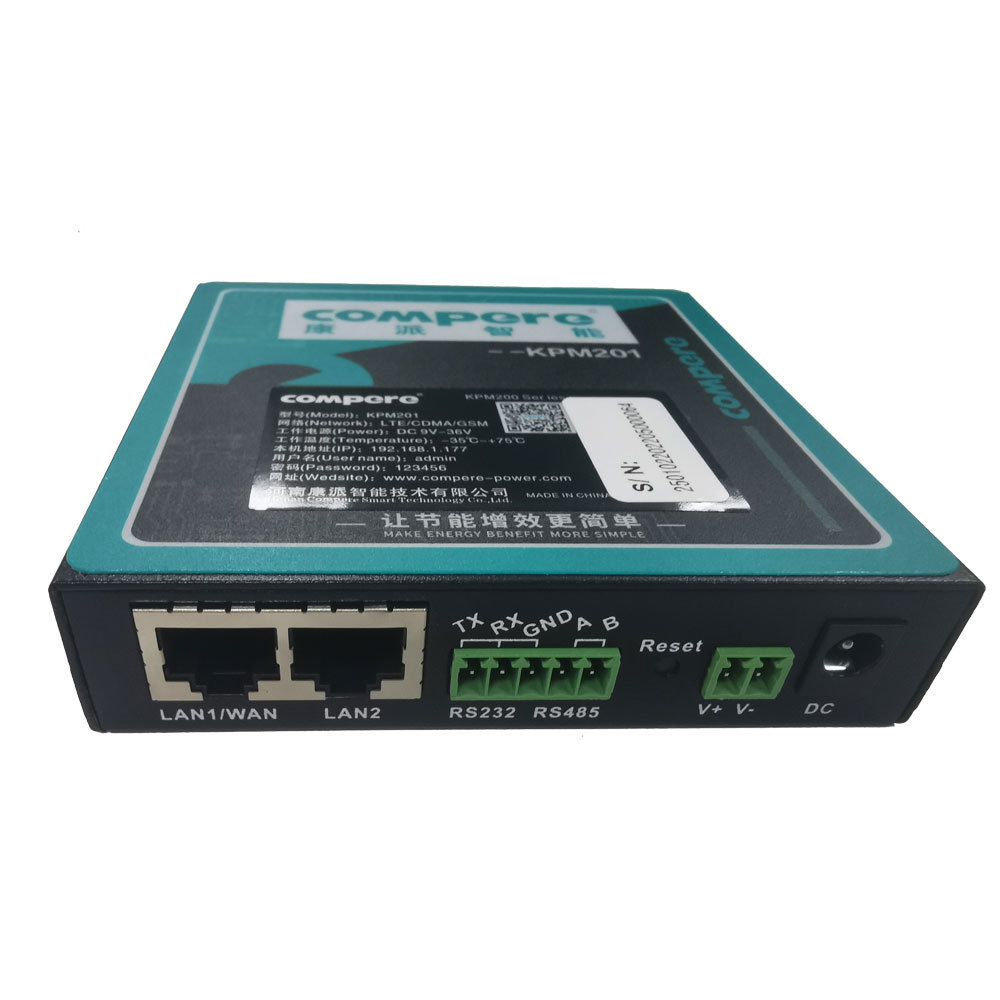

Details Images
Features of industrial modbus rtu wifi gateway
* Support 4G LTE CAT4 high-speed network
* Support WLAN
* With 2 Ethernet ports
* Support multiple VPN functions
* Support wired and wireless mutual backup
* Support the efficient completion of large-scale equipment network deployment
* Support rail and desktop installation
* Support 4G LTE CAT4 high-speed network
* Support WLAN
* With 2 Ethernet ports
* Support multiple VPN functions
* Support wired and wireless mutual backup
* Support the efficient completion of large-scale equipment network deployment
* Support rail and desktop installation
|
KPM201 industrial wireless iot gateway protocol converter serial to 4g wifi mqtt modbus gateway Specifications
|
|
|
|
|
||||
|
Working power
|
Rated voltage
|
DC 5~36V
|
|
|
||||
|
|
Power consumption
|
<3VA
|
|
|
||||
|
Capacity index
|
LAN
|
2* 10/100M RJ45 interface
|
|
|
||||
|
|
Serial port
|
1 * RS485 port +1 * RS232
|
|
|
||||
|
|
Communication master station protocols
|
<16/pc
|
|
|
||||
|
|
Transmission mode
|
Full or half duplex
|
|
|
||||
|
Performance index
|
Dual machine switching time
|
<5s
|
|
|
||||
|
|
MTBF
|
>50000h
|
|
|
||||
|
|
Status indication
|
Panel LED, reflecting the serial port data transmission and reception status
|
|
|
||||
|
Protocol
|
Downlink protocol
|
Modbus-RTU,Modbus-TCPIP,DLT645_1997,DLT645_2007
|
|
|
||||
|
|
Uplink protocol
|
IEC104 Deliver , InSqlModbusSlave,ModbusSlaveST
|
|
|
||||
|
EMC
|
Fast pulse group immunity
|
IEC61000-4-5, level 3
|
|
|
||||
|
|
Surge immunity
|
IEC61000-4-2, level 3
|
|
|
||||
|
|
Electrostatic immunity
|
IEC61000-4-4, level 3
|
|
|
||||
|
Working environment
|
Ambient temperature
|
-25℃~+70℃
|
|
|
||||
|
|
Relative humidity
|
5%~95%, no condation
|
|
|
||||
|
|
Storage temperature
|
-30℃~+75℃
|
|
|
||||
|
Mounting size
|
Mounting type
|
Wall, DIN rail, panel mounted
|
|
|
||||
|
|
Size L×W×H
|
100mm×100mm×23mm, total 0.6kg
|
|
|
||||
