Quick Details
-
Model Number:
-
EHP-63A, EHP-63A
-
Place of Origin:
-
Shanghai, China
-
Power:
-
Electric
-
Type:
-
Hydraulic Pump
-
Rated Pressure:
-
70Mpa
-
Rated output:
-
0.9l/min
-
Power rating:
-
0.75KW
-
Speed:
-
1400r/min
-
Working power:
-
50-60HZ/110-380V
-
Fuel:
-
hydraulic oil
Quick Details
-
Application:
-
Industrial Utilities
-
Pressure:
-
Other
-
Brand Name:
-
Haicable
-
Model Number:
-
EHP-63A, EHP-63A
-
Place of Origin:
-
Shanghai, China
-
Power:
-
Electric
-
Type:
-
Hydraulic Pump
-
Rated Pressure:
-
70Mpa
-
Rated output:
-
0.9l/min
-
Power rating:
-
0.75KW
-
Speed:
-
1400r/min
-
Working power:
-
50-60HZ/110-380V
-
Fuel:
-
hydraulic oil

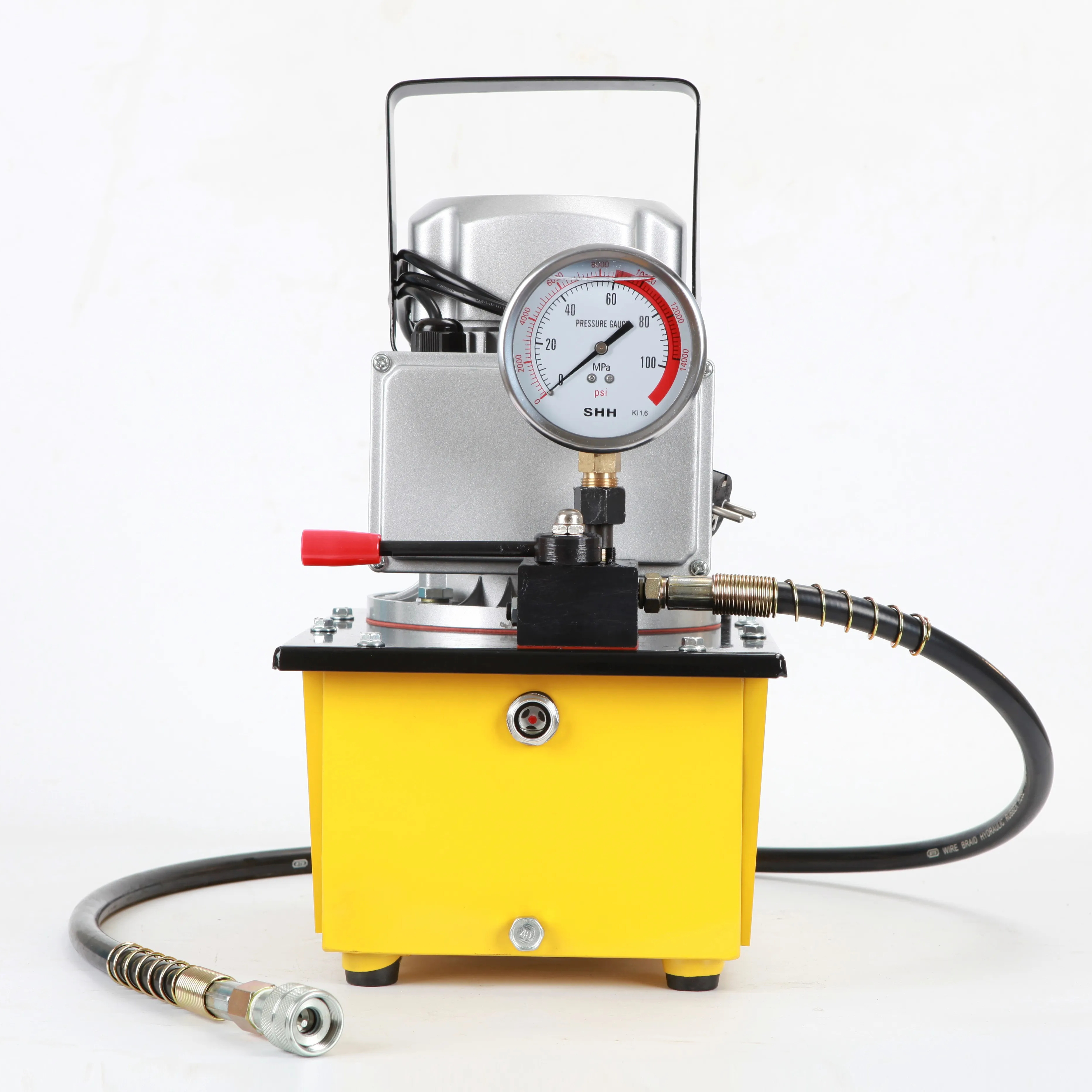

5000cc Oil Capacity Electric Hydraulic Pump EHP-63A
Features:
• Single-Acting
• Electrical controller for easy and safe operation
• Operator can keep away from application during operation
• Carrying handles for easy carrying with two handles
• Quick coupler for easy pipe installation
• Pressure gauge for safe operation
• Monitor working pressure
• Wood carton for well tool protection during delivery
Parameters:
|
Model |
EHP-63A |
|
Rated Pressure |
700 Bar |
|
Oil Reservoir |
5000CC |
|
Oil Delivery Speed |
Low pressure 2.6cc/stroke High pressure: 0.32cc/stroke |
|
Working Pressure |
Low pressure 0-20bar High Pressure: 20-700bar |
|
Power |
220V/50HZ |
|
Motor |
0.75KW |
|
Size |
350*270*490mm |
|
Weight |
29 kg |
Application:
The pump main matched with hydraulic head, punching driver or cylinder for support bridge construction, electrical working, State Grid construction, underground cable construction, Building construction etc.
