Quick Details
-
Certification:
-
ISO 9001:2000
-
After-sales Service Provided:
-
Online support
-
Product name:
-

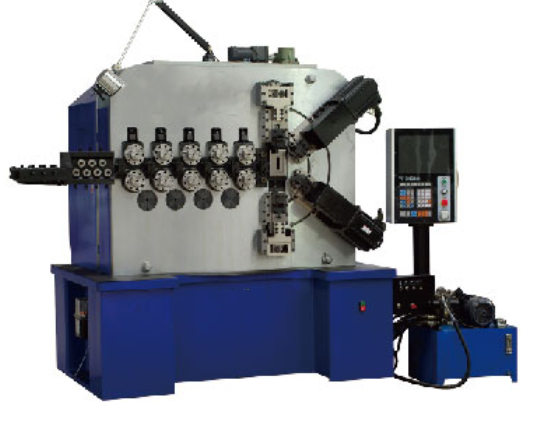

High performance 3D CNC Wire Molding Machine Wire Bending Machine
-
Wire diameter:
-
3mm-12mm
-
Axles amount:
-
7
-
Wire feed length:
-
Unlimited
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Feihong
-
Weight (KG):
-
2000
-
Certification:
-
ISO 9001:2000
-
After-sales Service Provided:
-
Online support
-
Product name:
-
High performance 3D CNC Wire Molding Machine Wire Bending Machine
-
Wire diameter:
-
3mm-12mm
-
Axles amount:
-
7
-
Wire feed length:
-
Unlimited
Product Description
CNC stirrup bender can automatically complete the straightening, lengthening, bending and cutting of steel wire, so that it can save time, labor and materials. With high processing precision and efficiency, it can realize fully automated, uninterrupted assembly line for steel wire processing. The machine is widely used in railways, highways, bridges, real estate, large-scale wire processing plants and other fields
|
SN |
Item |
CNC-780 |
CNC-7120 |
|
1 |
Wire diameter |
Φ3mm-φ8mm |
Φ4mm-φ12mm |
|
2 |
Axles amount |
7 |
7 |
|
3 |
Wire feed length |
Unlimited |
Unlimited |
|
4 |
Wire feed speed |
100m/min |
|
|
5 |
Wire feed instruction value |
±0.01--±9999.99 |
±0.01--±9999.99 |
|
6 |
Cam instruction value |
±0.1°--±359.9 |
±0.1°--±359.9 |
|
7 |
Wire feed shaft servo power |
2.7kw |
4.4kw |
|
8 |
Wire-switching shaft servo power |
2.7kw |
2.7kw |
|
9 |
Torsion shaft servo power |
2.7kw |
4.4kw |
|
10 |
Lifting platform servo power |
2.7kw |
2.7kw |
|
11 |
Cut shaft servo power |
2.7kw |
4.4kw |
|
12 |
Torsion lifting platform servo power |
2.7kw |
4.4kw |
|
13 |
Core-switching shaft servo power |
2.7kw |
2.7kw |
|
14 |
Machine weight |
4300kg |
4600kg |
|
15 |
Machine dimension |
3600*980*1600mm |
2000*4100*1900mm |
