Quick Details
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
Z712-703-3800
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
25w
-
Cable Length:
-
300mm
-
Outlet Size:
-
13.2mm
-
Power:
-
5A
-
Theory:
-
Vacuum Pump
-
type:
-
small vacuum pump 6V
-
color:
-
grey
-
brush or brushless:
-
brush
-
certification:
-
CE,Rohs,ISO
-
Basic Materials:
-
Plastic/PPS/Nylon,Hardware,Rubber
-
Working way:
-
Continuous or intermittent
-
Standard or Nonstandard:
-
Standard,customized
-
Fuel:
-
DC power supply
-
Certification:
-
RoHS, ce, Reach
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry
-
Pressure:
-
150Kpa
-
Voltage:
-
6v/9v/12v/24v
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
Z712-703-3800
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
25w
-
Cable Length:
-
300mm
-
Outlet Size:
-
13.2mm
-
Power:
-
5A
-
Theory:
-
Vacuum Pump
-
type:
-
small vacuum pump 6V
-
color:
-
grey
-
brush or brushless:
-
brush
-
certification:
-
CE,Rohs,ISO
-
Basic Materials:
-
Plastic/PPS/Nylon,Hardware,Rubber
-
Working way:
-
Continuous or intermittent
-
Standard or Nonstandard:
-
Standard,customized
-
Fuel:
-
DC power supply
-
Certification:
-
RoHS, ce, Reach
electric small vacuum pump 6V
* Perfomance parameter of small vacuum pump 6V
|
Model |
Size(mm) |
Voltage(DC,V) |
Power(W) |
Vacuum(Kpa) |
Flow rate(L/Min) |
Weight(G) |
|
Z712-703-3800 |
66*85.5*116 |
6V,9V,12V,24V |
25 |
70 |
25 |
600 |
* Features of electric small vacuum pump 6V
1.High temperature performance, good consistency
2.Oil resistance and easy installation
3.DC brush motor
4.Long life span, low heat.
5.Heavy duty work for 24 hours and Continuous operation
6.The key parts are imported
7.Can work for long hours
*Notes of electric small vacuum pump 6V
1.Do not use this product beyond the limit specified in this specification.
2.When using the brushless motor, be noted that the input power should be constant pressure and filtering.
3.Keep the inlet and outlet clean and smooth , no solid particles.
4.May contain a small amount of water, not solid foreign objects into the pump body.
5.In inlet and outlet of the non-clean,please install air intake filters.
6.The specification of this product is only for your reference
7.The specific details should check the real products.
8.Products should be made according to customer ’ s request within the permitted range.
9.Non-professional person should not disassemble this product.
10.Long service life at room temperature environment.
11.Can supply a variety of certifications according to customer ’ s requests.
*Application of electric small vacuum pump 6V
1.Electronic products,agriculture,finishing,light industry products
2.Analytic-al instruments
3.Chemical and production engineering
4.Various ancillary equipment

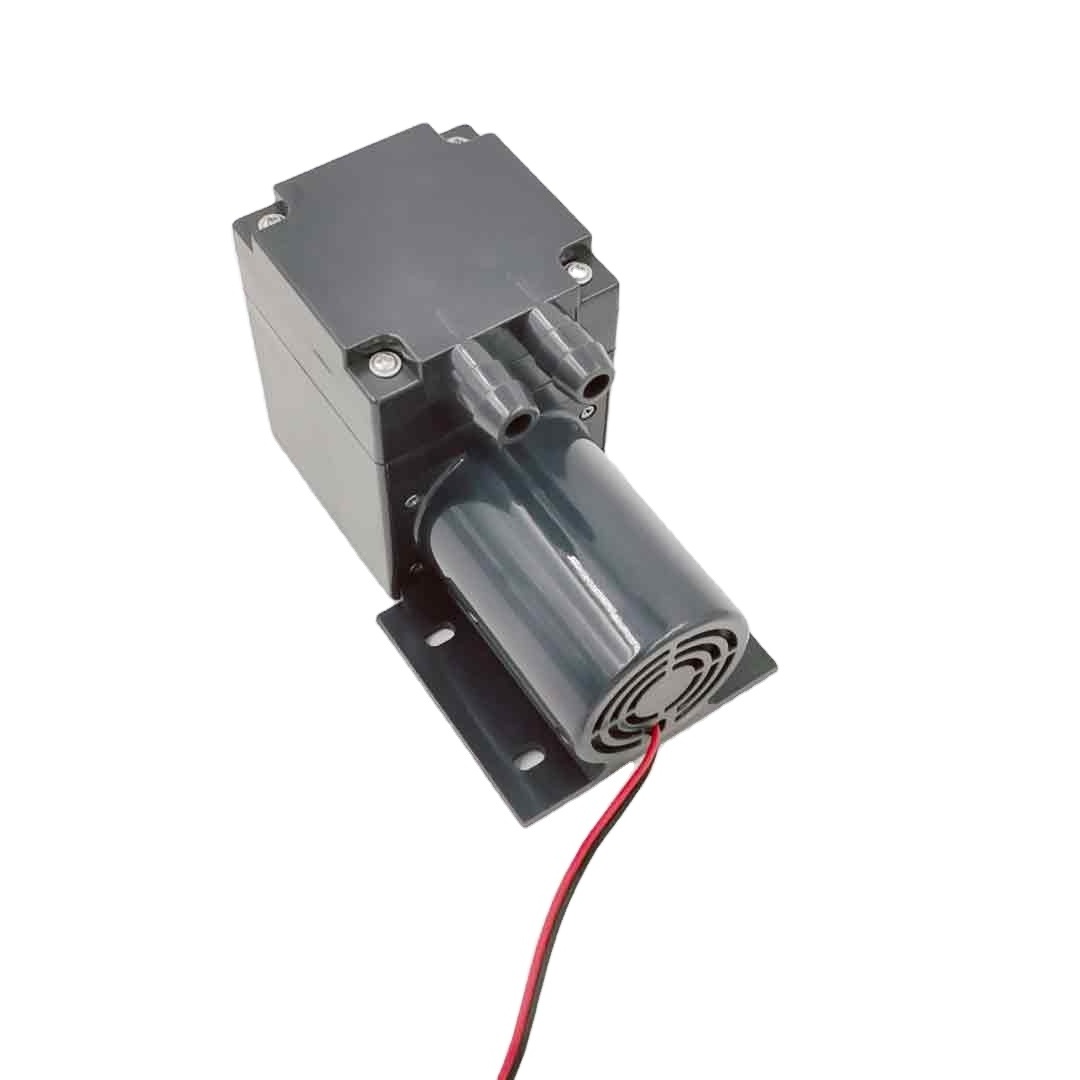

*Small vacuum pump 6V 's picture
*Configuration diagram of small vacuum pump 6V
Packaging:
CTN/PCS: 20PCS
G.W. : 14.5 KG
DIMENSION : 47 * 31 * 25 CM
Picture ’ s about the packaging:
