- Product Details
- {{item.text}}
Quick Details
-
Applicable Material:
-
tablet
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*660*700mm
-
Weight (KG):
-
80
-
Power (kW):
-
0.35
-
Product name:
-
Tablet Counting Machine
-
Applicable target:
-
3-40mm Candy
-
Material:
-
Stainless Steel 304
Quick Details
-
Capacity (bottle/min):
-
1000 - 1800 bottle/min
-
Bottle Capacity (pcs/bottle):
-
50
-
Capacity (pcs/h):
-
108000 pcs/h
-
Applicable Material:
-
tablet
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*660*700mm
-
Weight (KG):
-
80
-
Power (kW):
-
0.35
-
Product name:
-
Tablet Counting Machine
-
Applicable target:
-
3-40mm Candy
-
Material:
-
Stainless Steel 304

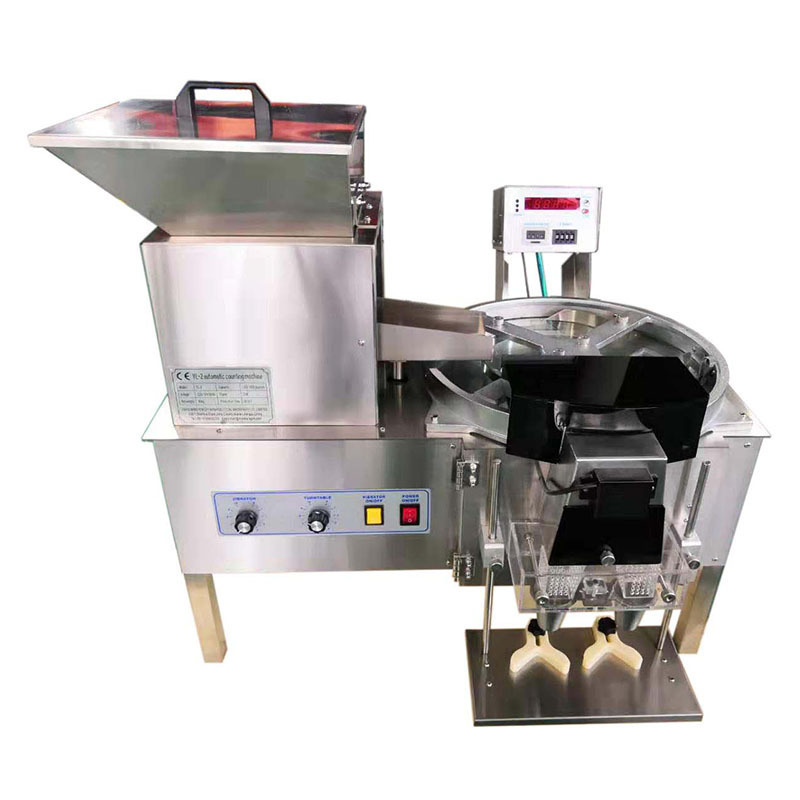

Automatic Counting Machine
The machine is a semiautomatic electronic counting and filling machine. The operation is very simple, and the accuracy is also very high.
Features
1.The number of pellet counted can be arbitrarily set up among 0~9999.
2. Stainless steel material for whole body can meet with GMP specification.
3. Easy to operate and no special training required.
4. Precision pellet count with special electrical eye protection device.
5. Rotary counting design with fast and smooth operation.
6. The rotary pellet counting speed can be adjusted with automatic speed regulation according to the bottle putting speed manually.
7. The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.
8. Vibration feeding design, the vibration frequency of the pellet hopper can be adjusted with automatic speed regulation based on the needs of the pellet carried.
YL-2: once start with one bottle and automatically to count the next when finished, and
Easy to pick up and put down the bottle by hand.
YL-4: once start with two bottles and automatically to count the next two bottles when
Finished, easy to pick up and put down the bottle by two hands and the speed is
One time faster.
Main Technical Data
|
Model |
YL-2 |
YL-4 |
YL-2A |
|
Capacity |
1000-1800 pcs/min |
2000-3500 pcs/min |
500-1500 pcs/min |
|
Power supply |
AC, 220V/50-60HZ 1 phase or customized |
||
|
Net weight |
80 kg |
120 kg |
50 kg |
|
Overall size( L x W x H) |
760x660x700 mm |
920x750x810 mm |
427x327x525 mm |
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5.we also can provide training service which help opeators handle the machine well.
