Quick Details
-
Application:
-
Mine
-
Color:
-
Customer's Request
-
After-sales Service Provided:
-
Overseas Service Center
-
Certificate:
-
ISO CE
-
Advantage:
-
High Working Effiency
-
Model:
-
XB-2000
-
Instalation:
-
Engineer Guide
-
Dimension:
-
2380*2162*2850
-
After-sales service:
-
Service Machinery
-
Name:
-

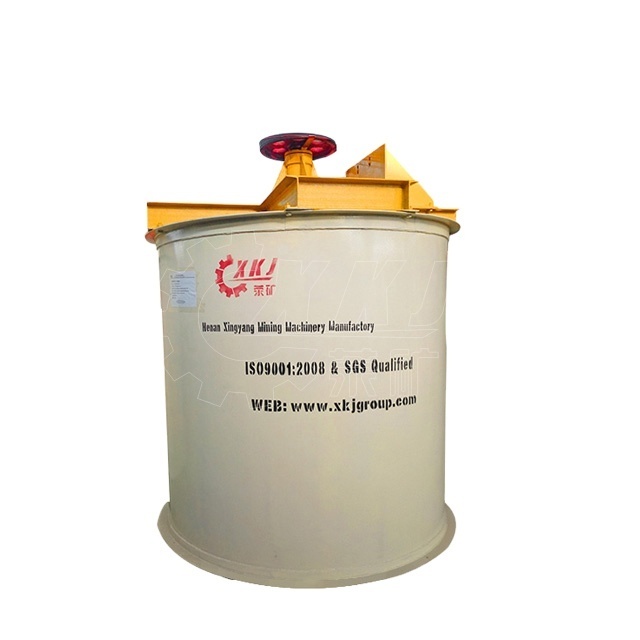

Agitation Tank
Quick Details
-
Weight (KG):
-
2300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ GROUP
-
Application:
-
Mine
-
Color:
-
Customer's Request
-
After-sales Service Provided:
-
Overseas Service Center
-
Certificate:
-
ISO CE
-
Advantage:
-
High Working Effiency
-
Model:
-
XB-2000
-
Instalation:
-
Engineer Guide
-
Dimension:
-
2380*2162*2850
-
After-sales service:
-
Service Machinery
-
Name:
-
Agitation Tank
This machine is from motor v-belts transmission and dynamic impeller rotation, drugs and pulp fully mixing, increase the potion effect reaction time strengthen drug reactions quality necessary equipment, the machine is suitable for selected mining, is indispensable processing equipment also used for all kinds of the chemical industry’s bad mixing. Mixing barrel applicable to all kinds of metallic ores, mainly used for flotation before mixing, is fully mixing potions to pulp, it can also be used for other non-metallic minerals agitation. It USES in concentration is not more than 30% (by weight calculation) fixed the granularity of less than 1mm ingredients. Its form is flat bucket radiation circulation spiral impeller mechanical agitation type.
|
Standard Model |
XB-500 |
XB-1000 |
XB-1500 |
XB-2000 |
XB-2500 |
XB-3000 |
|
|
Effective Volume(m3) |
0.124 |
0.58 |
2.2 |
5.46 |
11.2 |
19.1 |
|
|
Impeller |
Diameter(mm) |
150 |
240 |
400 |
550 |
650 |
700 |
|
Speed(r/min) |
1000 |
530 |
320 |
230 |
280 |
210 |
|
|
Motor |
Model |
Y100L-4 |
Y132S-6 |
132M-6 |
Y160M-6 |
180L-6 |
Y225S-8 |
|
Power(kw) |
1.5 |
3 |
5.5 |
7.5 |
15 |
18.5 |
|
|
Internal Size of Trough |
Diameter(mm) |
Φ500 |
Φ1000 |
Φ1500 |
Φ2000 |
Φ2500 |
Φ3000 |
|
Height(mm) |
750 |
1000 |
1500 |
2000 |
2500 |
3000 |
|
|
Dimensions |
Length (mm) |
670 |
1130 |
1750 |
2380 |
3028 |
3610 |
|
Width(mm) |
351 |
1130 |
1642 |
2162 |
2640 |
3266 |
|
|
Height(mm) |
1286 |
1491 |
2186 |
2846 |
3543 |
4326 |
|
|
Weight(t) |
0.375 |
0.685 |
1.2 |
1.65 |
3.462 |
4.292 |
|
