Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19D-10E/S-20A
-
Product name:
-
20A High current button switch
-
Material:
-
Stainless steel
-
LED color:
-
Default Blue ( or Red Green Yellow Orange White Purple )
-
LED Voltage:
-
Default 12V ( or 3V / 6V / 12V / 24V / 36V / 110V / 220V )
-
Emitting Type:
-
Ring symbol
-
Mounting hole diameter:
-
19mm
-
Voltage:
-
250vac dc
-
Operation type:
-
Momentary
-
Head shape:
-
Flat head
-
Electrical Life:
-
More Than 500000 Times
-
Certification:
-
ROHS CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
20A
-
Max. Voltage:
-
250V AC/DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19D-10E/S-20A
-
Product name:
-
20A High current button switch
-
Material:
-
Stainless steel
-
LED color:
-
Default Blue ( or Red Green Yellow Orange White Purple )
-
LED Voltage:
-
Default 12V ( or 3V / 6V / 12V / 24V / 36V / 110V / 220V )
-
Emitting Type:
-
Ring symbol
-
Mounting hole diameter:
-
19mm
-
Voltage:
-
250vac dc
-
Operation type:
-
Momentary
-
Head shape:
-
Flat head
-
Electrical Life:
-
More Than 500000 Times
-
Certification:
-
ROHS CE
Order Note：
Our
RTS order
is for
12V Blue
Led color,Momentary
,if you need other color or Voltage , pls inform us by message,tks!
Momentary : Push--ON, release--the actuator surface spring to original position;
LED Color : Default Blue (Or Red / Green / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / 36V / 110V / 220V , pls inform us by message );
LED Color : Default Blue (Or Red / Green / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / 36V / 110V / 220V , pls inform us by message );
Product Display

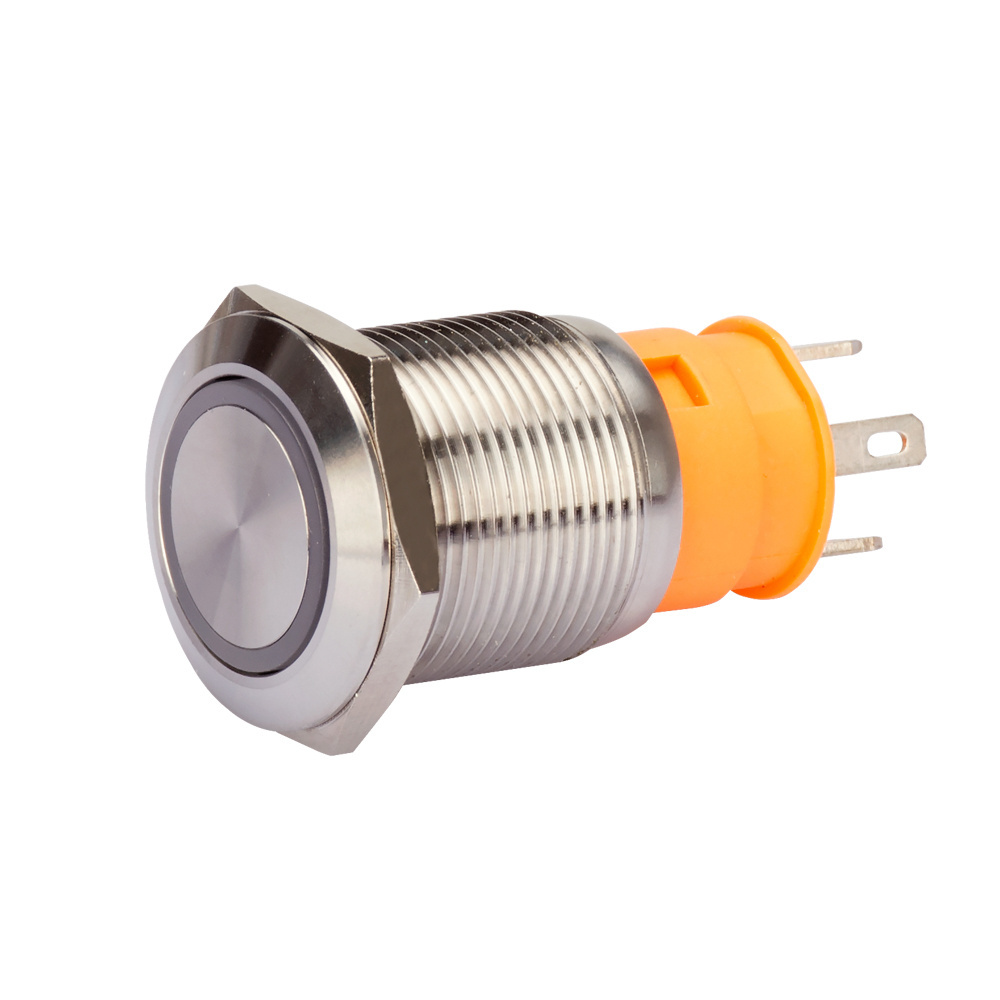

High Current 12V blue light 4Pin Momentay waterproof 20amp led 19 mm metal push button switch
★All our products have passed the CE, CCC, ROHS etc. certifications
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
Model Number
|
LA19D-10E
|
|
Brand Name
|
YUESHUN
|
|
Mounting Hole Size
|
19mm
|
|
Max Switch Rating
|
20A / 250V DC
|
|
Contact Configuration
|
1NO (Normal Open)
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Flat Head
|
|
Terminal Type
|
4 Pin Terminal
|
|
LED Type
|
Ring LED Type
|
|
LED Color
|
Default Blue(Or Red / Green / Yellow / Black / White / Orange / Purple available.)
|
|
LED Voltage
|
Default 12V (or 3V / 6V/ 24V / 36V/ 110V / 220V available.）
|
|
Body Material
|
Stainless Steel
|
|
Button Material
|
Stainless Steel
|
|
Base Material
|
PBT
|
|
Contact Material
|
Silver Alloy
|
|
IP Degree
|
IP67
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃～+55℃
|
|
Mechanica Life
|
More than 500,000 cycles
|
|
Electrical Life
|
More than 100,000 cycles
|
|
Panel Thickness
|
1-10mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 3-5N
|
|
Operating Distance
|
About 0.3mm
|
Wire Connection Reference
