Quick Details
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
1650*940*1030 mm
-
Weight:
-
150 KG
-
Name:
-
Gemini Gold Shaker Table
-
Feeding size:
-
0-2 mm
-
Capacity:
-
30 kg/h
-
Feeding density:
-
50%
-
Water feeding:
-
12 l/min
-
Engine:
-
Motor
-
Color:
-
Blue Or As Your Request
-
Material:
-
PU
-
Installation:
-
Provide online service
-
Application:
-
Gold mining
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Jiangxi Hengchang
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
1650*940*1030 mm
-
Weight:
-
150 KG
-
Name:
-
Gemini Gold Shaker Table
-
Feeding size:
-
0-2 mm
-
Capacity:
-
30 kg/h
-
Feeding density:
-
50%
-
Water feeding:
-
12 l/min
-
Engine:
-
Motor
-
Color:
-
Blue Or As Your Request
-
Material:
-
PU
-
Installation:
-
Provide online service
-
Application:
-
Gold mining
High Quality Gold Mining Machinery Small Scale Mineral Separator Placer Gold Gravity Concentrator Gemini Gold Shaker Table
Hengchang machinery gemini shaker table is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. When you find us, you find one best mining machinery manufacturer.

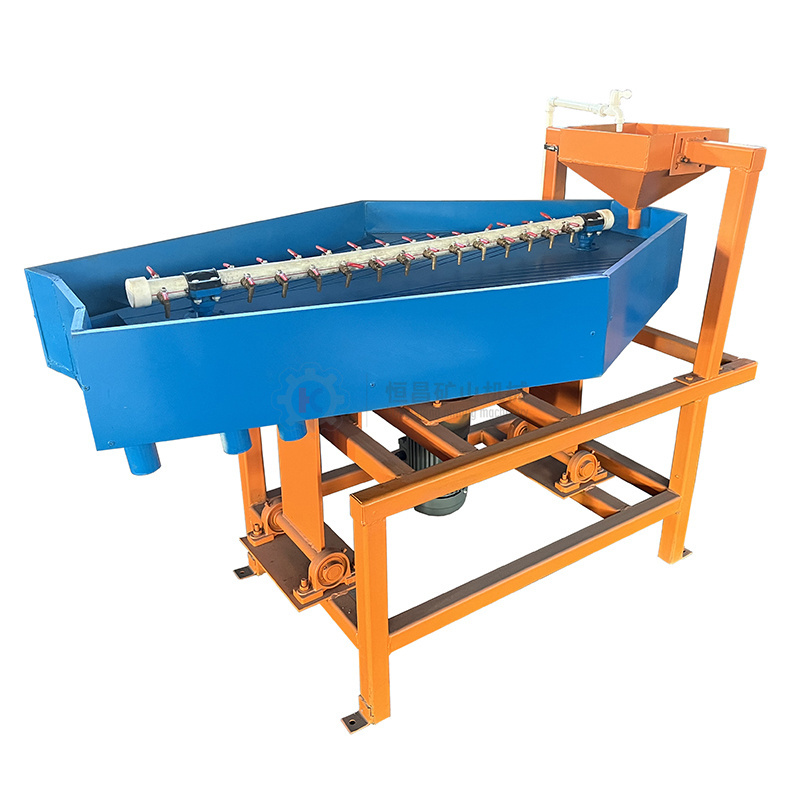

Gemini Gold Shaker Table
Introduction:
Gemini Table, also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type.
Gemini Table, also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type.
Gemini Gold Shaker Table Working Principle:
The gemini table has been specifically designed for the recovery of fine gold to a directly smeltable concentrate. The direct drive system incorporates a geared motor, driving a crank connected to the table deck. The crank includes a spring connection system to absorb overrun. The bump stop system provides a fine-tuning mechanism. Table tuning is achieved by adjustment of a single screw.
|
Model
|
GT60
|
GT250
|
GT1000
|
|
Operating dimensions A(mm)
|
1490
|
2180
|
2800
|
|
Operating dimensions B(mm)
|
1160
|
1350
|
1365
|
|
Operating dimensions C(mm)
|
670
|
700
|
916
|
|
Operating dimensions D(mm)
|
897
|
1340
|
1750
|
|
Operating dimensions E(l/min) water flow
|
12
|
25
|
38
|
|
Net weight(kg)
|
145
|
220
|
320
|
|
Approximate packed dimensions L(mm)
|
1420
|
2200
|
2800
|
|
Approximate packed dimensions W(mm)
|
1100
|
1500
|
1900
|
|
Approximate packed dimensions H(mm)
|
1210
|
1500
|
1500
|
|
Packed weight(kg)
|
250
|
420
|
540
|
Gold Shaker Table in Tanzania
For separating rock gold
Gold Shaker Table in Australia
For
separating
rock gold
Shaking Table in India
For concentrating manganese ore
Shaking Table in Nigeria
For
concentrating
tantalum ore
Shaker Table in Morocco
For
lead-zinc ore
separation
Shaker Table in Myanmar
For tungsten ore separation
Gold Shaking Table in Vietnam
For chrome ore concentration
Gold Shaking Table in Indonesia
For alluvial tin ore concentration
