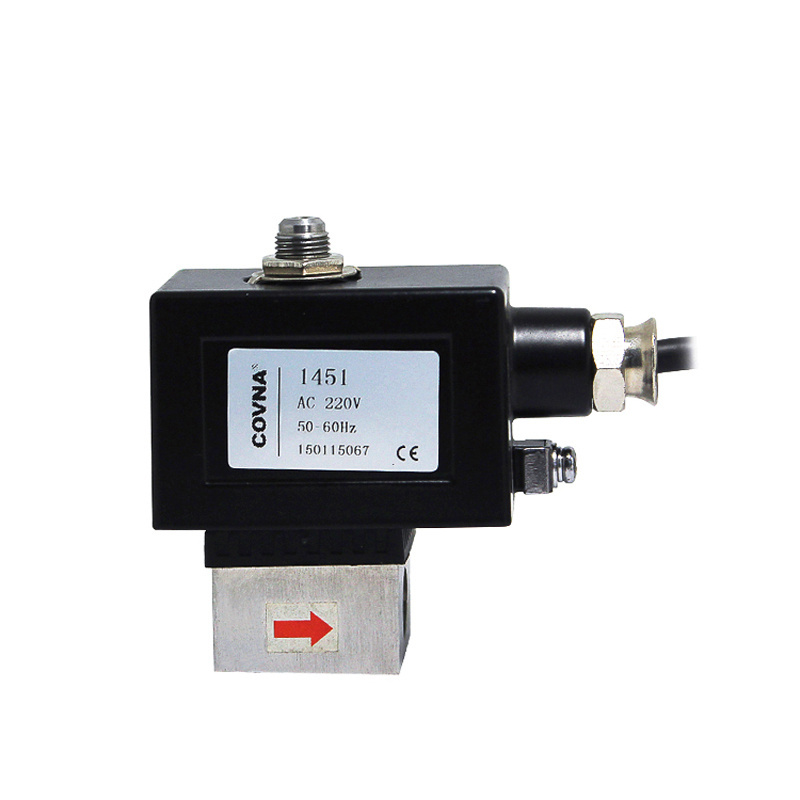

CONVA 12V 24V Coil Explosion Proof 1/2'' High Pressure Mini Solenoid Valve

CONVA 12V 24V Coil Explosion Proof 1/2'' High Pressure Mini Solenoid Valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HK02 Solenoid Valve For Vacuum

Brand Name:: COVNA

Item:: Solenoid Valve For Vacuum

Position:: 2 way

Orifice(mm):: 5.0, 8.0, 12.0

Voltage:: DC2V, 24V. AC24V, 120V, 240V/6-HZ 110V, 220C/50Hz

Certificate:: CE RoHS

Type:: Normally closed or normally opened, SOLENOID VALVES

Connection:: G, NPT, BSP, FLANGE

Seal:: NBR, EDPM

Customized:: Yes

Quick Details

Port Size:: 1/4" to 1/2"

Warranty:: 1 year, 12 months

Place of Origin:: Guangdong, China

Model Number:: HK02 Solenoid Valve For Vacuum

Brand Name:: COVNA

Item:: Solenoid Valve For Vacuum

Position:: 2 way

Orifice(mm):: 5.0, 8.0, 12.0

Voltage:: DC2V, 24V. AC24V, 120V, 240V/6-HZ 110V, 220C/50Hz

Certificate:: CE RoHS

Type:: Normally closed or normally opened, SOLENOID VALVES

Connection:: G, NPT, BSP, FLANGE

Seal:: NBR, EDPM

Customized:: Yes

Specification

COMPACT STRUCTURE

HIGH ACCURACY

WATER-PROOF

LONG SERVICE LIFE

Item	12V 24V Coil Explosion Proof High Pressure Solenoid Valve
Size Range	1/4", 3/8", 1/2"
Operating Pressure	Low Pressure, 0.3 to 10.0MPa
Number of Ways	2/2 Valve, Two Ways Two Positions
Valve Operation Type	Normally Closed (NC), Opens When Energized
Body Material	Stainless Steel are Available
Sealing Material	NBR, EPDM, FKM (VITON), PTFE
Structure	Direct Acting
End Connection	Female Thread
Coil Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.	Range from -20 to +60°C (-4 to 140°F)
Protection Class	IP67, Explosion-protected Construction are Available
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

General Information on Elastomer Materials Frequently Used NBR (Buna "N", Nitrile) It has a useful temperature range of 0°F to 180°F (-18°C to 82°C). EPDM (Ethylene Propylene) It has a useful temperature range of -10°F to 212°F (-23°C to 100°C). FKM (Viton) It has a useful temperature range of 0°F to 248°F (-18°C to 120°C). PTFE (Teflon) PTFE is considered more a plastic than a resilient-type material. They're virtually unattacked by any fluid. Their temperature usage has ranged from discs for cryogenic valves to discs for steam valves. They're not easily fabricated and are known to have "cold flow" characteristics which may contribute to objectionable leakage, particularly on gases.

Hot Sale Products

2W31 Brass Solenoid Valve

4V210-08 Solenoid Valve

2W31 SS Solenoid Valve

Anti Corrosion Solenoid Valve

High Pressure Solenoid Valve

Flange Butterfly Valve

About COVNA

COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.

#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE

QUALITY CONTROL

COVNA havs invested in quality assurance, state-of-

the-art machining and testing facilities in order to assist customers in safely controlling their processes.

FIVE CHECKS IN THE WHOLE PROCESS

All products have to pass strict inspection before they go out, covering raw material check, in production check, semi-finished product check, sampling check and pre-delivery inspection.

Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

Packing

Packing: Electric valves packed with foam in carton.
Delivery Time: 7-10 working days after payment confirmed.
