- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V/woodworking machinery
-
Dimension(L*W*H):
-
3200x3150x900mm
-
Application:
-
panel cutting
-
Weight (KG):
-
750 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3100mm
-
Keyword:
-
sliding table saw
-
Height of Cut:
-
80mm
-
Scoring Saw Blade Diameter:
-
120mm
-
Scoring Saw Blade Speed:
-
7000rpm
-
Scoring Spindle Diameter:
-
20mm
-
Power(W):
-
5.5KW
-
Sliding Table Size:
-
3200x375mm
-
Saw Blade Diameter:
-
300mm
-
Saw Spindle Diameter:
-
30mm
-
Weight:
-
750kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZICAR
-
Usage:
-
woodworking
-
Voltage:
-
220V/380V/woodworking machinery
-
Dimension(L*W*H):
-
3200x3150x900mm
-
Application:
-
panel cutting
-
Weight (KG):
-
750 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3100mm
-
Keyword:
-
sliding table saw
-
Height of Cut:
-
80mm
-
Scoring Saw Blade Diameter:
-
120mm
-
Scoring Saw Blade Speed:
-
7000rpm
-
Scoring Spindle Diameter:
-
20mm
-
Power(W):
-
5.5KW
-
Sliding Table Size:
-
3200x375mm
-
Saw Blade Diameter:
-
300mm
-
Saw Spindle Diameter:
-
30mm
-
Weight:
-
750kg
Product Description

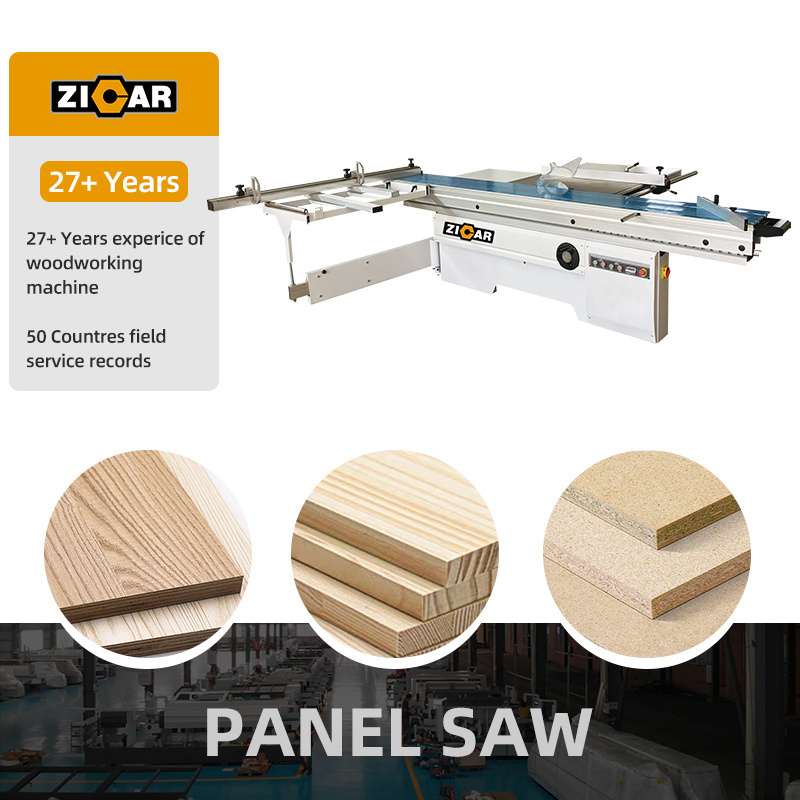

ZICAR woodworking machinery stable quality panel saw machine sliding table saw wood panel saw for carpentry wood saw machines
ZICAR sliding table saw advantages：
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.
|
Model
|
MJ6132YIIH
|
|
|
|
|||
|
Sliding Table Size
|
3200x375mm
|
|
|
|
|||
|
Length of cut
|
3100mm
|
|
|
|
|||
|
Height of Cut
|
80mm (45°Max 55mm)
|
|
|
|
|||
|
Saw Blade Diameter
|
300mm
|
|
|
|
|||
|
Scoring Blade Diameter
|
120mm
|
|
|
|
|||
|
Main Saw Blade Speed
|
4000/6000rpm
|
|
|
|
|||
|
Scoring Saw Blade Diameter
|
7000rpm
|
|
|
|
|||
|
Saw Spindle Diameter
|
30mm
|
|
|
|
|||
|
Scoring Spindle Diameter
|
20mm
|
|
|
|
|||
|
Main Motor
|
4.0kw or 5.5kw
|
|
|
|
|||
|
Scoring Saw Motor
|
0.75kw
|
|
|
|
|||
|
Main Saw Blade Tilting Angle
|
45°-90°
|
|
|
|
|||
|
Weight
|
750kg
|
|
|
|
|||
|
Packing Size
|
2050*1110*1130mm
3250*425*290mm |
|
|
|
|||
Product Details
With manual rise/fall of sawblade
Europe type sliding table
Master seat
Pallet rack
Saw shaft
Electirc part
Manual quick-action clamp
Angle ruler
Tool box
Application Field
Sign Making
Door Making
Furniture Making
Cabinet Making
MDF
PLYWOOD
SOLID WOOD
PARTICLE BOARD
PVC
ABS
