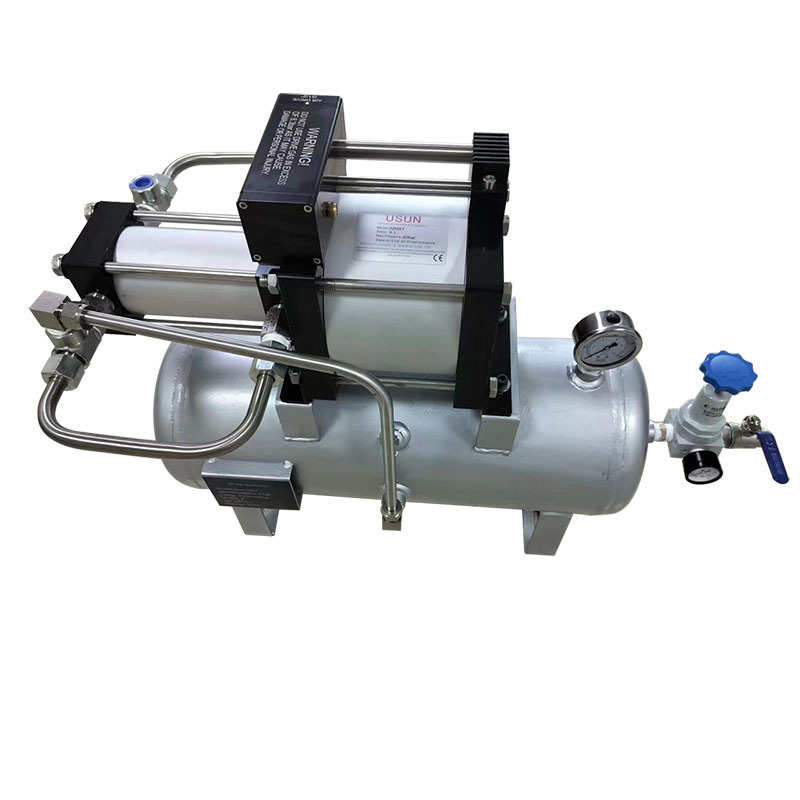

USUN Model: AB05T-20L 20-40 Bar CE approved air pressure booster pump system for fiber laser cutting machine

WHY CHOOSE OUR  PUMP?

This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.

These air booster pump offer a flexible and efficient source for delivering high pressure gases.

1 . Costing savings: An alternative to the purchase  of High Pressure compressor ,our air amplifiers are

Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify

and can mounted in any position

2 . High Flow rates at High pressure : W hen High flow rates at high pressure are needed ,the Air booster

can charge a receiver to an even higher pressure level ,thus storing a volume of  air aviable for rapid release at a constant

pressure through a pressure reducing valve

Usun Model:AB05T-20L 5:1 Ratio CE Approved  air pressure booster system for fiber laser cutting machine

It C an be used for pressure testing  , valve actuators ,Air drills ,Blow moulding pe t ,Increase

pressure capacity ,for air cylinder charging  .

Product Description

Item Model	AB05T-20L  CE approved ai  pressure booster  system with 20 L tank and pressure regulator
Action type	double  acting ,single air driven
Air driven pressure	3-8 Bar
Dealing with air source	Compressed and dry air and air regulator on air driven port
Lubrication	Yes
Operating temperature	-4-65 degree for air driven section and Maximum temperature for air barrel ection is not more than 115 degrees
Theory of operation	The Air booster consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each air barrel end contains high pressure inlet and outlet check valves

Product features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable output pressure and flow capability

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. Wide range of models and controls and o[tions

6.Seals system designed for long working life,No airline lubricated required

7. Wide range of standard and customized systems

Main technical parameter

PA= Air driven pressure   PI=Inlet pressure  Po=Outlet pressure

Those data is theoretical and it is just for reference  .

Product outview drawing
