Quick Details
-
Lift Speed:
-
5m
-
Rated Volt (V):
-
AC 220/230v;50/60Hz
-
Input Power (W):
-
1200
-
Rated Capacity(KG):
-
600
-
Lifting Speed (m):
-
5
-
Lifting Height (m):
-
6
-
Qty/CTNPCS:
-
2
-
"Packing Size:
-
45*34*27
-
G.W/N.W (KG):
-
35/34
-
MMQ:
-
1 pieces
-
Product name:
-
Tripod Electric Hoist 220V pa400 Mini Electric Wire Rope Hoist
-
Certification:
-
ISO,CE,S GS,BV,GOST,TUV,RTN
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Finework
-
Lift Speed:
-
5m
-
Rated Volt (V):
-
AC 220/230v;50/60Hz
-
Input Power (W):
-
1200
-
Rated Capacity(KG):
-
600
-
Lifting Speed (m):
-
5
-
Lifting Height (m):
-
6
-
Qty/CTNPCS:
-
2
-
"Packing Size:
-
45*34*27
-
G.W/N.W (KG):
-
35/34
-
MMQ:
-
1 pieces
-
Product name:
-
Tripod Electric Hoist 220V pa400 Mini Electric Wire Rope Hoist
-
Certification:
-
ISO,CE,S GS,BV,GOST,TUV,RTN

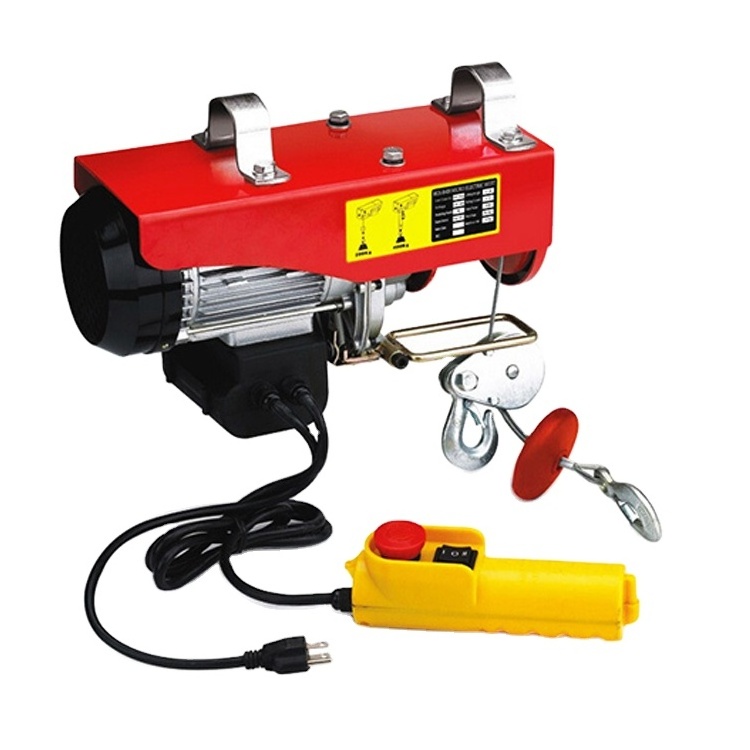

Tripod electric hoist 220V pa400 mini electric wire rope hoist
-
Mini electric hoist is also called civil electric hoist, a kind of lifting tool for lifting hoist .
-
Simple structure, easy to install, small and exquisite, single-phase electric power is used as the power source.
-
It is suitable for various occasions, and can raise the goods below 1000kg, which is especially suitable for lifting heavy goods from the lower floors to high floors of tall buildings.
-
It adopts 220V civil power supply, especially suitable for daily use, industrial production line, freight logistics etc.
1.Capacity: ranges from 100kg-1000kg
2.Small, convenient hoist for lifting often used for home, mall, construction, warehouse, workshop, harbors, airport and so on
3.100% pure copper motor, good cooling and durable
4.With emergency knob for the handle
5.With upper limit and lower limit
6.Anti-rotary wire rope
7.Longer stator and rotor
8.Thick shell to protect the mini hoist
|
Model |
Rated Volt
|
Input Power
|
Rated Capacity
|
Lifting Speed
|
Lifting Height
|
G.W/N.W
|
|
PA200B |
AC
|
480 |
100 |
10 |
12 |
22.5/22 |
|
200 |
5 |
6 |
||||
|
PA250B |
510 |
125 |
10 |
12 |
23/22 |
|
|
250 |
5 |
6 |
||||
|
PA300B |
600 |
150 |
10 |
12 |
23.5/23 |
|
|
300 |
5 |
6 |
||||
|
PA400B |
950 |
200 |
10 |
12 |
33/22 |
|
|
400 |
5 |
6 |
||||
|
PA500B |
1020 |
250 |
10 |
12 |
33.5/22.5 |
|
|
500 |
5 |
6 |
||||
|
PA600B |
1200 |
300 |
10 |
12 |
35/34 |
|
|
600 |
5 |
6 |
||||
|
PA800B |
1300 |
400 |
8 |
12 |
38/38 |
|
|
800 |
4 |
6 |
||||
|
PA1000B |
1600 |
500 |
8 |
12 |
32/31 |
|
|
1000 |
4 |
6 |
Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing, marketing, installation and maintenance; it is also one of the most influential brand in Chinese crane industry.
Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc.
Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc.
Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.
1.Is your products customized?
Yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
The more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
4.The space of my workshop is limited, can the crane is ok for me?
For low headroom workshop, we have special products. The details dimension our engineer will be design for you.
5.Do your side can provide lifting tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab...
