BL03 and WF03 is tilted-structure designed with appearance patent.
BL03 supports BLE(TTLOCK) by default, WiFi gateway is optional. WF03 supports WIFI (Tuya) by default
The identification ways include password. IC card, smart phone app.
Emergency power back-up(USB port)
The lock supports firmware update, and software functions can be expanded through firmware update.
The lock is suitable for and widely used in commercial office, residential, government departments, army, banks, hospitals, etc.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XPOTECH
-
Model Number:
-
BL03
-

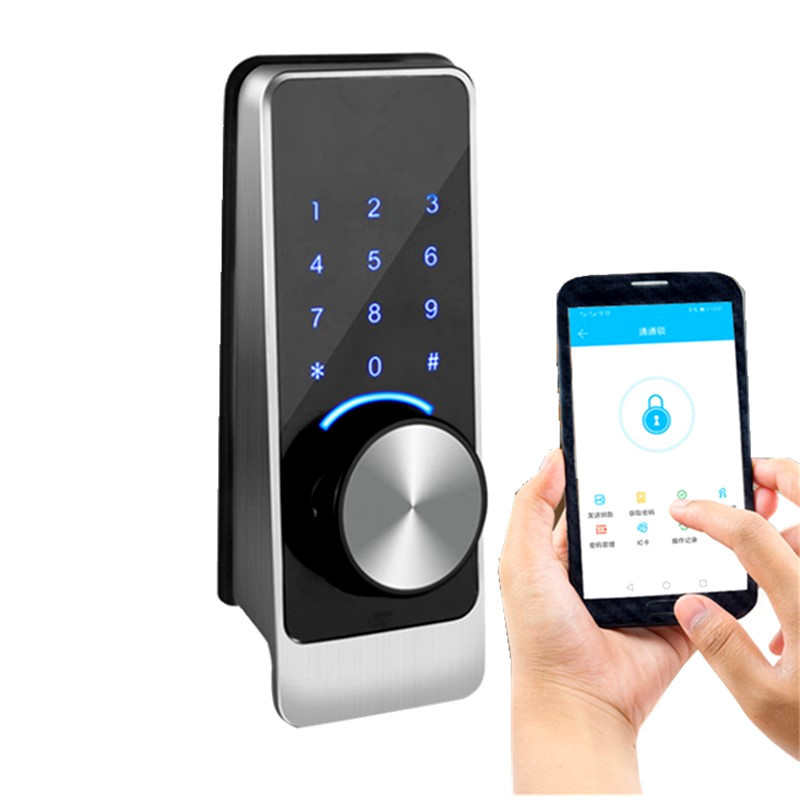

Product name:
-
Smart Fingerprint Door Lock
-
Unclock Ways:
-
Phone App, Password, Keys, M1 Card
-
Dimension:
-
154*63*24mm
-
Communication:
-
BLE / WIFI
-
Application:
-
Office, Home, Apartment
-
System:
-
Android 4.3 / IOS 7.0 above
-
APP name:
-
TT Lock / Tuya
-
Type:
-
Single latch; surface mounted type
-
Door thickness:
-
35 to 45mm
-
Certification:
-
CE
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door, Brass door
-
Network:
-
wifi, bluetooth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPOTECH
-
Model Number:
-
BL03
-
Product name:
-
Smart Fingerprint Door Lock
-
Unclock Ways:
-
Phone App, Password, Keys, M1 Card
-
Dimension:
-
154*63*24mm
-
Communication:
-
BLE / WIFI
-
Application:
-
Office, Home, Apartment
-
System:
-
Android 4.3 / IOS 7.0 above
-
APP name:
-
TT Lock / Tuya
-
Type:
-
Single latch; surface mounted type
-
Door thickness:
-
35 to 45mm
-
Certification:
-
CE
Recommend Products
BLAC1 Card Access Control
Non Waterproof
IC Card&Code&APP
200 IC Card Capacity
150 Custom Code
BLAC2 Card Access Control
IP66 Waterproof
IC Card&Code
&APP
20000 IC Card Capacity
150 Custom Code
BLAC2-F Fingerprint Access Control
IP66 Waterproof
Fingerprint&IC Card&Code
&APP
100 Fingerprint; 20000 IC Card Capacity
150 Custom Code
BL08-F Fingerprint Lock
Fingerprint&IC Card&Code&APP&Keys
100 Fingerprint; 100 IC Card Capacity
150 Custom Code
Products Description
Product Paramenters
|
Power supply
|
4.5 ~ 6.5V(4 pcs AA alkaline batteries)
|
|
|
|
BLE standard
|
4.0 BLE (adopt Nordic 51822 chip)
|
|
|
|
Support phone system
|
Android 4.3/IOS 7.0 above
|
|
|
|
Alarm voltage
|
4.8V ±0.2V
|
|
|
|
Static current
|
≤60µA
|
|
|
|
Dynamic current
|
≤200 mA
|
|
|
|
Operating temperature
|
-40 ~ 70℃
|
|
|
|
Operating humidity
|
20 ~ 93%RH
|
|
|
|
Opening time
|
around 1.5 seconds
|
|
|
|
FAR(False Acceptance Rate)
|
<0.001%
|
|
|
|
FRR(False Reject Rate)
|
<1.0%
|
|
|
|
Mobile phone app
|
no limitation
|
|
|
|
Card (M1 card) capacity
|
100 pcs
|
|
|
|
TTLock APP Password Types
|
One-time password; Timed password; Permanent password; Cyclic password; Customize Password (150pcs)
|
|
|
|
Tuya APP Password Types
|
Online Temporary Code; Offline Temporary Code; One Time Code (Valid for 6 hours,can only be used once)
|
|
|
What you can do with our TTLock smart phone app
WIFI Gateway Optional for TTLock BLE Lock
What can you do with our Tuya smart phone app
