Quick Details
-
Rated Lifting Moment:
-
920MM
-
Max. Lifting Height:
-
9.2mX0.7t
-
Span:
-
Spider Crane
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youxintong
-
Walking mode:
-
Two Speed
-
Usage:
-
Outdoor Construction Goods Lifting
-
Key words:
-
mini spider crane
-
Product name:
-
mini crane 3 ton
-
Color:
-
Customized Color Acceptable
-
Package size per unit product::
-
5600 * 900 * 1000cm
-
Walking Way::
-
Hydraulic Motor
-
Safety system::
-
Safe load moment limiter
-
Boom type::
-
Automatic 4 sections
-
Crane screen::
-
Intelligent display screen
Quick Details
-
Weight (KG):
-
3000
-
Application:
-
Working in small spaces., Building Construction
-
Rated Loading Capacity:
-
3T 5T 8T
-
Rated Lifting Moment:
-
920MM
-
Max. Lifting Height:
-
9.2mX0.7t
-
Span:
-
Spider Crane
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youxintong
-
Walking mode:
-
Two Speed
-
Usage:
-
Outdoor Construction Goods Lifting
-
Key words:
-
mini spider crane
-
Product name:
-
mini crane 3 ton
-
Color:
-
Customized Color Acceptable
-
Package size per unit product::
-
5600 * 900 * 1000cm
-
Walking Way::
-
Hydraulic Motor
-
Safety system::
-
Safe load moment limiter
-
Boom type::
-
Automatic 4 sections
-
Crane screen::
-
Intelligent display screen
Product Description

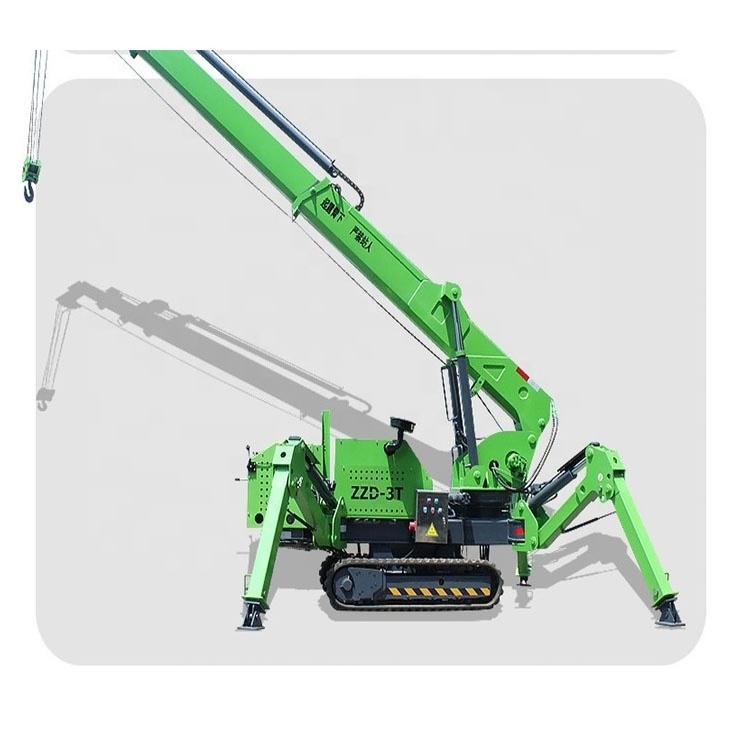

Spider crane features and advantages Spider crane is a unique design and performance of lifting machinery, its structure and performance characteristics are as follows: compact structure: Spider crane uses compact design, compact structure, small size, through strong, can adapt to a variety of different working environments. High flexibility: Spider crane is highly flexible and can be operated in a small space to achieve accurate positioning and handling!
Specification
|
Model
|
|
Yxt-3T
|
Yxt-5T
|
Yxt-8T
|
|
|
Specification
|
|
3t
|
5t
|
8t
|
|
|
Maximum working radius
|
|
8.83mx0.15t
|
14mx0.5t
|
16.5m
|
|
|
Maximum above-ground head
|
|
9.9mx0.7t
|
16.8m
|
|
|
|
Winch device
|
Hook Speed
|
0-8m/min(4 rope
|
12m/min(4 rope)
|
12m/min(4 rope)
|
|
|
|
Rope diameter
|
8mm-45m
|
11mm-80m
|
11mm-80m
|
|
|
Telescopic system
|
Boom Type
|
5-section boom, pentagonal structure
|
5-section boom, pentagonal structure
|
5-section boom, pentagonal structure
|
|
|
|
Boom Length/Time
|
3.1m-9.2m/20sec
|
12.3m/54sec
|
12.3m/54sec
|
|
|
Up and down
|
Boom Angle/Time
|
0°~78°/13sec
|
0°~78°/13sec
|
0°~78°/13sec
|
|
|
Slew system
|
Slew Angle/Speed
|
0-360°continuous/60sec
|
0-360°continuous/60sec
|
0-360°continuous/60sec
|
|
|
Traction system
|
Walking Way
|
Hydraulic motor drives
|
Hydraulic motor drives
|
Hydraulic motor drives
|
|
|
|
Walking Speed
|
0~2.5km/h
|
0~2.5km/h
|
0~2.5km/h
|
|
|
|
Grade Ability
|
(25°)36%
|
(25°)36%
|
(25°)36%
|
|
|
|
Operating characteristics
|
Manual operation, remote control
|
Manual operation, remote control
|
Manual operation, remote control
|
|
|
Transport parameters
|
L*W*H
|
2950*980*1560mm
|
5000*1500*1900mm
|
5000*1600*2180mm
|
|
|
|
Total weight
|
2700kg
|
6200kg
|
7200kg
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
