High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale
High quality Self-Cleaning Water Filter for sale

High quality Self-Cleaning Water Filter for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $2499
≥2 Sets
US $2459
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Type:
GJSCF-50
Material:
Stainless Steel 304/316L
Filter Type:
Wedge Wire Screen Filter
Filtration precision:
As request
Inlet/Outlet Size:
DN40 or as request

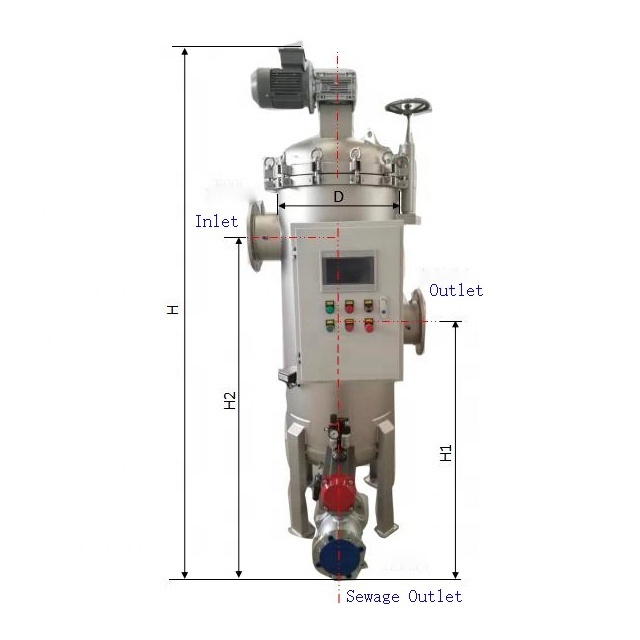

Height(H/mm):
1130
Filter House Diameter(mm):
219
Power Motor(KW):
0.55
Working Pressure(Bar):
<10

Quick Details

Weight (KG):
300
Place of Origin:
Henan, China
Product name:
Automatic Hydraulic Self Cleaning Water Filter for Honey Filtration
Type:
GJSCF-50
Material:
Stainless Steel 304/316L
Filter Type:
Wedge Wire Screen Filter
Filtration precision:
As request
Inlet/Outlet Size:
DN40 or as request
Height(H/mm):
1130
Filter House Diameter(mm):
219
Power Motor(KW):
0.55
Working Pressure(Bar):
<10
Product Description
Auto Self Cleaning Filter
The self-cleaning filter is a kind of precision equipment that uses the filter screen to directly intercept the impurities in the water, remove the suspended solids and particles in the water, reduce the turbidity, purify the water quality and reduce the
generation of system dirt, bacteria, algae and rust, so as to purify the water quality and protect the normal operation of other equipment in the system.
1
Water Inlet
2
Filter Screen
3
Stainless Steel Brush/Scraper
4
Water Oulet
5
Electric Motor
6
Drain Valve
7
Control Circuit
8
Pressure Different Valve
Specification
Type
Flow Rate (m³/h)
Inlet/Outlet Size
Slag Discharge Port
Diameter filter Housing
JYSCF-50
20
DN50
DN25
219
JYSCF-65
30
DN65
DN25
273
JYSCF-80
40
DN80
DN25
273
JYSCF-100
60
DN100
DN50
273
JYSCF-125
100
DN125
DN50
273
JYSCF-150
150
DN150
DN50
325
JYSCF-200
250
DN200
DN50
377
JYSCF-250
400
DN250
DN50
426
JYSCF-300
500
DN300
DN50
529
JYSCF-350
750
DN350
DN80
529
JYSCF-400
1000
DN400
DN80
600
JYSCF-450
1200
DN450
DN100
600
JYSCF-500
1500
DN500
DN100
700
JYSCF-600
2100
DN600
DN100
800
JYSCF-700
3000
DN700
DN200
900
Product Aplication
