Quick Details
-
Brand Name:
-
BKS
-
Voltage:
-
380v/415 or customized
-
Dimension(L*W*H):
-
3800*1200*1200mm
-
Weight (KG):
-
1800
-
Power (kW):
-
4.5KW
-
Product name:
-
Blade grinding machine
-
Maximum grinding length:
-
2300mm
-
Worktable size (L * W):
-
2270*180mm
-
working voltage:
-
380V
-
Wheel size:
-
200*100*32mm (optional)
-
Grinding accuracy:
-
≤0.5mm
-
speed of grinding head:
-
14m/min
-
Adjustable angle of grinding head:
-
±10°
-
Adjustable angle of worktable:
-
±90°
-
Machine Size:
-
3800*1200*1200mm
Quick Details
-
Wheel Size(mm):
-
200-250mm
-
Year:
-
2020
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BKS
-
Voltage:
-
380v/415 or customized
-
Dimension(L*W*H):
-
3800*1200*1200mm
-
Weight (KG):
-
1800
-
Power (kW):
-
4.5KW
-
Product name:
-
Blade grinding machine
-
Maximum grinding length:
-
2300mm
-
Worktable size (L * W):
-
2270*180mm
-
working voltage:
-
380V
-
Wheel size:
-
200*100*32mm (optional)
-
Grinding accuracy:
-
≤0.5mm
-
speed of grinding head:
-
14m/min
-
Adjustable angle of grinding head:
-
±10°
-
Adjustable angle of worktable:
-
±90°
-
Machine Size:
-
3800*1200*1200mm
Product Description

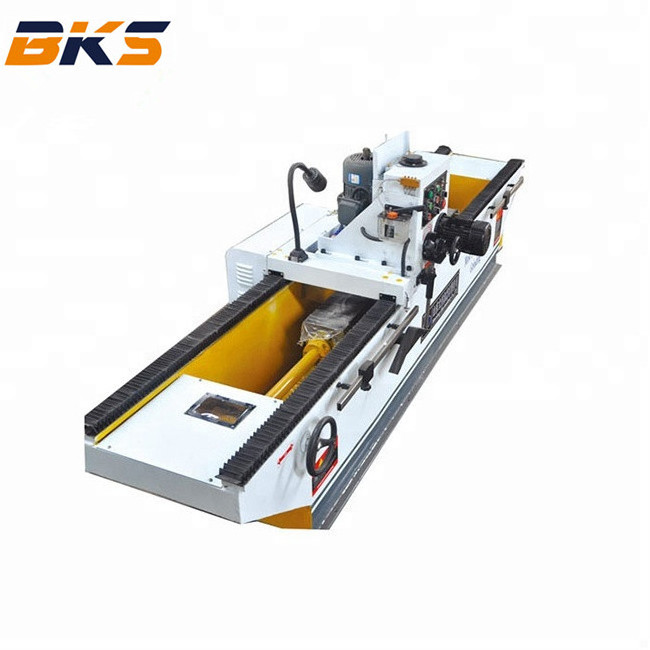

good quality automatic blade sharpening machine sharpening clipper blades machine for blades grinding
1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing
Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by
worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by
worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
Certifications
|
1
|
Model
|
BKS-5321
|
BKS-5322
|
BKS-5323
|
|
2
|
Maximum grinding length (mm)
|
1500
|
3000
|
3500
|
|
4
|
Electromagnetic sucker width (mm)
|
180
|
180
|
180
|
|
5
|
Grinding wheel speed (m/s)
|
15
|
15
|
15
|
|
5
|
Slide speed (m/s)
|
4-25m
|
4-25m
|
4-25m
|
|
7
|
Wheel size (mm)
|
200x100x32
|
200x100x32
|
200x100x32
|
|
8
|
Grinding motor power (kw)
|
4
|
4
|
4
|
|
9
|
Angle range of table
|
±90°
|
±90°
|
±90°
|
|
10
|
Grinding angle range
|
±30°
|
±30°
|
±30°
|
|
11
|
Machine weight (kg)
|
2100
|
2600
|
2800
|
|
12
|
overall dimensions (mm)
|
3200×1200×1300
|
4900×1200×1300
|
5600×1200×1300
|
|
13
|
Power
|
22kw
|
18.5kw
|
18.5kw
|
|
14
|
Thickness of steel pipe
|
45mm,30mm,20mm
|
50mm,30mm,20mm
|
45mm,30mm,20mm
|
