Quick Details
-
Model Number:
-
UNO-R3-Pro
-
Place of Origin:
-
China
-
Brand Name:
-
SYHY
-
D/C:
-
-
-
Package:
-
-
-
Function:
-
Compatible with Arduino programming
-
Utilized IC / Part:
-
CH340C
-
Number of A/D Converters:
-
-
-
Number of Bits:
-
-
-
Sampling Rate (Per Second):
-
-
-
Data Interface:
-
USB Type-C
-
Input Range:
-
6-12V (DC direct current)
-
Amplifier Type:
-
microcontroller
-
Output Type:
-
5V2.5A/3.3V1A
-
Max Output Power x Channels @ Load:
-
-
-
Voltage - Supply:
-
6-12V
-
Main Purpose:
-
-
-
Outputs and Type:
-
-
-
Power - Output:
-
-
-
Voltage - Output:
-
5V
-
Current - Output:
-
6-12V
-
Voltage - Input:
-
5V
-
Frequency - Switching:
-
-
-
Core Processor:
-
ATmega328
-
Operating System:
-
-
-
Platform:
-
ArduinolDE
-
Mounting Type:
-
-
-
Current - Output / Channel:
-
-
-
Features:
-
On board circuit protection
-
Channels per IC:
-
-
-
Regulator Type:
-
-
-
-3db Bandwidth:
-
-
-
Current - Supply (Main IC):
-
-
-
Voltage - Supply, Single/Dual (±):
-
-
-
Sensor Type:
-
-
-
Interface:
-
I2C
-
Sensitivity:
-
-
-
Module/Board Type:
-
singlechip
-
Maximum Number Of IC's:
-
-
-
Maximum Time:
-
-
-
Sensing Range:
-
-
Quick Details
-
Type:
-
Development Board
-
Series:
-
Development Board
-
Description:
-
Power supply enhancement version
-
Model Number:
-
UNO-R3-Pro
-
Place of Origin:
-
China
-
Brand Name:
-
SYHY
-
D/C:
-
-
-
Package:
-
-
-
Function:
-
Compatible with Arduino programming
-
Utilized IC / Part:
-
CH340C
-
Number of A/D Converters:
-
-
-
Number of Bits:
-
-
-
Sampling Rate (Per Second):
-
-
-
Data Interface:
-
USB Type-C
-
Input Range:
-
6-12V (DC direct current)
-
Amplifier Type:
-
microcontroller
-
Output Type:
-
5V2.5A/3.3V1A
-
Max Output Power x Channels @ Load:
-
-
-
Voltage - Supply:
-
6-12V
-
Main Purpose:
-
-
-
Outputs and Type:
-
-
-
Power - Output:
-
-
-
Voltage - Output:
-
5V
-
Current - Output:
-
6-12V
-
Voltage - Input:
-
5V
-
Frequency - Switching:
-
-
-
Core Processor:
-
ATmega328
-
Operating System:
-
-
-
Platform:
-
ArduinolDE
-
Mounting Type:
-
-
-
Current - Output / Channel:
-
-
-
Features:
-
On board circuit protection
-
Channels per IC:
-
-
-
Regulator Type:
-
-
-
-3db Bandwidth:
-
-
-
Current - Supply (Main IC):
-
-
-
Voltage - Supply, Single/Dual (±):
-
-
-
Sensor Type:
-
-
-
Interface:
-
I2C
-
Sensitivity:
-
-
-
Module/Board Type:
-
singlechip
-
Maximum Number Of IC's:
-
-
-
Maximum Time:
-
-
-
Sensing Range:
-
-
Introduction:

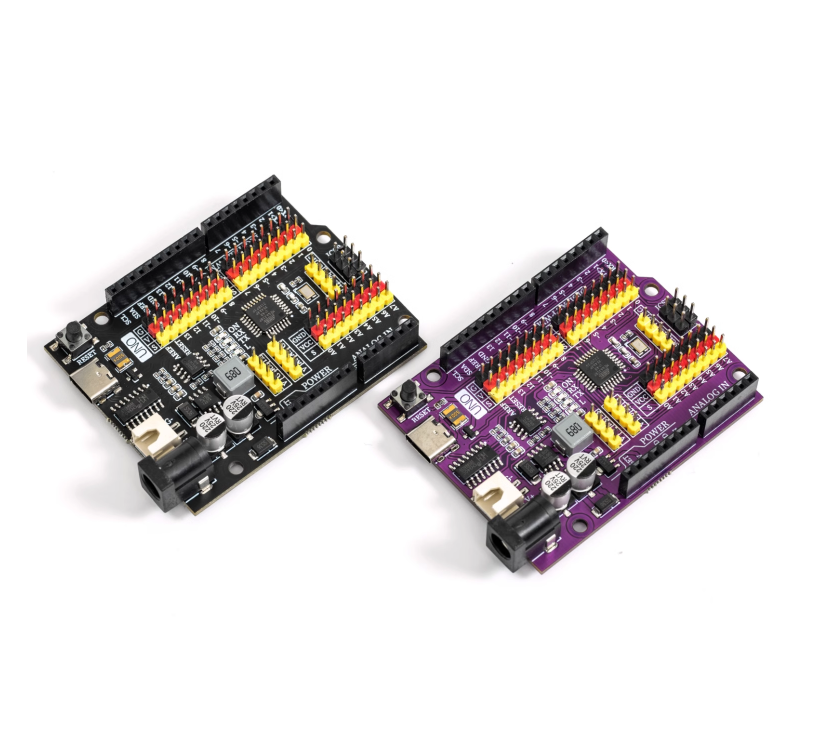

This Arduino compatible development board adds 2.54 spacing G | V | S expansion pin interface, I2C interface, COM port, etc. on the basis of the official version, which can be used without expansion board, and has the same stability and quality as the official board. Compared to the official version of Arduino UNO, it greatly enhances its power supply capacity. G | V can provide a maximum output capacity of 5V2.5A/3.3V1A, ensuring stability in complex projects. It allows 6-12VDC input and supports two input interfaces, DC5525 and XH2.54 terminals, making it easy to apply in various mobile projects.
Basic parameters:
Name: UNO R3 Pro Development Board
Model: UNO-R3 Pro
Microcontroller: ATmega328
Bootloader: Arduino Uno
Serial port chip: CH340C
Clock speed: 16MHz
Flash memory: 32KB
SRAM: 2 KB
EEPROM: 1 KB
Working voltage: 5V
Input voltage: 6-12V (DC direct current)
DC output (G | V): 5V2.5A/3.3V1A
Download interface: USB Type-C
I/O pins: 14 digital (6 PWM), 8 analog (A0-A7)
Supported programming software: ArduinolDE, Mixly, mblock, Scratch, etc
Product size: 68 * 54 * 15mm
Product Analysis
1. Strengthen power supply, G | V can provide a maximum output capacity of 5V2.5A/3.3V1A
2. On board circuit protection and power selection circuit
3. On board 2.54 spacing G | V | S expansion pin interface, making it more convenient to connect sensors
4. Type-C communication interface, no need to distinguish between positive and negative, more convenient to use
5. Newly added XH2.54 interface for convenient connection to lithium battery power supply, no need for expansion board use
6. Introduce A6 and A7 analog interfaces, which can expand more functions
7. Supports two input interfaces, DC5525 and XH2.54 terminals, allowing 6-12VDC input
