Quick Details
-
Brand Name:
-
AGFRC
-
Model Number:
-
B53CHLW
-
Size:
-
40*20*37.8mm, 40*20*37.8mm
-
Operating Voltage:
-
4.8V ~ 8.4V
-
Operating Temperature:
-
-15C°~ +70C°
-
Bearing:
-
Double Bearings
-
Mechanical Angle:
-
No Limit
-
Net Weight:
-
69.5g
-
Wire:
-
JR 360mm / 22AWG
-
Operating Travel:
-
180°±10°
-
Signal Range:
-
500 to 2500 uSec
-
Waterproof Level:
-
IP67
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Type:
-
Boat
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AGFRC
-
Model Number:
-
B53CHLW
-
Size:
-
40*20*37.8mm, 40*20*37.8mm
-
Operating Voltage:
-
4.8V ~ 8.4V
-
Operating Temperature:
-
-15C°~ +70C°
-
Bearing:
-
Double Bearings
-
Mechanical Angle:
-
No Limit
-
Net Weight:
-
69.5g
-
Wire:
-
JR 360mm / 22AWG
-
Operating Travel:
-
180°±10°
-
Signal Range:
-
500 to 2500 uSec
-
Waterproof Level:
-
IP67
Specification
Feature:
* High Performance Standard Digital Servo
* High Sturdy Steel Gear
* High Quality Coreless Motor
* High Strength Dual Ball Bearings
* Aluminium Middium Case
* 25-Tooth Output Spline
* Programmable digital circuit
* Magnetic Sensor Waterproof IP67
* Ideal for 1/10 Kyosho Ultima RB6 RS Electric Racing Buggy, TRX-4 Sport, E-Revo Monster Truck, Spartan Boat, 1/12 On Road, Truck, Buggy, Crawler, Airplane, Jet, Helicopter and Engine etc.
* High Sturdy Steel Gear
* High Quality Coreless Motor
* High Strength Dual Ball Bearings
* Aluminium Middium Case
* 25-Tooth Output Spline
* Programmable digital circuit
* Magnetic Sensor Waterproof IP67
Product description:

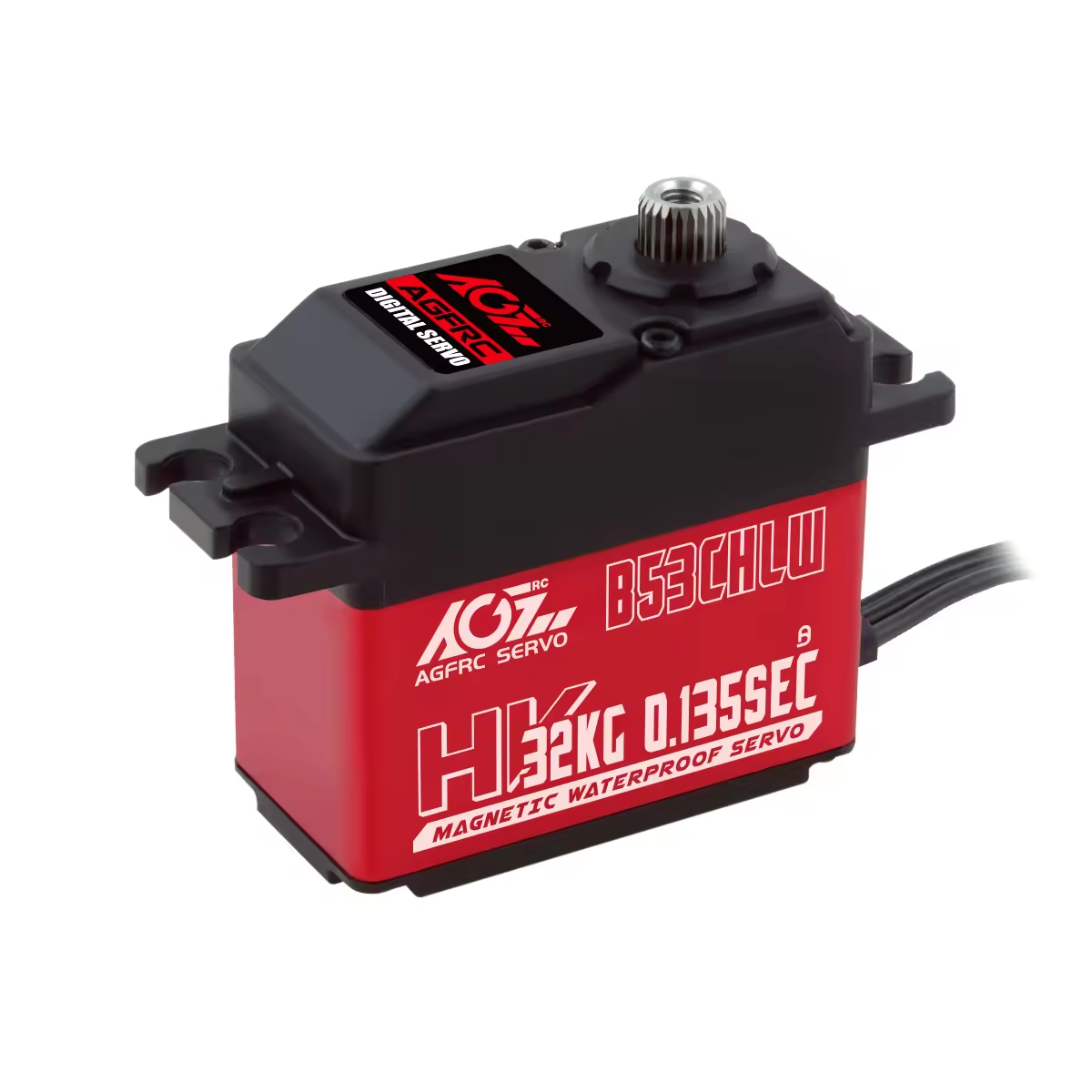

B53CHLW
Inherit the advantages of B53CHL V2 Servo. It is newly upgraded with programmable function and IP67 magnetic waterproof function. If you like to customize the parameters and like to use the model near the river with gentle wind and drizzle, B53CHLW is a good choice. Unique dust-proof and splash-proof black and red case design, High strength dual ball bearings and super sturdy
gears, It will keep your model working smoothly. It is very suitable for 1/10 Kyosho Ultima RB6 RS Electric Racing Buggy, TRX-4 Sport, E-Revo Monster Truck, Spartan Boat, ect. I believe it can be your reliable partner.
gears, It will keep your model working smoothly. It is very suitable for 1/10 Kyosho Ultima RB6 RS Electric Racing Buggy, TRX-4 Sport, E-Revo Monster Truck, Spartan Boat, ect. I believe it can be your reliable partner.
Application:
Specification:
B53CHLW
Operating Voltage: 4.8-8.4V
Gear: Steel
Motor: Coreless
Size: 40*20*37.8mm (1.57 x 0.78 x 1.49 in)
Weight: 53g
Connector Wire: JR 360mm / 22AWG
Motor: Coreless
Size: 40*20*37.8mm (1.57 x 0.78 x 1.49 in)
Weight: 53g
Connector Wire: JR 360mm / 22AWG
|
Torque
|
22 kg-cm (306 oz-in) @ 4.8V
|
26 kg-cm (361 oz-in) @ 6.0V
|
29 kg-cm (403 oz-in) @ 7.4V
|
32 kg-cm (445 oz-in) @ 8.4V
|
|
Unload Speed
|
0.180sec /60° @ 4.8V
|
0.160sec /60° @ 6.0V
|
0.145sec /60° @ 7.4V
|
0.135sec /60° @ 8.4V
|
|
Unload Current
|
280mA @ 4.8V
|
350mA @ 6.0V
|
400mA @ 7.4V
|
450mA @ 8.4V
|
|
Loading Current
|
3000mA @ 4.8V
|
3300mA @ 6.0V
|
3800mA @ 7.4V
|
4200mA @ 8.4V
|
