Qingdao crowns machinery co.,ltd
was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Industrial Water Treatment
-
Material:
-
Stainless Steel304 or 316
-
working pressure:
-
1.0Mpa
-
Min. Filtration Precision:
-
50-200 μm
-
structure:
-
Y type,vertical
-
Productivity:
-
150m3/hr
-
Working temperature range:
-
≤90°c
-
Single filter water flow:
-
80 ~ 1100 m3 / h
-
control system:
-
PLC,timer controller,pressure controller
Quick Details
-
Weight (KG):
-
180
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Crowns
-
Application:
-
Industrial Water Treatment
-
Material:
-
Stainless Steel304 or 316
-
working pressure:
-
1.0Mpa
-
Min. Filtration Precision:
-
50-200 μm
-
structure:
-
Y type,vertical
-
Productivity:
-
150m3/hr
-
Working temperature range:
-
≤90°c
-
Single filter water flow:
-
80 ~ 1100 m3 / h
-
control system:
-
PLC,timer controller,pressure controller

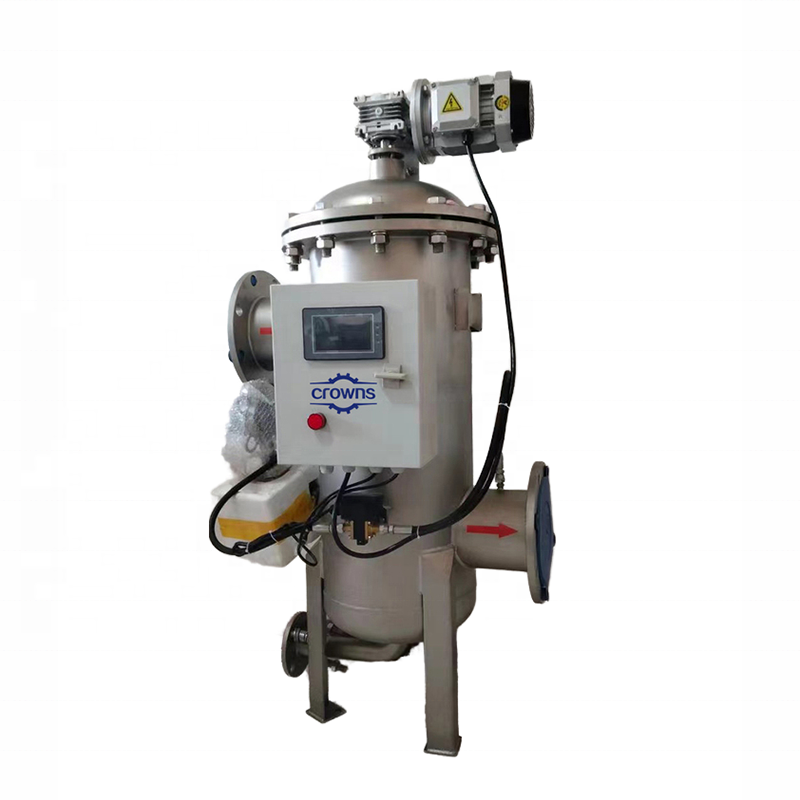

Industrial Filtering Equipment Stainless Steel Automatic Self Cleaning Filter For Wax Printing Ink Lubricant Oil Marine Paint
2.The filter element adopts high-quality metal wedge-shaped filter element, which has the characteristics of large filtering area, long service life and good self-cleaning effect.
3.The scraper material can choose 4F board, nylon Brush or steel wire brush, equipped with high elastic spring, can be accurately stretched, close to the surface of the filter element, efficiently scrape off impurities.
4.When the impurities accumulate to a certain degree, the automatic drain valve opens, and the impurities are discharged from the bottom drain port.
5.Which can achieve single machine continuity On-line filtration, always keep the filter element clean and reduce liquid loss.
6.When filtering viscous liquids such as sewage, adhesives, resins, polymers, oils, etc., the DFA scraper type self-cleaning filter works more efficiently.
7.According to the pressure difference and time, the cleaning and drainage functions can be automatically turned on, with a high degree of automation.
|
Filter flow
|
80-1100 m³/h
|
|
|
|
|||
|
Pressure rating
|
1.0Mpa
|
|
|
|
|||
|
Water temperature range
|
0 ~ 65 °C
|
|
|
|
|||
|
Filtering precision
|
50 -3000 micron
|
|
|
|
|||
|
Inlet and outlet connection
|
Flange
|
|
|
|
|||
|
Backwash time
|
20-30 seconds
|
|
|
|
|||
|
Water consumption during backwash
|
1%-3% of filtered water
|
|
|
|
|||
|
Drain way
|
Manual/Timing control/ DP control
|
|
|
|
|||
|
Cleaning way
|
Brush
|
|
|
|
|||
|
Drive way
|
Motor/Manual drive
|
|
|
|
|||
|
Rated operating voltage
|
3-ph/380V/1-ph/220V/50Hz
|
|
|
|
|||
CROWNS MACHINERY
CROWNS MAIN PRODUCTS
* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
