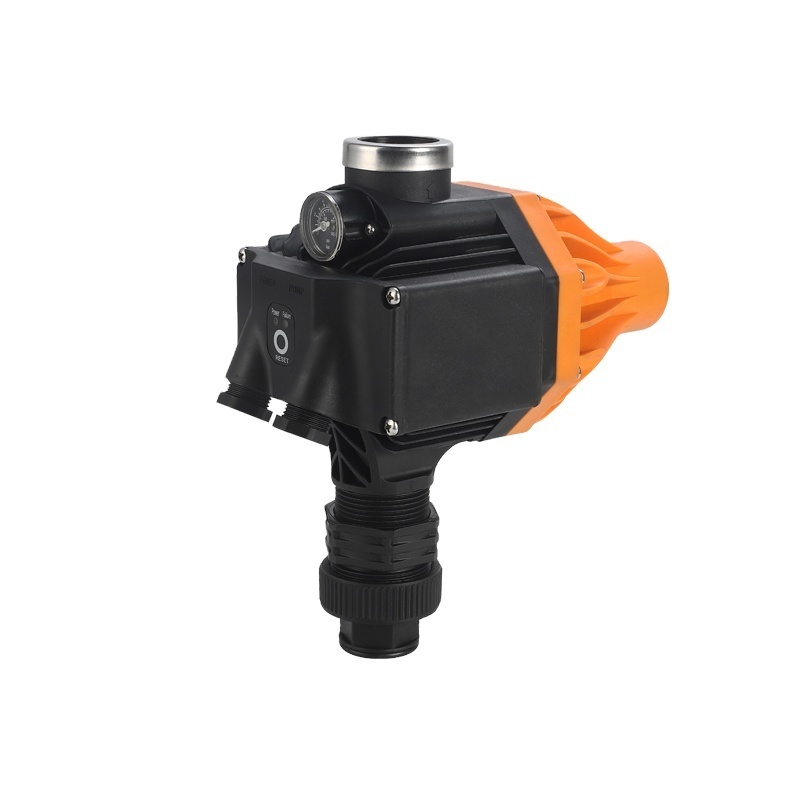

Monro EPC (Electric Pump Controller) series, is a whole electronic intelligent water pump control device. It adopts dual-control of flow and pressure, starts and stops of the pump according to the detected data of water source state, pipeline water consumption and pipeline pressure change.It can completely replace the traditional system composed of pressure tank, pressure switch, water shortage protection device, check valve, four-way, etc. And it is more safer than traditional system due to its complete isolation of electronic from pipe and highly hermetic control box. The integrated design saves time and money when installing.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MONRO
-
Model Number:
-
EPC-13
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
10 bar
-
Rated voltage:
-
110V-240V
-
Frequency:
-
50/60Hz
-
Max.current:
-
10A
-
Max.power:
-
1.5KW / 0.75KW
-
Starting pressure setting:
-
1.5bar - 3.0bar
-
Max.working pressure:
-
10bar
-
Connection thread:
-
G1"
-
Protection rating:
-
IP65
-
Max.working temperature:
-
55°C
-
Certification:
-
CE TUV ISO9001
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MONRO
-
Model Number:
-
EPC-13
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
10 bar
-
Rated voltage:
-
110V-240V
-
Frequency:
-
50/60Hz
-
Max.current:
-
10A
-
Max.power:
-
1.5KW / 0.75KW
-
Starting pressure setting:
-
1.5bar - 3.0bar
-
Max.working pressure:
-
10bar
-
Connection thread:
-
G1"
-
Protection rating:
-
IP65
-
Max.working temperature:
-
55°C
-
Certification:
-
CE TUV ISO9001
Automatic pressure controller - EPC SERIES
|
EPC-13 TECHNICAL PARAMETERS
|
|
|
|
|||
|
Rated voltage
|
220-240V
|
110-120V
|
110-240V
|
|||
|
Power Frequency
|
50/60HZ
|
50/60HZ
|
50/60HZ
|
|||
|
Max using current
|
10A
|
10A
|
10A
|
|||
|
Max power
|
1.5KW
|
0.75KW
|
0.75kW/1.5KW
|
|||
|
Starting pressure seting
|
1.2bar, 1.5bar, 3.0bar
|
1.2bar, 1.5bar, 3.0bar
|
1.2bar, 1.5bar, 3.0bar
|
|||
|
Max working pressure
|
10bar
|
10bar
|
10bar
|
|||
|
Connection thread
|
G1"
|
G1",
|
G1"
|
|||
|
Protection rating
|
IP65
|
IP65
|
IP65
|
|||
|
Max working temperature
|
55
℃
|
55℃
|
55℃
|
|||
Choice: the automatic control and the water pump
|
S.
NO.
|
AUTOMATIC CONTROLLER STARTING PRESSURE
|
WATER PUMP LIFT
(METERS)
|
DISTANCE OF VALVE & AUTOMATIC CONTROLLER (METERS)
|
|
1
|
1.2 BAR
|
＞12M
|
＜12M
|
|
2
|
1.5 BAR
|
＞25M
|
＜15M
|
|
3
|
2.2 BAR
|
＞22M
|
＜22M
|
Our Advantages
Residential, Light Commercial & Irrigation
Highlight Features
1. simple installation, easy to operate;
2. save the costs of water system installation
3. Protect the pump, longer its life
Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply system:
Highlight Features
1. simple installation, easy to operate;
2. save the costs of water system installation
3. Protect the pump, longer its life
Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply system:
1. Ordinary wells and tube wells
2. Household water booster
3. High buildings water booster
4. Irrigation system
2. Household water booster
3. High buildings water booster
4. Irrigation system
