Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
10th
-
Operating System:
-
Win7,Win10, Linux, pfsense, openWRT, OPNsense
-
Chipset Type:
-
Intel N100
-
Processor Series:
-
Intel Core 8/9/10th generation i3/15/i7 8145U
-
Video Memory:
-
Based on the RAM
-

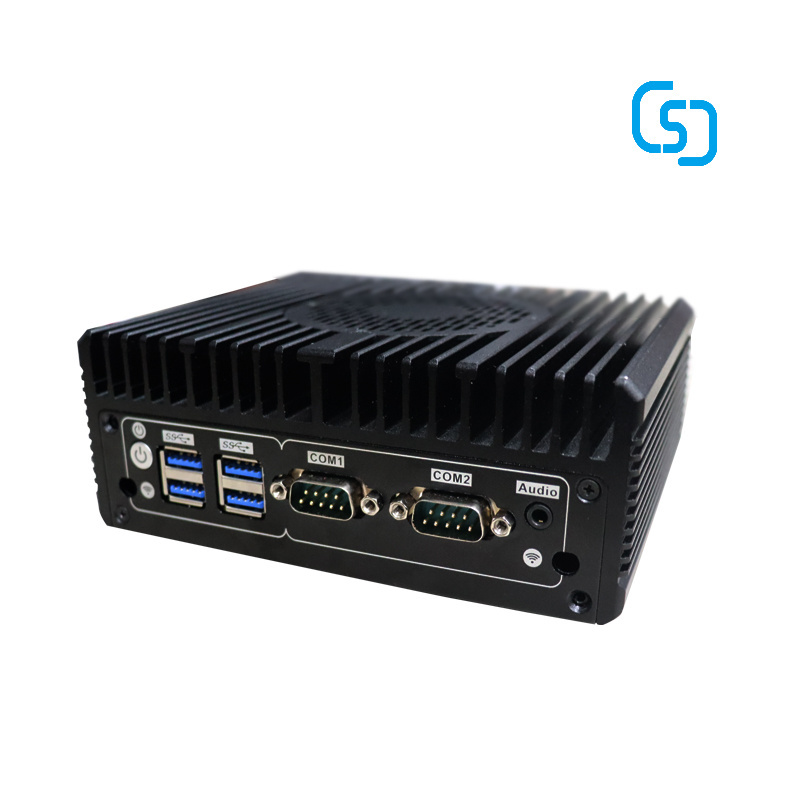

Product Name:
-
Industrial Mini PC Computer
-
Power Supply:
-
DC 12V, DC head 5.5*2.5mm
-
Voltage:
-
+12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
-
Memory:
-
Maximum Support 16gb
-
USB:
-
4*USB 3.0 2*USB2.0
-
Extension Ports:
-
1*SIM
-
Size:
-
152mm*126mm*58mm
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
10th
-
Operating System:
-
Win7,Win10, Linux, pfsense, openWRT, OPNsense
-
Chipset Type:
-
Intel N100
-
Processor Series:
-
Intel Core 8/9/10th generation i3/15/i7 8145U
-
Video Memory:
-
Based on the RAM
-
Product Name:
-
Industrial Mini PC Computer
-
Power Supply:
-
DC 12V, DC head 5.5*2.5mm
-
Voltage:
-
+12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
-
Memory:
-
Maximum Support 16gb
-
USB:
-
4*USB 3.0 2*USB2.0
-
Extension Ports:
-
1*SIM
-
Size:
-
152mm*126mm*58mm
Specification
|
Processor/Chipset
|
Intel Core 8/9/10th generation i3/15/i7 8145U
|
|
Memory
|
1* DDR4 2666/2400MHz memory slot, the whole board
supports up to 16GB |
|
Network
|
1*Inteli2252.5G+1*Intel i219V dry Gigabit network port,
supports network wake-up, PXE function |
|
Show support
|
1*HDMI (DP optional)+1*VGA, supports synchronous or
asynchronous display |
|
Storage device
|
1*SATA3.0, 1* M.2 (NVME, supports SATA/PCIE hard drive)
|
|
Expansion slot
|
1*Full length MINI-PCI-E (WIFI/3G/4G communication module)
|
|
I/O interface
|
1*DC DC input
1*HDMI 1*VGA 4*USB 3.0 2*USB2.0 2*LAN (1*Intel i225/i226 2.5G+1*Intel i219V dry Gigabit network port) 2*COM(COM1-2 supports RS232/485) 2* audio port (HD ALC audio decoding (left and right channels+microphone), ALC887 sound card) |
|
On-board I/O
interface |
1*SATA3.0
1*M.2(NVME) 1*MPCIE (WIFI/3G/4G communication module) 2*USB2.0 1*TPM,1*FP |
|
Watchdog timer
|
0-255S, system reset
|
|
Power Specifications
|
DC 12V input
|
|
Temperature
|
Storage temperature:-20℃-70C
Working temperature:-20℃-60℃ |
|
Size
|
152mm*126mm*58mm
|
Fanless Zero Noise Design
Aluminum Alloy Case With Fanless Design, The Aluminum Alloy Fin Design Increases The Heat Dissipation Area To Quickly Export Heat,Is Resistant To High And Low Temperatures, And Can Operate Stably In Various Environments
Support Auto Power On, Wake On Lan,Etc.Can Stable Operation 7x24 Hours. More Secure For Industrial Equipment Operation.
Product Description
Our Services
What Can We Do for Your Unique Requirement?
Basic Customization: CPU, RAM, SSD, HDD, Operating System, Functions of Mini PC Setting, etc.
Logo Customization: Free Booting Logo, Free Sticker Logo, Laser Logo, Silk Screen Printing Logo, etc. More Customization: Customized Interfaces, ITX Motherboard Design, Mini PC Case Design, Customized Packages, etc.
Kindly inquiry
us for further information!
