Quick Details
-
Rated Voltage(v):
-
12/24v
-
Rated rotated speed(r/m):
-
600rpm
-
Top net weight(kg):
-
4.5
-
Output Current:
-
AC
-
Start Torque(N*M):
-
less than 0.32
-
generator:
-
3 phase permanent magnet synchronous generator
-
Permanent Magnet Material:
-
Rare Earth NdFeB
-
Item:
-
500w axial flux permanent magnet motor generator
Quick Details
-
Place of Origin:
-
China
-
Rated Power(w):
-
400W
-
Max Power(w):
-
435W
-
Rated Voltage(v):
-
12/24v
-
Rated rotated speed(r/m):
-
600rpm
-
Top net weight(kg):
-
4.5
-
Output Current:
-
AC
-
Start Torque(N*M):
-
less than 0.32
-
generator:
-
3 phase permanent magnet synchronous generator
-
Permanent Magnet Material:
-
Rare Earth NdFeB
-
Item:
-
500w axial flux permanent magnet motor generator

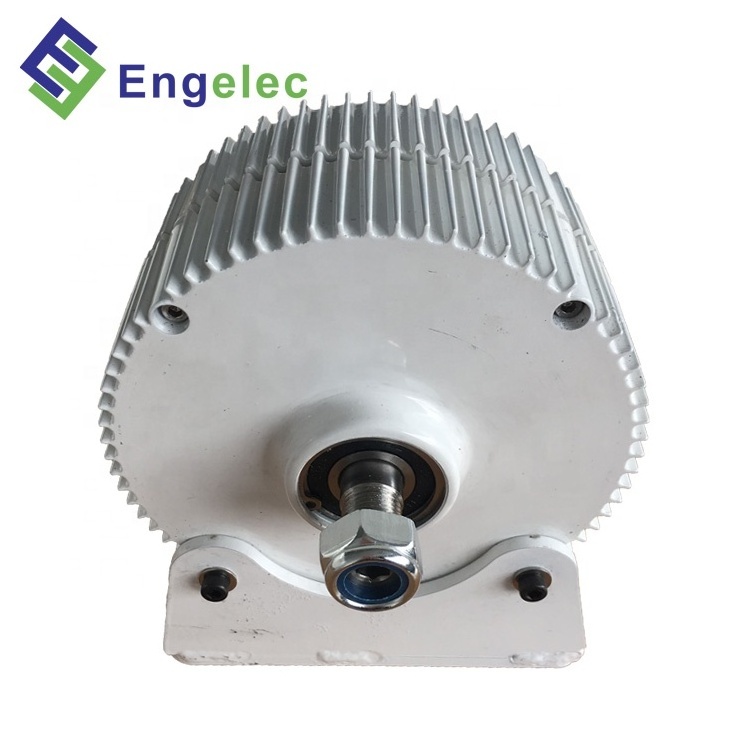

400W PMG/PMA AC 3 phase 12/24v wind/hydro use 500w axial flux permanent magnet motor generator
Our normal rotate speed for 400W is 600rpm, 650rpm, 700rpm, 750rpm, 950rpm
500w axial flux permanent magnet motor generator
Features
- Low start up speed;
- Low cogging torque
-
600w low rpm permanent magnet alternator generator
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- Die Casting aluminium alloy case for use in all environments: anti corrosion, acid and alkali resistant, and anti salt corrosion.
- Excellent heat dissipation
- Designed for 20-year operation life.
- Best NdFeB Permanent Maget
- High-grade pure copper winding
- High efficient and produce power stably
Specification
| Model | EN-100S | EN-200S | EN-300M | EN-400M | EN-500M2 | EN-600M2 |
| Rated Power(w) | 100w | 200w | 300w | 400w | 500w | 600w |
| Max Power(w) | 140w | 240w | 345w | 435w | 536w | 636w |
| Rated Voltage(v) | 12/24v | 12/24v | 12/24v | 12/24v | 12/24/48v | 12/24/48v |
| Rated rotated speed(r/m) | 650r/m | 600r/m | 600r/m | 600r/m | 600r/m | 600r/m |
| Top net weight(kg) | 3.1kg | 3.4kg | 7kg | 8kg | 9kg | 9kg |
| Output Current | AC | AC | AC | AC | AC | AC |
|
Start Torque(N*M) (less than) |
0.08Nm | 0.12Nm | 0.28Nm | 0.32Nm | 0.42Nm | 0.52Nm |
| generator | 3 phase permanent magnet synchronous generator | |||||
| Insulation Class: | F | |||||
| Service Life: | More Than 20 years | |||||
| Bearing | HRB or for your order | |||||
| Shaft Material | stainless steel | |||||
| Shell Material | aluminium alloy | |||||
| Permanent Magnet Material | Rare Earth NdFeB | |||||
| Protection Grade | IP54 | |||||
| Lubrication | Lubrication Grease | |||||
| Working temperature | -40°C - 80 °C | |||||
500w axial flux permanent magnet motor generator
Drawings (300W and 400W are same):
1. Single Shaft
2. Single Shaft with Base
3. Double Shaft
4. Doble Shaft with Base
The sizes are for reference, customized size is welcomed.
500w axial flux permanent magnet motor generator
Welcome to contact me for more information!
