Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
RF820
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1100*1300
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
300pcs/min
-
Feature:
-
High Capacity
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
video technical support and online support
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Speed:
-
300pcs/min
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Zipper Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
RF820
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1100*1300
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
300pcs/min
-
Feature:
-
High Capacity
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
video technical support and online support
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Speed:
-
300pcs/min
Products Description

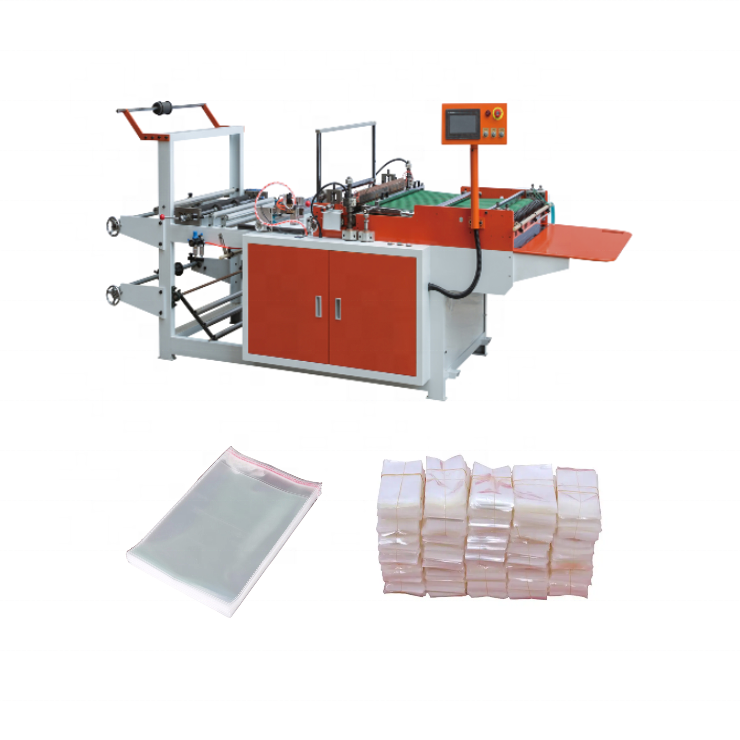

RF820 SIDE SEALING MACHINE
This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on.
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; automatic punching; automatic gluing.
5.Cylinder material hatch. Bottom gusset.
6.Two feeding facility.
7. Optional facility: 1). Ultrasonic facility, etc. (Adding by your requirement)
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; automatic punching; automatic gluing.
5.Cylinder material hatch. Bottom gusset.
6.Two feeding facility.
7. Optional facility: 1). Ultrasonic facility, etc. (Adding by your requirement)
Product Video
Product Paramenters
|
Model
|
RF720
|
RF820
|
RH1020
|
RH1220
|
|
Voltage
|
380V/220V
|
380V/220V
|
380V/220V
|
380V/220V
|
|
Total Power
|
5.5KW
|
6.5KW
|
9.0KW
|
11KW
|
|
Average Power
|
2.5KW
|
3KW
|
4KW
|
5KW
|
|
Film Width
|
120-670mm
|
120-770mm
|
200-970mm
|
300-1170mm
|
|
Bag Length
|
50-500mm
|
55-800mm
|
55-800mm
|
60-1000mm
|
|
Max Speed
|
300pcs/min
|
260pcs/min
|
230pcs/min
|
220pcs/min
|
|
Machine Weight
|
750KG
|
850KG
|
1000KG
|
1200KG
|
|
Machine Length
|
3400mm
|
3800mm
|
4200mm
|
4200mm
|
|
Machine Width
|
1100mm
|
1200mm
|
1500mm
|
1700mm
|
|
Machine Height
|
1300mm
|
1300mm
|
1300mm
|
1300mm
|
Product Features
1. It adopt PLC control, liquid crystal touch screen display.
2. Step (Servo) motor to fix length.
3. For small size bag, 2line bag production for high output
4. With photocell to track printing film
2. Step (Servo) motor to fix length.
3. For small size bag, 2line bag production for high output
4. With photocell to track printing film
Product Details
PLC+ Servo motor+ Inverter+ Touch screen
Photocell track & Pneumatic punching
Double unwinding & Brake control
Changeable double side knife
High quality belt
Standard bag collection table
Optional choice for new design high
strength steel plate model
Production Bag Samples
