Quick Details
-
Dimensions:
-
820*350*1000mm
-
Usage:
-
spot/point welding machine
-
Voltage:
-
380v/220v
-
Weight (KG):
-
100 KG
-
Name:
-
Spot Welding Equipment
-
Model:
-
KL-10
-
Welding thickness:
-
<=4+4mm (low-carbon steel plate)
-
Net basket diameter:
-
<=8+8mm
-
Electrode arm length:
-
400mm
-
Electrode arm spacing:
-
125mm
-
Electrode stroke:
-
15mm
-
Pressing method:
-
foot pedal
-
Maximum pressure:
-
150kg
-
Initial pole current:
-
100A
Quick Details
-
Place of Origin:
-
China
-
Rated Capacity:
-
10 kva
-
Max. Welding Thickness:
-
3+3/5+2
-
Dimensions:
-
820*350*1000mm
-
Usage:
-
spot/point welding machine
-
Voltage:
-
380v/220v
-
Weight (KG):
-
100 KG
-
Name:
-
Spot Welding Equipment
-
Model:
-
KL-10
-
Welding thickness:
-
<=4+4mm (low-carbon steel plate)
-
Net basket diameter:
-
<=8+8mm
-
Electrode arm length:
-
400mm
-
Electrode arm spacing:
-
125mm
-
Electrode stroke:
-
15mm
-
Pressing method:
-
foot pedal
-
Maximum pressure:
-
150kg
-
Initial pole current:
-
100A
Spot/point welding machine for metal plate/mesh/bars
Product Description
Spot welding machine
is a kind of mechanical equipment, which adopts the principle of double-sided double-point over-current welding. When working, two electrodes pressurize the workpiece to make two layers of metal form a certain contact resistance under the pressure of two electrodes, while when the welding current flows through the other electrode, it forms an instant hot melt connection at the two contact resistance points, and the welding current instantly flows from the other electrode to the electrode to form a loop, and will not damage the internal structure of the welded parts.
Specification
We have electric and pneumatic machines. We recommend the most suitable machine model for you according to your workpiece specifications. Please send me an inquiry for more information!!!
|
Model: KL-10
Capacity: 10 kVA
Voltage: 380v (220V can be customized)
Initial pole current: 26A
Adjusting the number of poles: 7th gear
Welding speed: 5400 points/hour
Welding thickness:<=1.2+1.2mm
Net basket diameter:<=2+2mm
Electrode arm length: 350mm
Electrode arm spacing: 150mm
Electrode stroke: 15mm
Pressurization method: foot pedal
Maximum pressure: 100kg
Weight: 65kg
External dimension: 820 * 350 * 1000mm
|
|
Model: KL-16
Capacity: 16 kVA
Voltage: 380v
Initial pole current: 42A
Adjusting the number of poles: 7th gear
Welding speed: 5400 points/hour
Welding thickness:<=2+2mm
Net basket diameter:<=3+3mm
Electrode arm length: 400mm
Electrode arm spacing: 125mm
Electrode stroke: 15mm
Pressurization method: foot pedal
Maximum pressure: 150kg
Weight: 90kg
External dimensions 950 * 350 *1200mm
|
|
||

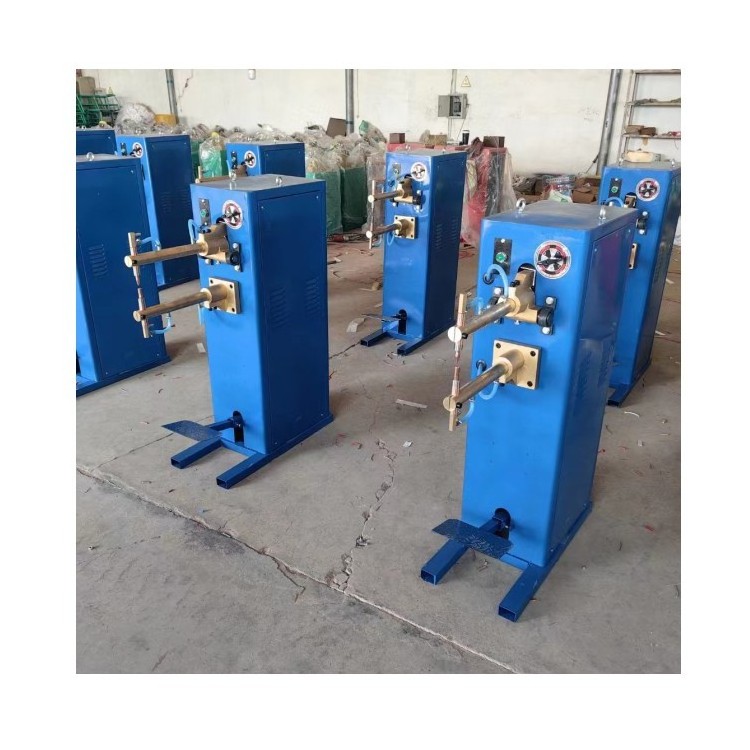

Product Display
Colors can be customized!
Spot welding effect display
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
