Quick Details
-
Brand Name:
-
Dongrun
-
Model Number:
-
USK-99L
-
Product name:
-
Cable Float Liquid Level Switch
-
Control contact capacity:
-
220VAC,1A,3A:24V
-
Adjustment range:
-
0.6---20m
-
The number of switches:
-
1 2 3 4 free to choose
-
Float specification 1:
-
Reed Switch
-
Float specification 2:
-
Mercury Switch
-
Float specification 3:
-
Micro Switch
-
Medium density:
-
≥0.65
-
Pressure:
-
≤0.2MPa
-
Cable:
-
PVC / Silicone Rubber Cable
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dongrun
-
Model Number:
-
USK-99L
-
Product name:
-
Cable Float Liquid Level Switch
-
Control contact capacity:
-
220VAC,1A,3A:24V
-
Adjustment range:
-
0.6---20m
-
The number of switches:
-
1 2 3 4 free to choose
-
Float specification 1:
-
Reed Switch
-
Float specification 2:
-
Mercury Switch
-
Float specification 3:
-
Micro Switch
-
Medium density:
-
≥0.65
-
Pressure:
-
≤0.2MPa
-
Cable:
-
PVC / Silicone Rubber Cable

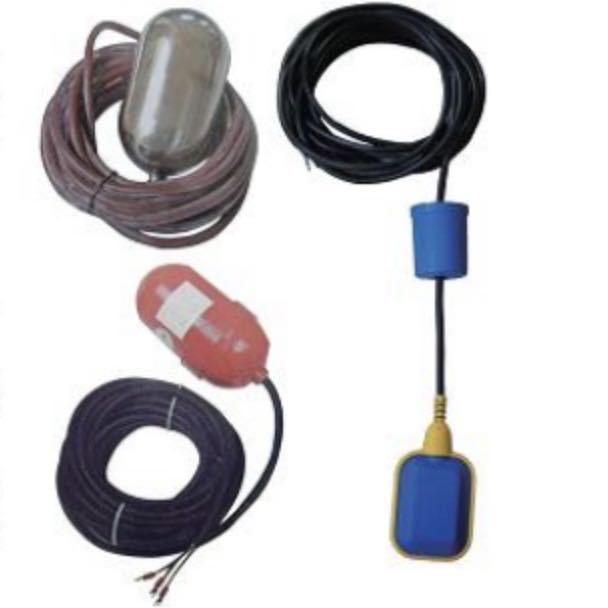

Cable Float Level Switch
USK-99L Cable floating ball hanging liquid level switch
ADVANTAGE
B ecause of plastic injection molding in one time , so the advantage of Cable floating ball hanging liquid level switch is structure firm , low price, long life there are no any movable machinery in External, particularly suitable for containing solid, semi solid strong floating material, M uco i d liquid such as the water what used for Sewage treatment , Factory waste water pool and Other liquid tank liquid level automatic alarm and control .
TYPE& P rinciple
USK99LA : use dry reed pipe as the contact part, when the floating ball root upward, dry reed pipe open, when the floating ball root down,magnetic circuit closed , dry reed pipe attract
USK99LB : use micro switch as contact part, when the angle between horizontal surface and the rose line more than 28 degrees, the switch will have ON or OFF contact signal output.
USK99LC : use of a mercury switch as contact part. When the liquid level rise d,and contact to the floating ball ,the ball will use the heavy hammer as a center and do the angel change with the water level change, , when the angel between horizontal surface and the rise angle over 10 degrees, the level switch will have ON or OFF contact signal output
liquid magnetrol level switch P arameter
Control contact capacity :220VAC,1A,3A:24V
Adjustment range :0.6---20m
The number of switches :ANY
Float specification: dry reed pipe type
The mercury switch
The micro switch
Medium density :≥0.65/CM²
Pressure : ≤ 0.2MPa
About dongrun
Shandong Dongrun Instrument Co., Ltd., was founded on March 3, 1998, mainly engaged in produce and research on water environmental analysis instruments and liquid (level) meters series. T he main product of our company is oxygen meter, on-line PH (ORP) meter, conductivity meter, acid-alkali concentration meter, online turbidity meter(SS meter), sludge concentration meter, online residual chlorine, magnetostrictive liquid level gauge, RF admittance (liquid) level meter, magnetic turn column liquid level gauge, which are cost competitive and win trust of customers . Our products are designed exquisitely, economically and practically which are widely used in field of food & biopharmaceutical, environmental protection water treatment, Petrochemical, ferrous metallurgy, textile, steel, etc. W e are the important supplier of Yantai Wanhua Group,Pepsi, Sinopec ,Jereil etc.
,
