Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RIFU
-
Dimension(L*W*H):
-
1310*1470*2110 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Automatic nylon triangle tea bag packing machine
-
Bag size:
-
60-80(W) * 40-80(L) mm
-
Packing film:
-
120mm, 140mm, 160mm, 180mm, etc.
-
Measuring scope:
-
1-7g
-
Film thickness:
-
0.04-0.06mm
-
Air compressor:
-
less than 1 cube
-
Sealing type:
-
triangle bag and flat bag
-
Packaging material:
-
Nylon, Polyester net, non-woven fabrics, ultrasonic sealing materials
-
Roller outer diameter:
-
≤400mm
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic, Wood
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RIFU
-
Dimension(L*W*H):
-
1310*1470*2110 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Automatic nylon triangle tea bag packing machine
-
Bag size:
-
60-80(W) * 40-80(L) mm
-
Packing film:
-
120mm, 140mm, 160mm, 180mm, etc.
-
Measuring scope:
-
1-7g
-
Film thickness:
-
0.04-0.06mm
-
Air compressor:
-
less than 1 cube
-
Sealing type:
-
triangle bag and flat bag
-
Packaging material:
-
Nylon, Polyester net, non-woven fabrics, ultrasonic sealing materials
-
Roller outer diameter:
-
≤400mm
Product Description

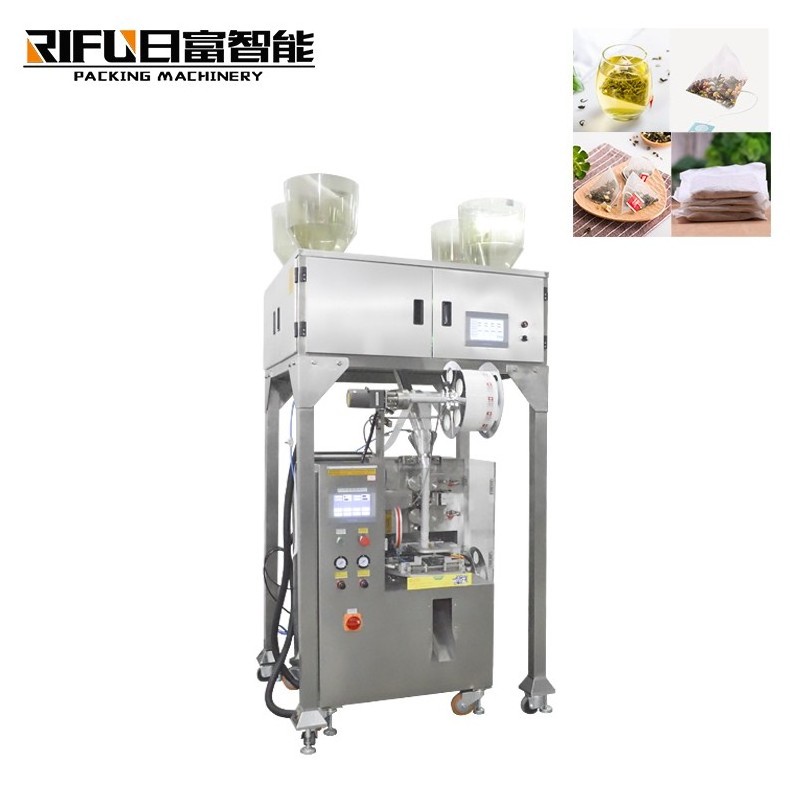

Automatic nylon triangle tea bag packing machine
It is suitable for various products packing, such as leafy tea, loose tea, diet tea, herbal tea, health care tea, flower tea and so on.
Features
1. Adopt ultrasonic sealing device, highly improve the working efficiency.
2. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.
3. The packing capacity and bag size can be easily adjusted according to different requirements.
4. The machine body and all components in direct contact with products are made of SUS304 stainless steel.
5. It is very easy to operate and maintain.
6. Optional device: date code printer.
Application
Technical Parameter
|
Model
|
RF-CYA
|
|
Capacity
|
40-60 bag/min (Determined by packing material)
|
|
Filling precision
|
≤±2% (Determined by packing material)
|
|
Bag size
|
60-80(W) * 40-80(L) mm
|
|
Packing film
|
120mm, 140mm, 160mm, 180mm, etc.
|
|
Sealing type
|
Triangle bag and flat bag
|
|
Measuring scope
|
1-7g
|
|
Film thickness
|
0.04-0.06 mm
|
|
Packaging material
|
Nylon, polyester net, non-woven fabrics, ultrasonic sealing materials
|
|
Roller outer diameter
|
Φ400mm
|
|
Roller film core inside diameter
|
Φ76mm
|
|
Air consumption
|
0.6Mpa 0.4m³/min
|
|
Total power
|
2.2 KW
|
|
Power
|
Single 220V 50HZ
|
|
Air compressor
|
Less than 1 cube
|
Details Images
