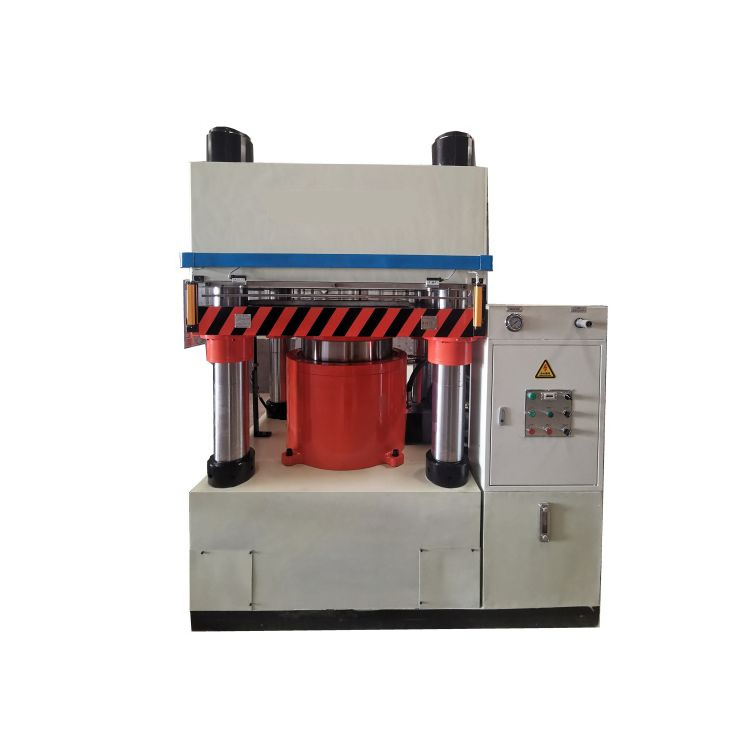

Quick Details
-
Brand Name:
-
HOUTAI
-
Voltage:
-
AC 220V-380V
-
Power:
-
19KW
-
Dimension(L*W*H):
-
1980*1900*2720, 1980*1900*2720mm
-
Weight:
-
19000 kg
-
Cutting area:
-
1100*1100
-
WEIGHT:
-
19000kg
-
Motor:
-
19KW
-
Keyword:
-
puzzle making machine
-
Stroke:
-
150mm
-
System pressure:
-
210Mpa
-
Pressing force:
-
800 tons
-
Columns:
-
Four
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Production Capacity:
-
Other
-
Product Type:
-
Paper Jigsaw Puzzle machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOUTAI
-
Voltage:
-
AC 220V-380V
-
Power:
-
19KW
-
Dimension(L*W*H):
-
1980*1900*2720, 1980*1900*2720mm
-
Weight:
-
19000 kg
-
Cutting area:
-
1100*1100
-
WEIGHT:
-
19000kg
-
Motor:
-
19KW
-
Keyword:
-
puzzle making machine
-
Stroke:
-
150mm
-
System pressure:
-
210Mpa
-
Pressing force:
-
800 tons
-
Columns:
-
Four
-
After-sales Service Provided:
-
Field installation, commissioning and training
Features:
1. Servo system, efficient and safe.
2. The machine is equiped with front and rear safety grating, left and right safety cover, double protection and security is more guaranteed.
3. High precision punching and cutting, convenient, fast operation and cutting die adjustment, more efficient production capacity.
4. The hydraulic cylinder adopts the whole forging process, the Japanese NOK sealer, fast speed, high precision, excellent quality.
Machine Specification:
| Model | Unit | HTA-P300 | HTA-P500 | HTA-P600 | HTA-P800 | HTA-P1000 |
| Cutting Force | Tons | 300 | 500 | 600 | 800 | 1000 |
| MAX stroke | mm | 150 | 150 | 150 | 150 | 150 |
| Cutting Area | mm | 800X900 | 900X1050 | 900X1050 | 1100X1100 | 1100X1440 |
| Motor power | kw | 11 | 15 | 19 | 19 | 22 |
| Dimension |
mm |
1580X1705 X1855 |
1600X1865 X2145 |
1600X1865 X2145 |
1980X1900 X2720 |
2200X1900 X2930mm |
1. Suitable for paper, wood, plastic material, white card, bliue card and other jigsaw puzzle cutting process.
2. Plastic products shaping and fitting.
| 1 | Jigsaw Puzzle die cutting machine with packaging device | https://youtu.be/QhVgBsS0OSg |
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
after-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
3.You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
4.We manufacture many embossing machines and hydraulic cutting machines.Such as,four-column plane cutting,gantry,roller cutting.Please find more info on our website.
5.We welcome you come to visit our plant,give us your suggestions,we will try our best to satisfy you.
FOR MORE DETAILS PLEASE DO NO HESITATE CONTACT WITH US!
Cooperation Brands
FAQ
1. What's the warranty of your machines?
12 months Warranty, Life-long technical support
2. How do you help with the installation?
Engineer is available to serve over sea if needed. It is easy for customer to install through video calling. What’s more, we have video tutorial for customers.
3. Can we test our own material by your machine before order?
Yes, please contact us to send your material. We will test and send video to you.
4. Can you make dies (molds) of different products for us?
Yes, we used to do that for customers.
5. Are you factory or trading company?
We are factory.
Don't know what machine is suitable for you?
Please just ask us!
Don't know how the machine working?
Please contact us to see the video!
