Quick Details
-
Power:
-
1.1~2.2KW
-
Table Size:
-
1430*1000mm
-
Overall Dimensions:
-
2000 - 7100*1430*1300
-
Weight:
-
350 kg
-
Application:
-
Access to Upper Floors for Disable or Elederly People
-
Material:
-
Aluminum
-
Voltage:
-
220v/380v, Customize available
-
Lifting speed:
-
0.06~0.1m/s
-
Load capacity:
-
250kg, 300kg
-
Lifting height:
-
1m to 6m
-
Platform size:
-
1430*1000
-
Install:
-
On the ground directly
-
Safety device:
-
Safety Sensor
-
Lifting motor:
-
1.1~2.2KW
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK lift
-
Power:
-
1.1~2.2KW
-
Table Size:
-
1430*1000mm
-
Overall Dimensions:
-
2000 - 7100*1430*1300
-
Weight:
-
350 kg
-
Application:
-
Access to Upper Floors for Disable or Elederly People
-
Material:
-
Aluminum
-
Voltage:
-
220v/380v, Customize available
-
Lifting speed:
-
0.06~0.1m/s
-
Load capacity:
-
250kg, 300kg
-
Lifting height:
-
1m to 6m
-
Platform size:
-
1430*1000
-
Install:
-
On the ground directly
-
Safety device:
-
Safety Sensor
-
Lifting motor:
-
1.1~2.2KW

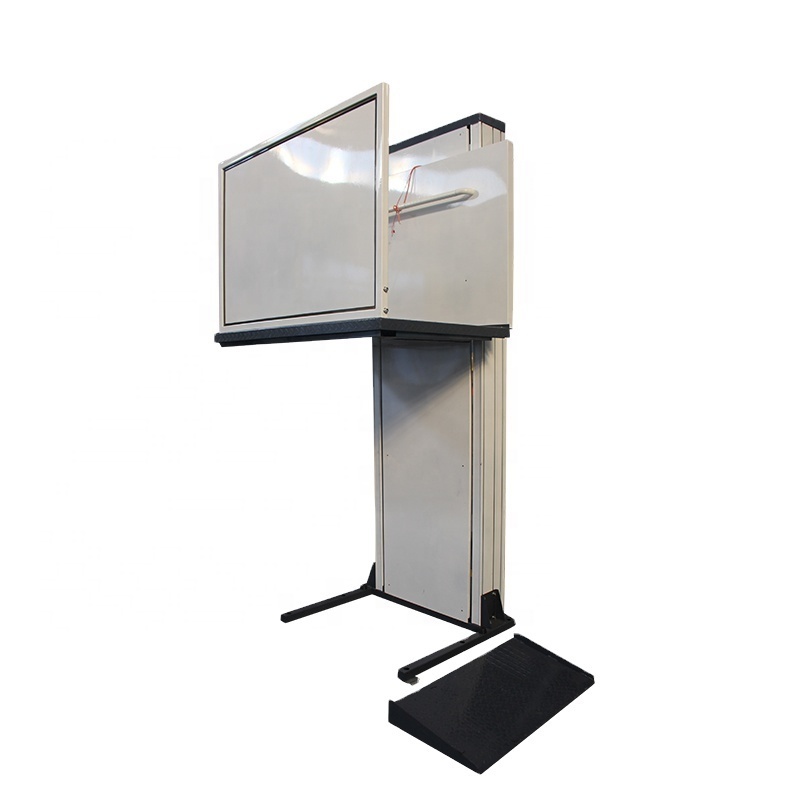

Home Use Small Electric Platform Lift for Europe Australia
Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.
The wheelchair lift is made of high-end aluminum, which is very good in process, easy to disassemble and assemble, and not like the
Welded iron material,has a rough workmanship.
We mainly produce the wheelchair lift from 1m-10m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.
1. Data Sheet:
|
Model Type |
WL2510 |
WL2515 |
WL2520 |
WL2525 |
WL2530 |
|
Max. Platform Height |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
350/450 |
450/550 |
550/700 |
700/850 |
780/900 |
|
Machine Size(mm) |
2000*1430* 1300 |
2500*1430* 1300 |
3000*1430* 1000 |
3500*1430* 1000 |
4000*1430* 1000 |
|
Model Type |
WL2535 |
WL2540 |
WL2550 |
WL2560 |
WL2570 |
|
Max. Platform Height |
3500mm |
4000mm |
5000mm |
6000mm |
7000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
850/1000 |
880/1050 |
1000/1200 |
1100/1300 |
1200/1400 |
|
Machine Size(mm) |
4600*1430* 1000 |
5100*1430* 1000 |
6100*1430* 1000 |
7100*1430* 1000 |
8100*1430* 1000 |
|
Platform size |
1430*1000mm skid proof checkered steel |
||||
|
Min Platform height |
60mm |
||||
|
Speed |
0.06~0.1m/s |
||||
|
Control voltage |
24V/DC |
||||
|
Power Output |
1.1~2.2KW |
||||
|
Voltage |
As per your local Standard(single phase or three phase) |
||||
|
Drive System |
Hydraulic pump station and electric motor (See details below) |
||||
|
Control Mode |
Automatic travel switch(See details below) |
||||
|
Drive Control |
Self-resetting system |
||||
|
Overload |
Over current relay protection |
||||
|
Materials |
Aluminium rails and guard with spraying plastics. (See details below) |
||||
|
Working Condition |
Both indoors and outdoors -20 ° ~70 ° C |
||||
|
Entrance-Exit Way |
It ’ s customized 90 ° or 180 ° |
||||
|
Installation |
No pit installing,easy to install and remove installed both on the floor and on the wall. |
||||
|
Switches (See details below) |
A. One control panel on the platform B. Install two column switches on ground, which can be fixed at any floor needed. C. Remote control, user can operate lift within 20m. |
||||
2. Photos Review:
Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.
3. Details Display:<
