Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
JCZ EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo
-
Weight (KG):
-
63 KG
-
Core Components:
-
Laser source
-
marking machinesource:
-
IPG,Raycus
-
marking machine head:
-
Galvenometer
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-2mm
-
marking machine Accuracy:
-
0.001mm
-
Fiber laser source lifespan:
-
100,000 hours
-
marking machine Lead Time:
-
3 days
-
Payment term:
-
TT, Visa
-
usage:
-
Zippo Lighter Laser Engraving Machine
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
JCZ EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo
-
Weight (KG):
-
63 KG
-
Core Components:
-
Laser source
-
marking machinesource:
-
IPG,Raycus
-
marking machine head:
-
Galvenometer
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-2mm
-
marking machine Accuracy:
-
0.001mm
-
Fiber laser source lifespan:
-
100,000 hours
-
marking machine Lead Time:
-
3 days
-
Payment term:
-
TT, Visa
-
usage:
-
Zippo Lighter Laser Engraving Machine
Features:

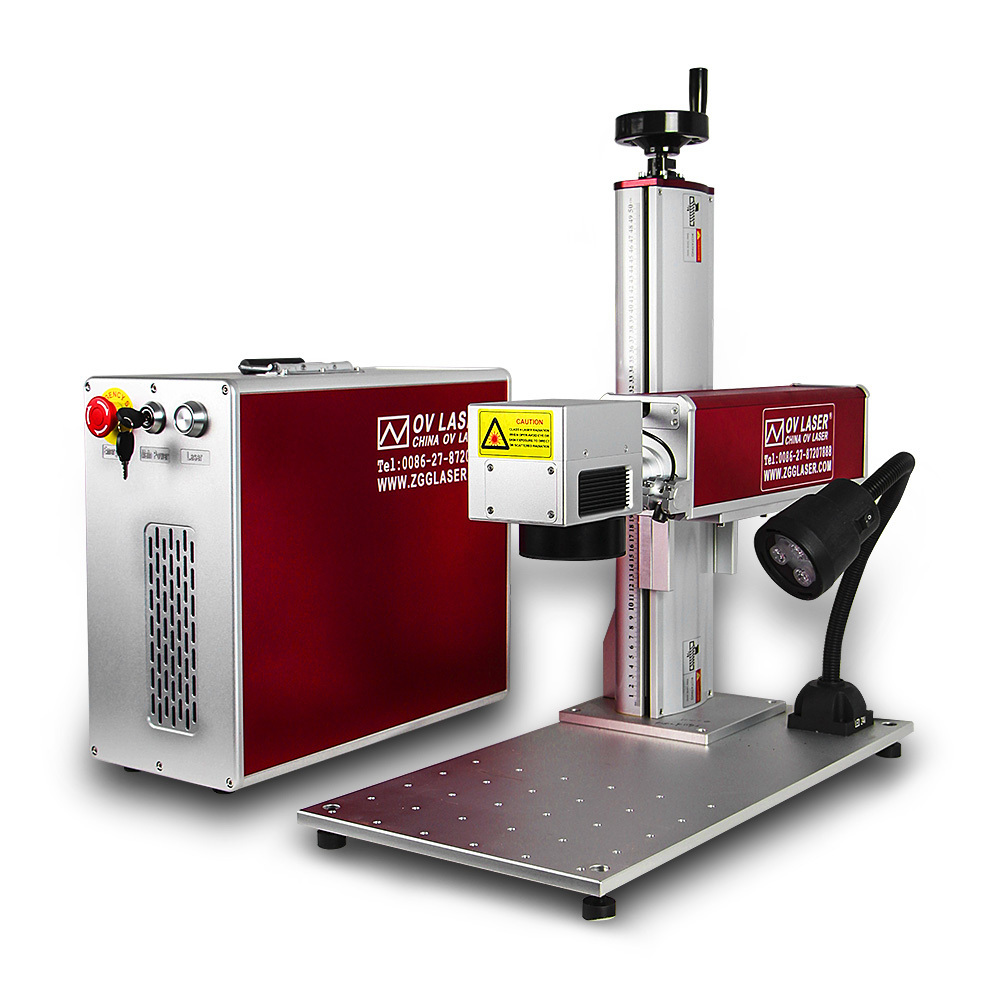

Fiber Laser Marking Machine: Open worktable, easy to load the material.
Application Materials:
Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.
Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Advantages:
1) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
5) The fiber laser beam comes out from the IPG/Raycus fiber device directly,no need to adjust the laser optical path.
7) Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
8) Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
9) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
10) Long lifespan of IPG/Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
Machine Main Parts:
Fiber laser marking machine Technical data:
|
Type |
OV SF-20 |
|
Power |
20W |
|
Laser Wavelength |
1064nm |
|
Marking Area |
110mm*110mm |
|
Optional Marking Area |
50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
|
Marking Depth |
≤1mm |
|
Marking Speed |
7000mm/s |
|
Minimum Line Width |
0.015mm |
|
Minimum Character |
0.2mm |
|
Repeated Precision |
±0.003mm |
|
Controller (Software--EzCad) |
JCZ from China |
|
Life-span of Fiber Laser Module |
100 000-200 000 hours |
|
Beam Quality |
M 2 <1.6 |
|
Focus Spot Diameter |
<0.01mm |
|
Power Stability (8h) |
<±1.5%rms |
|
System Operation Environment |
Windows XP / Windows 7 / Windows 8 |
|
Cooling Mode |
Air cooling--Built-in |
|
Working Temperature |
0℃~40℃ |
|
Voltage |
220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
|
Power Requirement |
<500W |
|
Computer Requested |
There will be one PC with the machine |
|
Dimension (L*W*H) |
750mm*200mm*500mm |
|
Package Size |
850mm*30 0mm*600mm |
|
Net Weight |
30KG |
|
Gross Weight |
50KG |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automatic Matching System |
Accessories:
Fiber Laser Marking Sample:
Package and delivery:
1. 5-7 working days after receiving the payment.
2. There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.
G uarantee and after-sales service:
1. One year for laser source,two years for all other parts.
2. 24 hours technical support by email or calling.
3. Free training for installation and operation.
FAQ:
1.How to install and use this laser marking machine?
The machine is already installed before shipping.We have very detailed English manual for laser system and laser marking software,nearly all customers can learn by themselves very easily.We will also guide you if you have any doubts.
2.What if there is sth wrong with laser marking machine?
Pls contact us at first time and do not try to fix it by yourself.
