Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
DWIN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300MM*2500MM
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X,Y,Z Working Area:
-
1300x2500mm
-
Translational velocity:
-
800-1200mm/s
-
type:
-
cnc router cutting machine
-
Command:
-
G Code / U00 / Mmg / Plt
-
Repated accuracy:
-
≤0.1mm
-
Motor and driver:
-
Delta servo motor
-
colour:
-
as your choice
-
Max travel speed:
-
8000mm/min
-
Control system:
-
zhongrui
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
DWIN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300MM*2500MM
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X,Y,Z Working Area:
-
1300x2500mm
-
Translational velocity:
-
800-1200mm/s
-
type:
-
cnc router cutting machine
-
Command:
-
G Code / U00 / Mmg / Plt
-
Repated accuracy:
-
≤0.1mm
-
Motor and driver:
-
Delta servo motor
-
colour:
-
as your choice
-
Max travel speed:
-
8000mm/min
-
Control system:
-
zhongrui

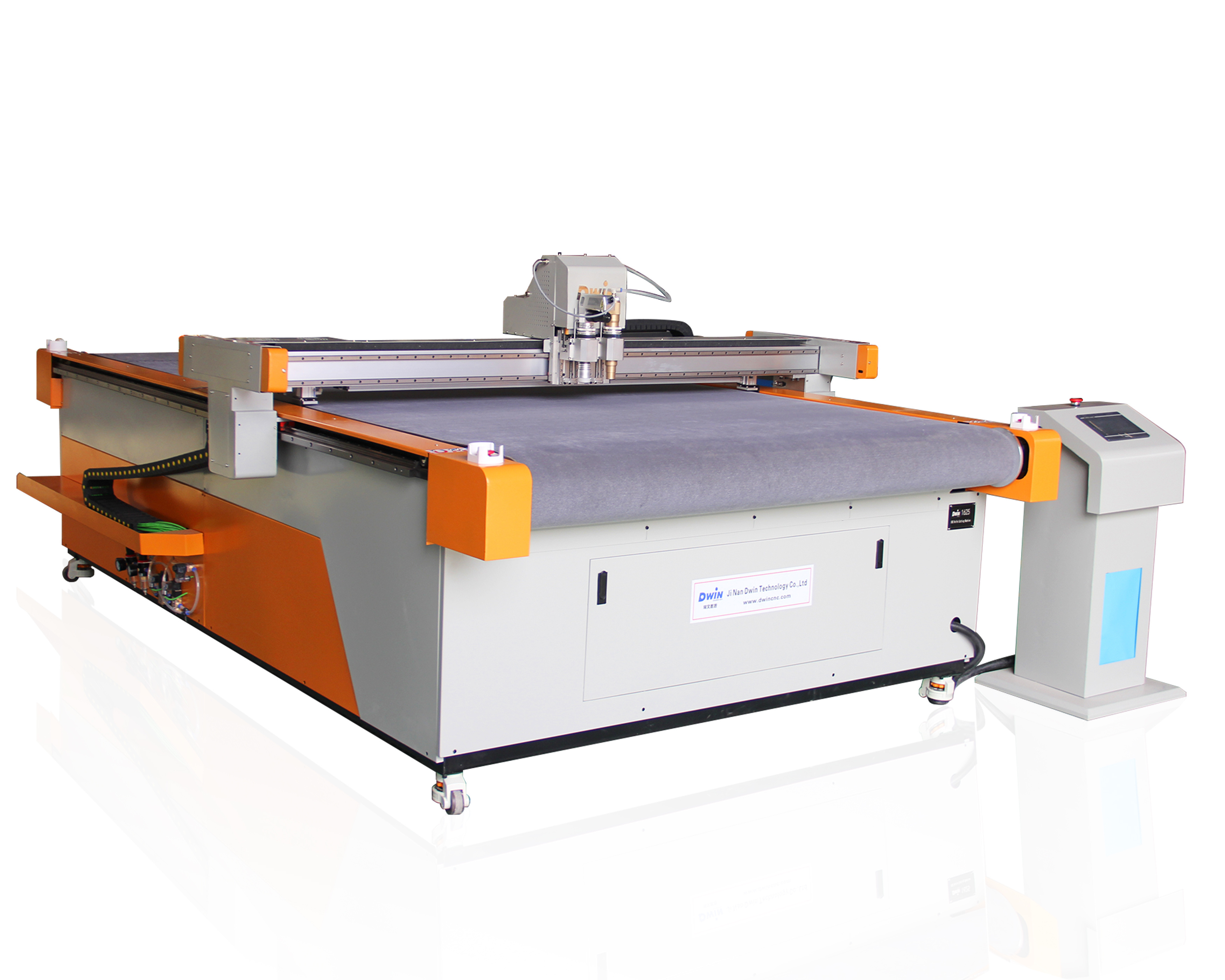

CNC oscillating knife cutting leather gasket machine
Applicable industry
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision AOL CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. Equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. can save on costs while maintaining speed and accuracy.
Applicable materials:
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
Technical parameters :
|
Model |
DW1325
|
|
X,Y working area |
1300mm*2500mm
|
|
Safety device |
Using infrared sensors, responsive, safe and reliable. |
|
Repated accuracy |
≤0.1mm |
|
Max travel speed |
8000mm/min |
|
Max cutting speed |
200-800mm/s(according to different cutting materials) |
|
Resolution ratio |
0.01mm |
|
Command |
G code*.u00*.mmg*.plt |
| Colour | as your choice |
|
Translational velocity |
800-1200mm/s |
|
Working voltage |
AC220V/50Hz for your need |
|
power |
11kw |
|
Spindle rotating speed |
0-24000rpm/min |
|
Motor and driver |
Delta servo motor |
