Quick Details
-
Model Number:
-
OPT-B
-
Brand Name:
-
RIH
-
Standard or Nonstandard:
-
Standard
-
Time interval(OFF):
-
0.5--45 minutes(adjustable)
-
Discharge time(ON):
-
0.5--10 seconds(adjustable)
-
Operation:
-
Direct-acting
-
Manual test button:
-
Yes(micro switch)
-
Working temperature:
-
-40°C to +60°C
-
Type:
-
2-way, ACCESS VALVES
-
Flow aperture:
-
5mm
-
Maximum temperature:
-
90 °C
-
Name:
-

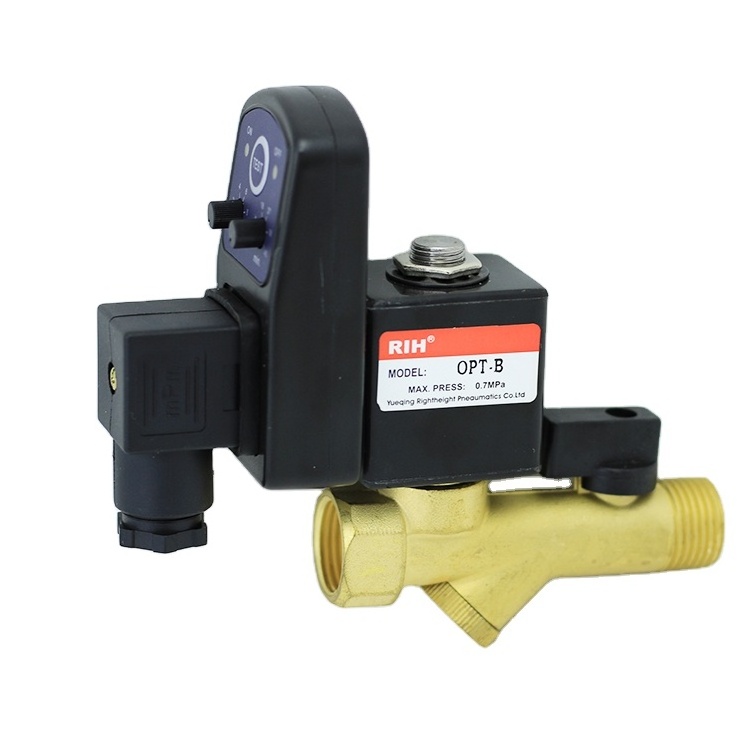

Timer auto drain valve
Quick Details
-
Port Size:
-
1/2''
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
OPT-B
-
Brand Name:
-
RIH
-
Standard or Nonstandard:
-
Standard
-
Time interval(OFF):
-
0.5--45 minutes(adjustable)
-
Discharge time(ON):
-
0.5--10 seconds(adjustable)
-
Operation:
-
Direct-acting
-
Manual test button:
-
Yes(micro switch)
-
Working temperature:
-
-40°C to +60°C
-
Type:
-
2-way, ACCESS VALVES
-
Flow aperture:
-
5mm
-
Maximum temperature:
-
90 °C
-
Name:
-
Timer auto drain valve
Banner
Features:
1. The electronic-drain valve is made of solid state electronic time-setting and solenoid valve, which can make the compressor condensates water drain automatically.
2. Equipped with a ball valve filter, split with drain valve, an L-shaped structure.
3. Widely used in air compressor,coolor,separator,dryer,filter,gas tank etcs compressed air system components.
4. Discharge time and the internal time can be adjusted to meet to different needs.
5. Easy to install, fully automatic operation,without maintenance,can substitute for congeneric import products, such as
JORC,POWERFLOW and so on.
1. The electronic-drain valve is made of solid state electronic time-setting and solenoid valve, which can make the compressor condensates water drain automatically.
2. Equipped with a ball valve filter, split with drain valve, an L-shaped structure.
3. Widely used in air compressor,coolor,separator,dryer,filter,gas tank etcs compressed air system components.
4. Discharge time and the internal time can be adjusted to meet to different needs.
5. Easy to install, fully automatic operation,without maintenance,can substitute for congeneric import products, such as
JORC,POWERFLOW and so on.
Specification:
|
Voltage
|
AC DC
|
|
Voltage range
|
+ -10%
|
|
Time interval ( OFF )
|
0.5--45 minutes (adjustable)
|
|
Discharge time ( ON )
|
0.5--10 seconds (adjustable)
|
|
Manual test button
|
Yes( micro switch )
|
|
The current consumption
|
Max 4mA
|
|
Ambient temperature
|
-40 °C to 60 °C.
|
|
Protection grade
|
IP65
|
|
Shell material
|
Flame retardant ABS plastic
|
|
Electrical connection
|
DIN43650A
|
|
Indicator lamp
|
LED indicating power on / off
|
|
Type
|
two-way direct-acting valve
|
|
Flow aperture
|
5 mm
|
|
Insulation class
|
H
|
|
In / out port size
|
1/2"
|
|
Maximum working pressure
|
1.6Mpa (OPT-A:1.6 Mpa,OPT-B:4.0 Mpa,OPT-T:8.0 Mpa)
|
|
Maximum temperature
|
90 °C
|
|
Valve material
|
Forging brass
|
|
Name
|
Timer auto drain valve
|
