Quick Details
-
Model Number:
-
GD-0709A
-
Product name:
-
Desk Type Digital Marshall Compression Machine for Bitumen
-
Operate type:
-
Automatic
-
Display:
-
LCD
-
Maximum load:
-
50kN
-
Measuring range:
-
≤40kN
-
Measuring bias:
-
≤±0.1kN
-
Communication port:
-
RS232
-
Motor power:
-
550W
-
Ambient temperature:
-
0℃~60℃
-
lifting rate for pressure machine:
-
(50±5)mm/min
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GD-0709A
-
Product name:
-
Desk Type Digital Marshall Compression Machine for Bitumen
-
Operate type:
-
Automatic
-
Display:
-
LCD
-
Maximum load:
-
50kN
-
Measuring range:
-
≤40kN
-
Measuring bias:
-
≤±0.1kN
-
Communication port:
-
RS232
-
Motor power:
-
550W
-
Ambient temperature:
-
0℃~60℃
-
lifting rate for pressure machine:
-
(50±5)mm/min

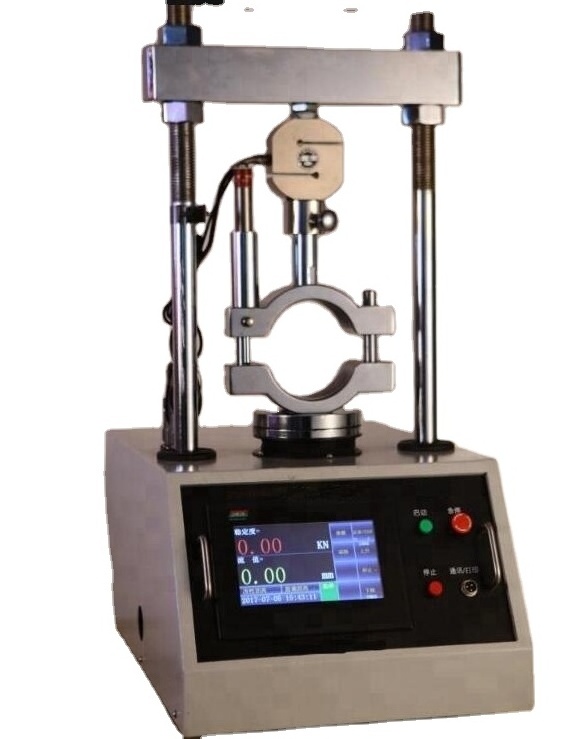

Desk Type Digital Marshall Compression Machine for Bitumen / Marshall Stability Machine
Introduction:
marshall stability test apparatus is used to do the Marshall stability test for bituminous materials.
Features:
1. marshall stability test apparatus has functions of parameters setting, measurement calibration, automatic test control, automatic data collection and timer. The control unit will collect the stability and flow value for sample and judge the peak value automatically.
2. LCD display shows the stability, flow value, curves, result and time. The test effect is intuitive.
3.
100 groups of test data and test time can be stored in the instrument and callout whenever needed. All
procedures will be controlled automatically.
4. RS232 communication port. Realize the communication with upper computer. The data process, store, print
and display can be controlled by a PC. Also the test procedures can be controlled by a PC.
5.
marshall stability test apparatus
also has functions for manual lifting, lowering and stopping. Convenient to use.
Note:100mm sample clamp is in standard accessory list for this instrument. Users can also select clamps as blow:
1. Sample clamp: 150mm, one piece
2. Sample clamp: 100mm and 150mm, one for each.
Specification:
| 1 |
Maximum load |
50kN |
| 2 |
Measuring range |
≤40kN |
| 3 |
Measuring bias |
≤±0.1kN |
| 4 |
Overload protection |
Automatically protect when load is over 39kN |
| 5 |
vertical deformation(flow value) |
Range 0~20mm, bias ≤±0.05mm |
| 6 |
Lifting rate for pressure machine |
(50±5) mm/min |
| 7 |
Communication port |
RS232 |
| 8 |
Power supply |
AC220V±10%,50Hz |
| 9 |
Ambient temperature |
0℃~60℃ |
| 10 |
Dimension |
600mm×380mm×840mm |
| 11 |
Motor power |
550W |
| 12 |
Net weight |
98kg |
