Quick Details
-
Weight:
-
1300 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1100*750*1010mm
-
Sheet Thickness (mm):
-
1.5-3mm
-
Max. Cutting Width (mm):
-
600
-
Max. Cutting Thickness (mm):
-
3
-
Voltage:
-
380V/customized
-
Raw material:
-
Steel
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support, online support, on-site maintenance
Quick Details
-
Marketing Type:
-
New
-
Brand Name:
-
Berkson Machinery
-
Condition:
-
New
-
Weight:
-
1300 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1100*750*1010mm
-
Sheet Thickness (mm):
-
1.5-3mm
-
Max. Cutting Width (mm):
-
600
-
Max. Cutting Thickness (mm):
-
3
-
Voltage:
-
380V/customized
-
Raw material:
-
Steel
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support, online support, on-site maintenance

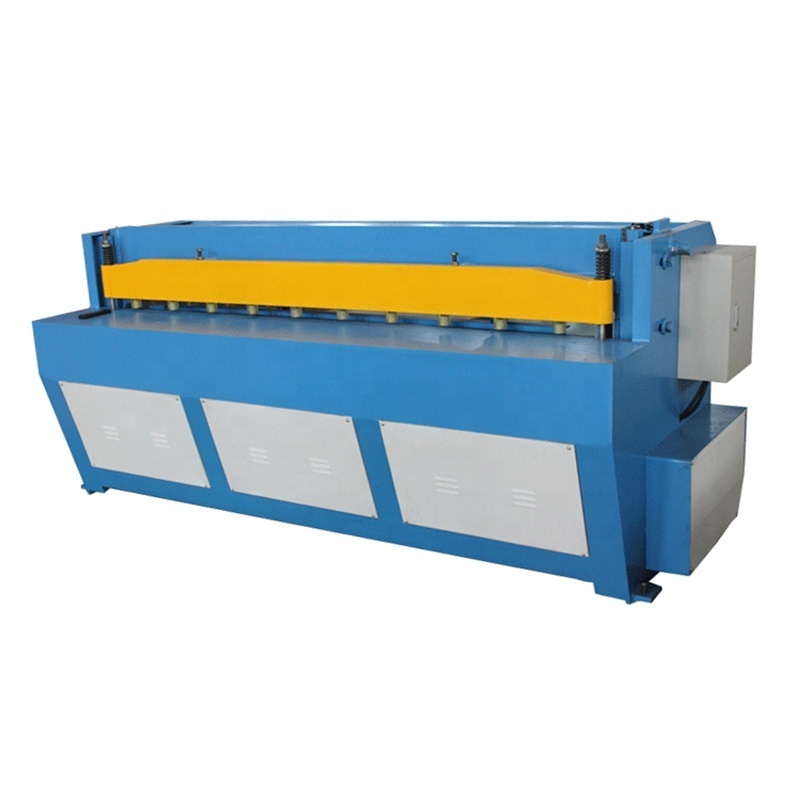

Electric Cutter Manual Sheet Metal Shear Small energy-saving electric shearing machine For Cutting galvanized sheet:
I. Electric Shearing Machine's Features:
The electric shearing machine is a newly improved one with reduction motor and no gears so that it requires less maintainance. Normally it's regarded as a necessary part of duct sheet metal shearing.
1. The whole machine body of electric shearing machine uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.
2. Electric shearing machine adopts guillotine upper transmission, and fitted with the brake device. 3. the blade of the
3. The blade of the electric shearing machine uses 6Cr2Si material, ensuring the good performance and long performance life.
4. The structure is simple,easy operation and low consumption.
II. Technical Parameters:
| Type | Number of strokes | Back gauge Rang | Pover | Dimension |
| Q11-2X1000 | 33 | 400 | 3kw | 1600x1000x1100mm |
| 011-2X1300 | 33 | 400 | 3kw | 1900x1000x1100mm |
| Q11-3X1000 | 33 | 400 | 4.5kw | 1600x1100x1200mm |
| Q11-3X1300 | 33 | 500 | 4.5kw | 1900x1100x1200mm |
| 011-3X1600 | 33 | 500 | 4.5kw | 2200x1100x1200mm |
| 011-3X2000 | 33 | 500 | 5.5kw | 2600x1100x1200mm |
| 011-4X1300 | 33 | 500 | 5.5kw | 1900x1100x1200mm |
| 011-4X1600 | 33 | 500 | 5.5kw | 2200x1100x1200mm |
| 011-2X2500 | 33 | 500 | 5.5kw | 3300x1100x1200mm |
