Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
18kw
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
1250*1100*1700mm
-
Application:
-
Cheese
-
Name:
-
Cheese Vat
-
Final product:
-
Mozzarella Cheese
-
Raw material:
-
Fresh Liquid Milk
-
Product name:
-
Dairy Products Equioment
-
Function:
-
Cheese Pressing
-
Keywords:
-
Make Dairy Products
-
Usage:
-
Mozzarella Cheese Processing Machinery Line
-
Processing Types:
-
Diary
-
Material:
-
SS 304
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mugworthe mech
-
Voltage:
-
220V/380V
-
Power:
-
18kw
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
1250*1100*1700mm
-
Application:
-
Cheese
-
Name:
-
Cheese Vat
-
Final product:
-
Mozzarella Cheese
-
Raw material:
-
Fresh Liquid Milk
-
Product name:
-
Dairy Products Equioment
-
Function:
-
Cheese Pressing
-
Keywords:
-
Make Dairy Products
-
Usage:
-
Mozzarella Cheese Processing Machinery Line
-
Processing Types:
-
Diary
-
Material:
-
SS 304
Product Description

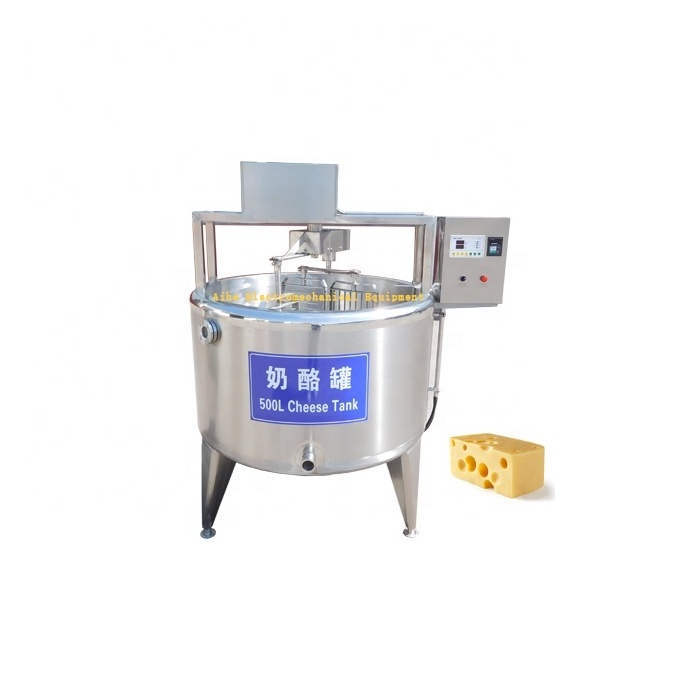

Multifunctional Cheese Vat Machine For Process Heating Milk Cheese Making
It is suitable for curd processing of most cheeses. Can body is three layer stainless steel structure with heating, inner and middle tank water jacket middle and outer tank insulation layer. Pasteurization and cooling of milk can be realized, and milk can be quickly cooled by cooling water through jacket.
At the same time, it is equipped with a temperature control box, which can accurately control the temperature. Under certain temperature conditions, milk is fermented in vats, and rennet is added to coagulate milk.
The machine is equipped with a curd cutter, which cuts the curd into small pieces of uniform size so that whey can be easily discharged.
The equipment is equipped with a large-diameter discharge port, which is located at the lowest point of the tank to facilitate the emptying of whey. After discharging the whey, empty and clean the whey in the curd tank to produce cheese again.
By auto controlling the temperature and stirring, the functions of mixing milk ingredients, milk fermentation, coagulation of milk with rennet, whey cutting, heating and cooling can be realized.
The inner tank is SUS304, the jacket is SUS304; the outer protective shell is SUS304,Filled with rock wool or polyurethane foaming agent to maintain the temperature difference with the outside world to achieve thermal insulation effect.
The surface is mirror-polished, processed into an R angle by spinning, welded with the inner tank and polished, and there is no dead angle after polishing, and the net material has no retention
Top center stirring, 0～36r/min (frequency adjustable)
Stirring paddle form: frame type, anchor type, paddle type, etc. (according to process requirements)
Specification
|
Model
|
AH-NLJ300
|
AH-NLJ500
|
|
Volume
|
300L
|
500L
|
|
Voltage
|
380V/50HZ/3Phase
|
380V/50HZ/3Phase
|
|
Heating power
|
18kw
|
24kW
|
|
Mixing power
|
0.55kw
|
0.55kw
|
|
Mixing Speed
|
0-36R/min
|
0-36R/min
|
|
Size
|
1250*1100*1700MM
|
1500*1200*1900MM
|
|
Material
|
SS304
|
SS304
|
