Quick Details
-
Optical Resolution:
-
1280 * 800 Pixels
-
Scan Speed:
-
200 Scans/sec
-
Brand Name:
-
Effon
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black
-
Product name:
-
Passport Reader 1D 2D QR Bar code Scanner Used in Robot for warehouse
-
Interface:
-
USB/RS232
-
IR/Light Triggers:
-
Auto Scanning
-
Advantage:
-
No need Drivers-Plug & Play
-
Certification test:
-
CE, FCC, Rohs, FCC, 1.5m drop test(500 times), IP54
-
Application:
-
Easy to be embedded, Fixed mount design for kiosks Used
-
Operating Temperature:
-
-20°C to 60°C / -4°F to 140°F
-
Barcode type:
-
Read all Mainstream 1D/2D Barcodes/ MRZ /OCR
-
OEM Service:
-
OEM service is accpted for Logo/label
-
Decode Capabilities:
-
1D + 2D + QR Code, PDF417
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
No
-
Optical Resolution:
-
1280 * 800 Pixels
-
Scan Speed:
-
200 Scans/sec
-
Brand Name:
-
Effon
-
Place of Origin:
-
Guangdong, China
-
color:
-
Black
-
Product name:
-
Passport Reader 1D 2D QR Bar code Scanner Used in Robot for warehouse
-
Interface:
-
USB/RS232
-
IR/Light Triggers:
-
Auto Scanning
-
Advantage:
-
No need Drivers-Plug & Play
-
Certification test:
-
CE, FCC, Rohs, FCC, 1.5m drop test(500 times), IP54
-
Application:
-
Easy to be embedded, Fixed mount design for kiosks Used
-
Operating Temperature:
-
-20°C to 60°C / -4°F to 140°F
-
Barcode type:
-
Read all Mainstream 1D/2D Barcodes/ MRZ /OCR
-
OEM Service:
-
OEM service is accpted for Logo/label
-
Decode Capabilities:
-
1D + 2D + QR Code, PDF417
Product Description
|
Product Name
|

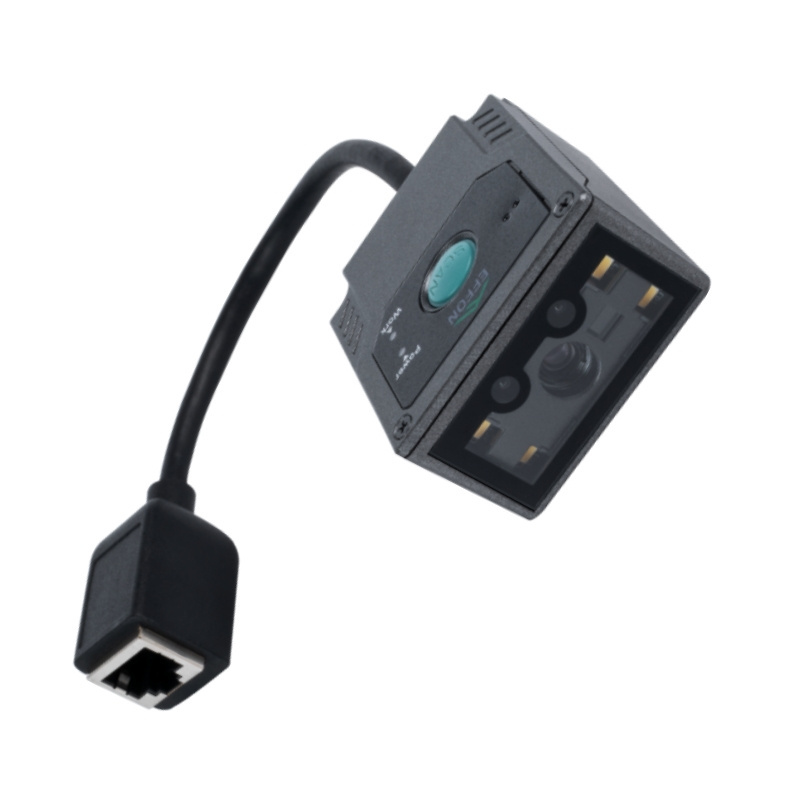

Small High Speed Passport OCR 2D Pen QR Bar Code Reader 1D Mini Industrial Barcode Scanner Used In Robot For Smart Warehouse
|
|
|
||
|
Keypoint
|
No need Drivers-Plug & Play
|
|
|
||
|
|
IR/Light Triggers·Auto Scanning
|
|
|
||
|
|
Easy to integrate into various solutions such as kiosks, ticketing machines
|
|
|
||
|
|
High Sensitivity
|
|
|
||
|
|
IP54-Sealed Housing
|
|
|
||
|
|
Unmatched Reading Performance
|
|
|
||
|
|
Easy to Configure & Update
|
|
|
||
|
Application
|
Airport E-Gates, Bank ATMs, Self-Service Terminal, Kiosks, SIM Card Vending Machine, Ticket Validators, Medical Device, Access Control Machine, Self-Service Pick Up Cabinet, Retail POS
|
|
|
||
|
Dimensions
|
41.5×49.5×24.3mm(L×H×D)
|
|
|
||
|
Weight
|
75g
|
|
|
||
|
Interface
|
USB and RS232
|
|
|
||
|
Voltage\ Current
|
5VDC, 400mA (Operating)
|
|
|
||
|
|
1280 * 800 CMOS
|
|
|
||
|
Field of View
|
Horizontal 51°, Vertical 32°
|
|
|
||
|
Roll / Pitch / Yaw
|
Roll: 360°, Pitch: ±55°, Skew:±55°
|
|
|
||
|
Scan Mode
|
Sense mode, Continuous mode, Level mode, Pulse mode
|
|
|
||
|
Notification
|
Beep, LED indicator
|
|
|
||
|
1D barcodes
|
EAN-13, EAN-8, UPC-A, UPC-E, Code, 128, Code 39, Codabar, UCC/EAN, 128, RSS, ITF, ITF-14, ITF6, Standard25, Matrix 25, COOP 25,
Industrial25, Plessey, MSI Plessey, Code 11,Code 93, Code 49, Code 16K, etc |
|
|
||
|
2D barcodes
|
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, MRZ, OCR etc.
|
|
|
||
|
Certificate
|
CE, FCC, Rohs, FCC, 1.5m drop test(500 times), IP54
|
|
|
||
