Quick Details
-
Thickness:
-
1.2mm 1.5mm 2.0mm
-
Color:
-
White
-
Width:
-
1m
-
Material:
-
tpo
-
Length:
-
20m/roll
-
Surface:
-
Smooth
Quick Details
-
Place of Origin:
-
Shandong, China
-
Type:
-
Waterproof Membrane
-
Product Name:
-
TPO Waterproof Membrane
-
Thickness:
-
1.2mm 1.5mm 2.0mm
-
Color:
-
White
-
Width:
-
1m
-
Material:
-
tpo
-
Length:
-
20m/roll
-
Surface:
-
Smooth
Product introduction

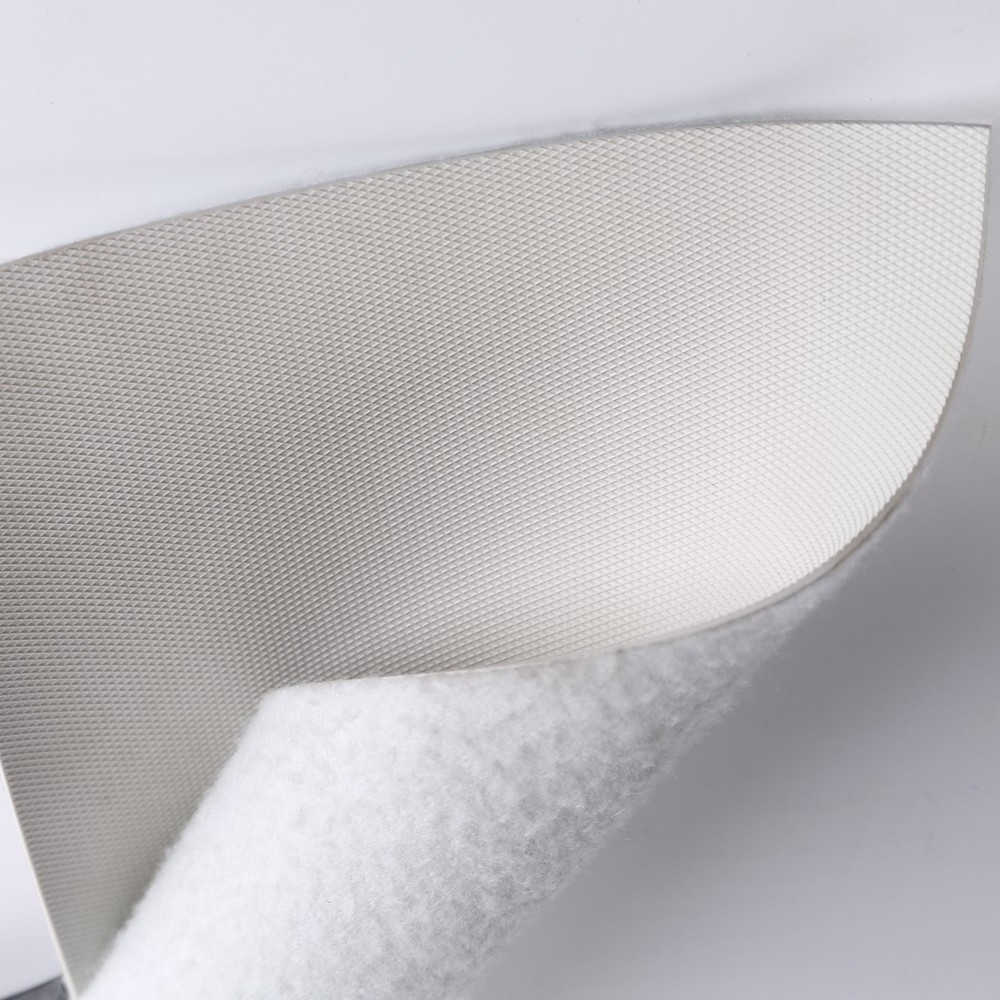

Thermoplastic Polyolefin (TPO) is a waterproof membrane. Its raw
material
is polymer
and can be reinforced with polyester mesh and with fabric backing,
manufactured by advanced extrusion machining technology.
Specifications
|
Item |
Specification |
||
|
Length(m) |
20m (Special specification can be customized) |
||
|
Width(m) |
Standard width 2.05m |
||
|
Thickness(mm) |
1.2mm |
1.5mm |
2.0mm |
advantage
1>Weather resistance and durability;
2>Excellent weld ability;
3>No any crisp agents to prevent materials brittleness;
4>Intermediate enhanced polyester mesh fabric to have high tensile strength, fatigue resistance and penetrating resistance suitable for mechanically attached roofing systems;
5>Excellent the same high and low temperature resistance as rubber materials which can keep flexible at -50° C and keep mechanical strength in high temperature;
6>Excellent chemical resistance to acids, bases, and restaurant exhaust emissions;
7>Dimension stability;
8>White-based light-color and smooth surface with high reflection, energy saving and anti-dust functions;
9>Use heat welding for the seam areas to form a reliable seamless waterproof layer.
| TPO Membrane | Standard: Q/0783WHY | ||||||
| NO. | Item | Unit | Value | ||||
| N | L | P | |||||
| I | II | ||||||
| 1 | Resin Thickness on Middle Mesh≥ | mm | 0.4 | 0.4 | |||
| 2 | Tensile Properties | Max. Strength ≥ | N/cm | - | 200 | 196 | 250 |
| Tensile Strength≥ | Mpa | 12 | - | - | - | ||
| Elongation at Max. Strength ≥ | - | - | 15 | 15 | |||
| Breaking Elongation ≥ | % | 500 | 250 | - | - | ||
| 3 | Dimensional Stability after Heat Treatment ≤ | % | 2 | 1 | 1 | 0.5 | |
| 4 | Foldability at Low Temperature | -40℃ No cracks | |||||
| 5 | Watertightness | 0.3Mpa, 2h No penetration | |||||
| 6 | Resistance to Impact | 0.5kg*m, No penetration | |||||
| 7 | Resistance to Static Loading | - | - | 20kgs No penetration | |||
| 8 | Joint Peel Strength | N/mm | 4.0 or membrane broken | 3 | |||
| 9 | Overlap Joint Strength ≥ | N | - | 290 | |||
| 10 | Right Angle Tearing Strength | N/mm | 60 | - | - | ||
| 11 | Joint Shear Resistance | N/mm | - | 245 | 245 | 450 | |
| 12 | Water Absorption (70℃, 168h) ≤ | % | 4 | 3 | |||
