Deken series speaker system is designed for the multi-function hall, multi-functional conference room to meet voice and music
compatible amplification requirements.
compatible amplification requirements.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SHOW Q30
-
Dimension:
-
W118mm* D125mm* H1091mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
480W
-
Format:
-
---
-
Product Name:
-
DEKEN SHOW Q30
-
Type:
-
6 unit full range frequency airtight loudspeaker
-
Power of the amplifier:
-
500W-1000W@8 Ω
-
Color:
-
Default is black, other colors can be customized
-
Frequency response(-10dB):
-
90Hz-18.5KHz
-
Enclosure:
-
12mm(0.5')MDF
-
Use:
-
Indoor Ourdoor Activities
-
Application:
-
Multifunctional hall, auditorium, lecture hall, conference room
-
Net Weight:
-
10.7kg
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
SHOW Q30
-
Dimension:
-
W118mm* D125mm* H1091mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
480W
-
Format:
-
---
-
Product Name:
-
DEKEN SHOW Q30
-
Type:
-
6 unit full range frequency airtight loudspeaker
-
Power of the amplifier:
-
500W-1000W@8 Ω
-
Color:
-
Default is black, other colors can be customized
-
Frequency response(-10dB):
-
90Hz-18.5KHz
-
Enclosure:
-
12mm(0.5')MDF
-
Use:
-
Indoor Ourdoor Activities
-
Application:
-
Multifunctional hall, auditorium, lecture hall, conference room
-
Net Weight:
-
10.7kg

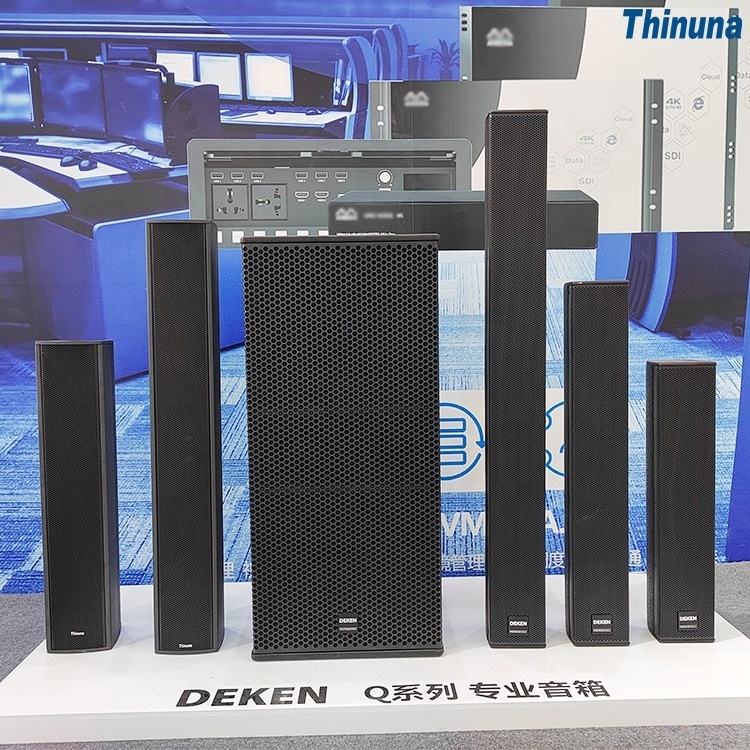

DEKEN SHOW Q30 Fashion sound column loudspeaker professional line array speakers design support speaker stands for stage
Products Description
-
Product performance description
-
Specification
|
Speaker model
|
SHOW Q30
|
|
System type
|
6 unit full range frequency airtight loudspeaker
|
|
Rated power
|
480W
|
|
Max power
|
960W
|
|
Peak power
|
1920W
|
|
Nominal impedance
|
8 Ω
|
|
Recommended power amplifier output rating
|
500W—1000W@8 Ω
|
|
Nominal sensitivity（1W@1m）
|
99dB
|
|
Max SPL（Pmax@1m）
|
126dB@480W(129dB@960W)
|
|
Frequency response（-10dB）
|
90Hz-18.5KHz
|
|
Nominal coverage pattern（-6dB）
|
90°H×20°V
|
|
Speaker component
|
Full range driver 3″（75mm diameter 20mm voice coil）×12
|
|
Crossover modes
|
-----
|
|
Connector
|
Standard 4PIN phoenix connector
|
|
Enclosure
|
12mm（0.5″）MDF
|
|
Color
|
Default is black, other colors can be customized
|
|
Dimensions
|
W118mm x D125mm x H1091mm
|
|
Weight(each)
|
10.7kg
|
|
Shipping weight
|
11.9kg
|
|
Reference applications:
|
Multifunctional hall, auditorium, lecture hall, conference room
|
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
