Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Routing Protocol:
-
Static route, RIP1/RIP2
-
Power supply:
-
DC 12V 1A
-
Warranty:
-
12 Months
-
RAM:
-
64MB
-
Single package size:
-
23.8X11.3X7 cm
-
Chipset:
-
MT7628NN
-
Antenna:
-
4* 5dBi Antennas
-
Single gross weight:
-
1.200 kg
-
PPP over Ethernet:
-
YES
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Routing Protocol:
-
Static route, RIP1/RIP2
-
Power supply:
-
DC 12V 1A
-
Warranty:
-
12 Months
-
RAM:
-
64MB
-
Single package size:
-
23.8X11.3X7 cm
-
Chipset:
-
MT7628NN
-
Antenna:
-
4* 5dBi Antennas
-
Single gross weight:
-
1.200 kg
-
PPP over Ethernet:
-
YES
Related Products
Feature
Cutting-edge 4G network – share internet access with up to 30 Wi-Fi devices and enjoy download speeds of up to 300 Mbps;
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests;
Two advanced LTE antennasand Two WIFI antenna – enjoy stable and efficient connections to every device thanks to the two external antennas;
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection;
Cutting-edge 4G network – share internet access with up to 30 Wi-Fi devices and enjoy download speeds of up to 300 Mbps;
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests;
Two advanced LTE antennasand Two WIFI antenna – enjoy stable and efficient connections to every device thanks to the two external antennas;
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection;
Description
1) Support 3G, 4G LTE wireless network technology.
2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard
5) 1* WAN port, 3* LAN ports
6) More than 6 hours working time
7) Support up to 30 users
8) 300Mbps WiFi
1) Support 3G, 4G LTE wireless network technology.
2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard
5) 1* WAN port, 3* LAN ports
6) More than 6 hours working time
7) Support up to 30 users
8) 300Mbps WiFi
Product Description
|
Chipset
|
MT7628NN
|
|
||
|
Power input port
|
DC 12V---1A
|
|
||
|
WAN Port
|
1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
|
|
||
|
LAN Port
|
3 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
|
|
||
|
WPS/Reset Buttons
|
Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.)
|
|
||
|
Power button
|
Router's power switch (not required)
|
|
||
|
LED indication
|
1,power supply
2,System (dial status, indiscriminate wired or wireless) 3,3/4G:Blue-green light indicates 3G, 4G status 4,WIFI Indication 5,WAN Interfaces; 6,LAN1; 7,LAN2; 8,LAN3 |
|
||
|
Storage
|
SDRAM: 64M Bytes Nor Flash: 8M Bytes
|
|
||
|
Wireless parameters
|
|
|
||
|
WIFI Frequency range
|
|
FCC: 2412-2462MHz(Ch1-Ch11)
ETSI: 2412-2472MHz(Ch1-Ch13) |
||
|
Mobile network frequency
|
|
FDD: B1 B3 B5 B8,
TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8 |
||
|
Transmission rate
|
|
11n:270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps |
||
|
|
|
11g:54/48/36/24/18/12/9/6M(Adaptive)
|
||
|
|
|
11b:11/5.5/2/1M(Adaptive)
|
||
|
Number of working channels
|
|
13
|
||
|
Spread Spectrum Technology
|
|
DSSS(Direct Sequence Spread Spectrum)
|
||
|
Data modulation method
|
|
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
|
||
|
Sensitivity @PER (error packet rate)
|
|
270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8%
PER |
||
|
Transmission distance
|
|
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
|
||
|
RF Power
|
|
11n : 15±dBm;
11g : 17±1dBm; 11b : 19±1dBm(Typical value) |
||
|
LTE related hardware
|
|
|
||
|

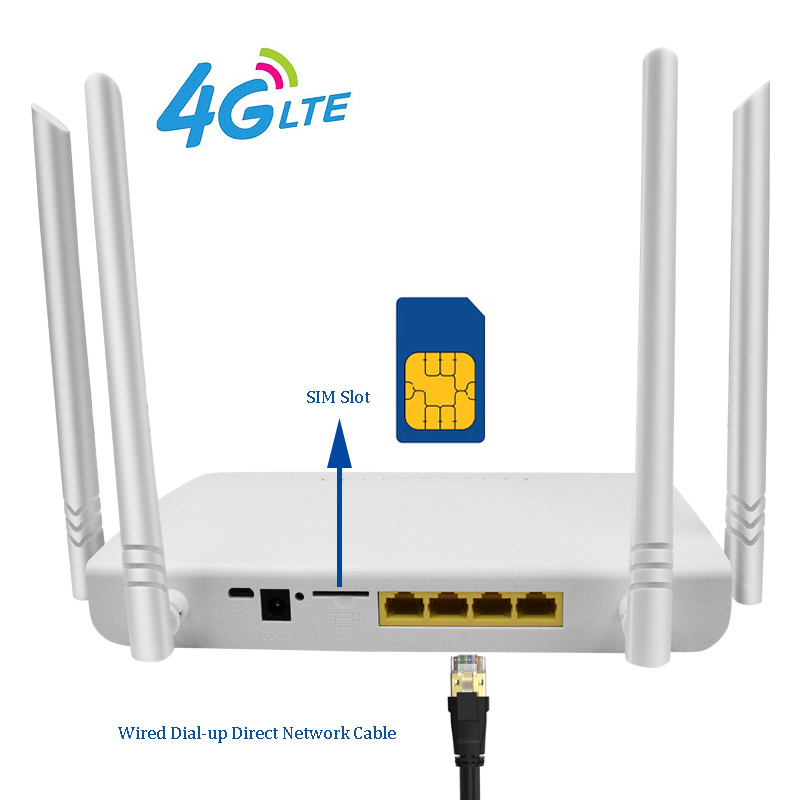

SIM Card Slot
|
|
Rear flip SIM card Slot
|
||
|
Antennas
|
|
External 4 antenna, corresponding to 4G main antenna, wifi dual antenna
|
||
|
Router software features
|
|
|
||
|
IP Address
|
|
Static or dynamic
|
||
|
PPP over Ethernet
|
|
YES
|
||
|
The maximum number of users
|
|
32 (Simultaneous Internet access)
|
||
|
Routing Protocol
|
|
Static route, RIP1/RIP2
|
||
|
Configuration & Management
|
|
Based on WEB interface management (HTTP)
|
||
|
DHCP
|
|
Support Server and Client
|
||
|
Firewall protection
|
|
Built-in NAT firewall
|
||
Product Photos
