Quick Details
-
Input:
-
Two GigE IP
-
Output:
-
Two GigE IP
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Audio encoding:
-
MPEG-1 Layer II, AAC, AC3, AMR, WMA, MP3
-
Streaming Procotol:
-
HLS/RTMP/RTMPS/SRT/UDP/RTP/RTSP/HTTP/MMS/FTP/HLS
-
Transcoder Channels out:
-
25*SD, 12*720P, 8*1080P
-
Application Fields:
-
IPTV OTT System
-
Function:
-
Reduce bandwith, low bitrate,
-
Product name:
-

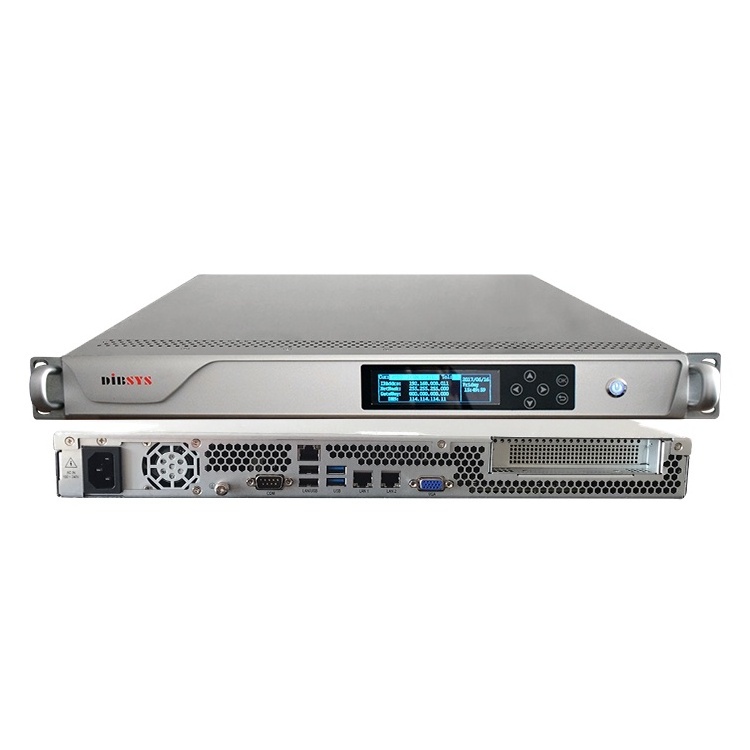

IPTV Streaming Server
-
Keyword:
-
Digital Headend Transcoder
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
Caster-T322
-
Input:
-
Two GigE IP
-
Output:
-
Two GigE IP
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Audio encoding:
-
MPEG-1 Layer II, AAC, AC3, AMR, WMA, MP3
-
Streaming Procotol:
-
HLS/RTMP/RTMPS/SRT/UDP/RTP/RTSP/HTTP/MMS/FTP/HLS
-
Transcoder Channels out:
-
25*SD, 12*720P, 8*1080P
-
Application Fields:
-
IPTV OTT System
-
Function:
-
Reduce bandwith, low bitrate,
-
Product name:
-
IPTV Streaming Server
-
Keyword:
-
Digital Headend Transcoder
Features
●High density 1-RU platform can transcode up to 25*SD or 12*720p or 8*Full HD profiles
●Optimized for 1500 Kbps for SD, 4Mbps for HD 720p,6Mbps for HD 1080p
●Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
●Optional H.265 transcodes by software licensed
●Baseline, main profile & high profile with variable GOP
●Mulltiple Codec, Protocol, Bitrate,Resolution, Profile per channel
●Picture-in-picture (PIP) operation supported
●HD-to-SD down, SD-to-HD up conversion
●GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files
●Flexible GOP structures with Reference-frame and B-frame edit
●Frame rate down- and up-conversion
●High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
●Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
●Based on embedded Ubuntu Linux via flashdisk
●DVB Subtitle and Logo insertion
●High contrast LCD display
●Parameter template settings and imports
●Real time preview of input video stream in encoding and parameter configuration
●Easy configuration via Web GUI
●Designed for secure 24*365 operation
Main Application
●Distribute HD Video to Ethernet
●Transcoding low bitrate in limited bandwidth of Ethernet for Cable TV operator
● IPTV live stream transcoding
●Transcoding for multi-screens and devices
●Small/Middle-Scale Headends for Multiple System Operators
|
Inputs and Outputs
|
|
|
|
|
Two Gig Ethernet Ports, RJ45 100/1000M - Auto Negot
|
|
|
|
MPEG-TS(MPTS ors SPTS) Over IP input
|
|
|
|
MPEG-2 TS (SPTS) Over IP out
|
|
|
|
TS Over UDP/RTP/HTTP
|
|
|
|
RTP over HTTP
|
|
|
|
FLV Over HTTP
|
|
|
|
RTMP
|
|
|
|
MP3 over HTTP
|
|
|
|
FLV
|
|
|
|
ASP
|
|
|
|
HTTP Live streaming Apple HLS (m3u8)
|
|
|
Pre-processing
|
|
|
|
LOGO insertion
Subtitle Overlay |
Option Static or roll subtitle, up to 3 way
|
|
|
|
|
|
|
Deinterlace
|
default, Close, Linear, Blend, Bob, Yadif
|
|
|
PID Configuration
|
PMT/Video/Audio PID;
|
|
|
|
PCR delay/disp interval
|
|
|
Advanced Processing
|
De-blocking filter, Scene detection, Automatic MBAFF,CABAC Entropy Encoding
|
|
|
Video Processing
|
|
|
|
Bitrate Control
|
VBR, CBR, ABR, NearCBR
|
|
|
Frame rate
|
2-30fps
|
|
|
Screen Ratio
|
4:3, 16:9
|
|
|
Option Multiple concurrent outputs per each encoding input
|
|
|
|
|
H.263 Profile Levels 10, 20, 30
MPEG-4 SP, Levels 0, 0b, 1, 2, 3 H.264 Baseline Levels 1, 2, 3 H.264 Main/High Profile 3.0- 5.1 |
|
|
Encoding delay
|
1000-2000ms
|
|
|
B-Frame
|
0-5
|
|
|
Reference Frame
|
1-6
|
|
|
Key frame rate
|
1-18
|
|
|
Video Bitrate
|
32kbps to 10Mbps
|
|
|
Enhancement filter
|
Deinterlacing; MABFF CABAC; Noise reduction;
Sharpening; Visual Optimizing |
|
|
Video Delay
|
0-1000ms
|
|
|
Scale
|
Ordinary, Auto Paddingintelligent Scale
|
|
|
Fast Mode
|
Quality Priority,Balanced, Speed Priority
|
|
|
MPEG-2 Input
|
H.264 Output
|
Qty
|
|
SD/480i inputs @4 Mbps
|
SD @2Mbps, 480i
|
25
|
|
720p inputs @10 Mbps
|
720p @4Mbps
|
12
|
|
1080i/p inputs @18Mbps
|
1080p @ 6Mbps
|
5
|
|
Audio Encoding
|
|
|
|
Numbers of encoding
|
2 audio Channels per one video source
(Provides up to 8 audio channels for customization)
|
|
|
|
AAC,AACv2,AMR
DD(AC-3)/DD Plus(EAC-3) MP2A,MP3A,Transparent |
|
|
Audio Channel
|
Single, Dual, 5.1 Channel
|
|
|
Audio Track
|
0, 1, 2, 3
|
|
|
AV Sync
|
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
|
|
|
Sample rate
|
8khz to 48khz
|
|
|
Bitrate rate
|
8kbps to 384kbps
|
|
|
Volume
|
Ordinary,Intensity1,Intensity2,Intensity3
|
|
|
AGC
|
On, Off
|
|
|
Management
|
|
|
|
Local interface
|
LCD + control buttons
|
|
|
Configuration
|
Web Interface
|
|
|
Port
|
RJ45, 10/100/1000M BaseT
|
|
|
Language
|
English
|
|
|
Environment
|
|
|
|
Power Supply
|
110-240 VAC
|
|
|
Operation temperature
|
0~50℃ (32 -122°F)
|
|
|
Storage temperature
|
-40-70°C (-40-158°F)
|
|
|
Power Consumption
|
100W
|
|
|
Dimensions
|
483mm (W) x 534mm (L) x 45mm (H)
|
|
|
Weight
|
11kg (24lbs)
|
|
