Adiabatic Cooling Pad Systems Hybrid Dry Air Cooler

Adiabatic Cooling Pad Systems Hybrid Dry Air Cooler

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4500

≥50 Pieces

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: vrcooler

Core Components:: condenser

Weight (KG):: 100 KG

Tube material:: stainless steel, aluminum, hot dip carbon steel

Fin material:: Aluminum, stainless steel, hot dip carbon steel

Frame material:: stainless steel, aluminum, hot dip carbon steel

Fin space:: 5-20mm

Defrost:: Hot Gas Defrost, Electrical Defrost, Water Defrost

After Warranty Service:: Video technical support

Quick Details

Type:: Cabinet Air Conditioner

Mounting:: Floor Standing

Airflow:: 3500m³/h

Place of Origin:: Jiangsu, China

Brand Name:: vrcooler

Core Components:: condenser

Weight (KG):: 100 KG

Tube material:: stainless steel, aluminum, hot dip carbon steel

Fin material:: Aluminum, stainless steel, hot dip carbon steel

Frame material:: stainless steel, aluminum, hot dip carbon steel

Fin space:: 5-20mm

Defrost:: Hot Gas Defrost, Electrical Defrost, Water Defrost

After Warranty Service:: Video technical support

Product description

1. Material options

·Heavy-gauge hot-dip galvanized steel is used for unit steel panels and structural elements featuring a zinc aluminium coating.

2. Heat transfer media

·The dry cooler is constructed of staggered and seamless copper tubes (15,9 or 12,7 diameter) with aluminium, rippled and corrugated fins (0,14 or 0,17 thickness). ·2,5 mm fin spacing for optimal air turbulence ·Thick and seamless copper headers and threaded steel connections ·Pressure tested at 15 bar ·Try our options for aggressive environments: special pre-coated anti-corrosion aluminium fins or copper fins (0,2 mm thickness).

3. Air movement system

·Axial fan with exceptionally compact direct drive short integrated motor and fan guard. ·The fan features an impeller and motor and is balanced as a complete unit using dynamic single plane balancing. Balance grade is G6.3. ·Fan and motor totally maintenance free.

The Adiabatic Cooling Pad Systems Hybrid Dry Air Cooler is an advanced cooling solution that combines the efficiency of adiabatic cooling with the reliability of traditional air cooling methods. This innovative system is designed to provide effective and energy-efficient cooling for various industrial and commercial applications, ensuring optimal temperature control while minimizing water consumption.

Adiabatic Cooling Technology:

The system utilizes adiabatic cooling, a process that harnesses the evaporative properties of water to cool down the air. As warm air passes through the wet cooling pads, water evaporation occurs, absorbing heat from the air and significantly reducing its temperature. This eco-friendly cooling method allows for substantial energy savings compared to conventional cooling systems.

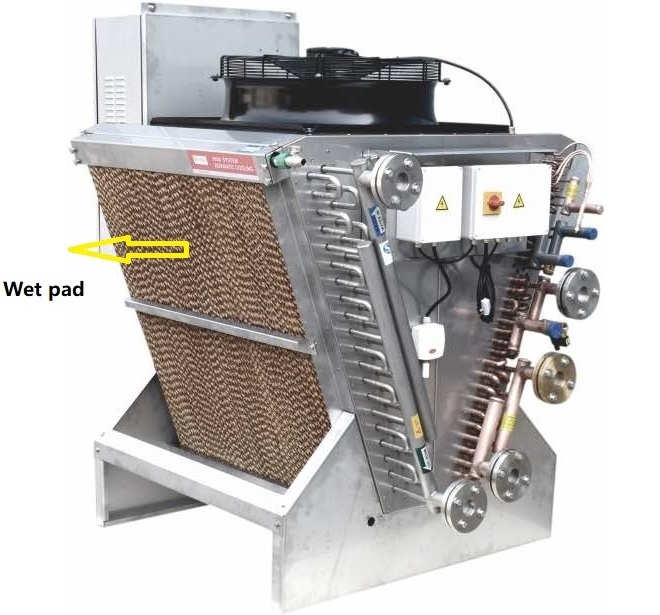

High-Quality Cooling Pads:

The cooling pads used in the system are made from high-quality cellulose or synthetic materials. These pads have a large surface area and excellent water retention capacity, ensuring effective cooling performance. The pads are designed to be easily replaceable, providing convenience and long-term usability.

Applications: This hybrid dry air cooler system is ideal for a wide range of applications, including industrial facilities, data centers, commercial buildings, warehouses, and more. It effectively cools large spaces, equipment, and processes, ensuring a comfortable and controlled environment.

Case study

Projects name: Dry cooler for Sweden Garbage industry

Customer's request: Outdoor temp -20 to +30 driving all year, Water 10000 liters/houer In temp 80dg Out about 40c, Fan power 400volt 50Hz, Montage on the roof outdoor we have 3” pip up and down, Size inside 20 feet container

Our first solution:

Customer's first feedback: This is a plane cooler, I want v type. I want about 2 meter x 5 meter v type. I want to have as big as possible V type. I’m going to montage more hydraulic pumps now. I don’t know what I need but pleas offer 1 ho fits in 20 feet container and then I fix the rest here in Sweden. To day we have 10 m3/h, But I can have less if you want. We are cooling water and then oil from the water.

Our reply: The cooler we designed is enough to cool the 10m3/h water. Will you increase the flow rate in the future? Of course we can change our design to a V-type cooler.

Customer: Yes we will total have 40m3 Water in the future but maybe its better to take 2pc v type for 20m3 Please offer 2pc v type for 20m3/h.

Our second solution:

Colombia dry cooler for injection machine

Britain dry cooler for steam turbine

Japan dual system radiator for engine

New Zealand cooler for power industry

Saudi Arabia project for data center

Canada projects for server farm

Engineering Data

We have customized products for many customers, following are some projects we did before.

We can provide designing data and production drawings.

We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world. All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
