Quick Details
-
Year:
-
2022
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
3800x1200x1900mm
-
Motor Power (kW):
-
11
-
Weight (T):
-
2
-
Product name:
-
Hydraulic Hole Punching Machine
-
Machine Type:
-
Hydraulic Press
-
Function:
-
Punching Shearing Bending
-
Name:
-
Q35Y
-
Color:
-
customizable
-
Keyword:
-
Q35Y Mechanical Punching Machine
-
Electric parts:
-
Optional
-
Usage:
-
Metal Sheet Rolling Cutting Bending
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
Certification:
-
ISO CE
Quick Details
-
Nominal Force (kN):
-
160
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
classic
-
Year:
-
2022
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
3800x1200x1900mm
-
Motor Power (kW):
-
11
-
Weight (T):
-
2
-
Product name:
-
Hydraulic Hole Punching Machine
-
Machine Type:
-
Hydraulic Press
-
Function:
-
Punching Shearing Bending
-
Name:
-
Q35Y
-
Color:
-
customizable
-
Keyword:
-
Q35Y Mechanical Punching Machine
-
Electric parts:
-
Optional
-
Usage:
-
Metal Sheet Rolling Cutting Bending
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
Certification:
-
ISO CE
Products Description
Product Application

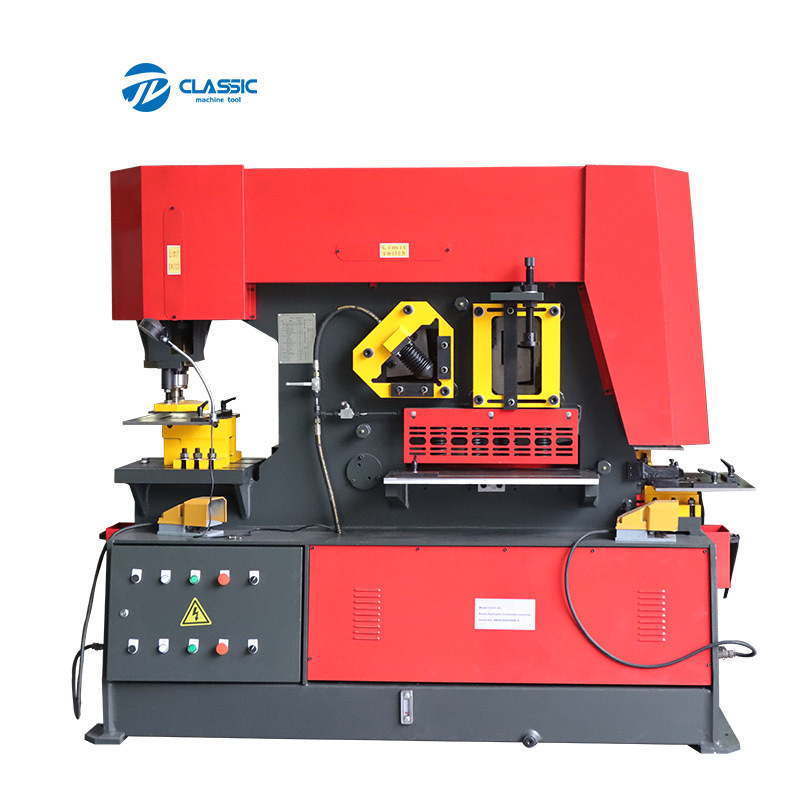

The multi functional iron worker(Q35series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar,channel and so on. It has another special function, that is , it can also bend the plate below 500mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety ,function, capability and maintenance.
The multi functional iron worker(Q35series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar,channel and so on. It has another special function, that is , it can also bend the plate below 500mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety ,function, capability and maintenance.
|
Model
|
Q35Y-16 (IW-60)
|
Q35Y-20 ( IW-90)
|
Q35Y-25 (IW-120)
|
Q35Y-30 (IW-140)
|
|
Working pressure（KN）
|
600
|
900
|
1200
|
1400
|
|
Max. cutting thickness（mm）
|
16
|
20
|
25
|
26
|
|
Max. cutting length(mm)
|
400
|
480
|
600
|
600
|
|
Tensile strength of sheet metal
|
≤450
|
≤450
|
≤450
|
≤450
|
|
PUNCHING METRIC(mm)
|
|
|
|
|
|
Max. Capacities
|
25×16
|
30×20
|
35×25
|
38×26
|
|
Max. Stroke Length
|
80
|
80
|
80
|
80
|
|
Throat Depth Standard
|
305
|
355
|
400
|
600
|
|
Working Height
|
1030
|
1084
|
1142
|
1209
|
|
SHEARING
|
|
|
|
|
|
Flat Bar
|
250×16
|
330×20
|
300×25
|
355×30
|
|
Alternative
|
400×8
|
480×10
|
600×16
|
600×20
|
|
Blade Length
|
410
|
485
|
620
|
610
|
|
Working Height
|
890
|
894
|
891
|
897
|
|
ANGEL CUTTING
|
|
|
|
|
|
At 90°cut
|
125x125×12
|
140x140×12
|
160×160x16
|
180x180×16
|
|
At 45°Mitre
|
70×10
|
70×10
|
70×10
|
70×10
|
|
Working Height
|
1130
|
1139
|
1200
|
1220
|
|
SECTION CUTTING
|
|
|
|
|
|
Round / Square Bar
|
45
|
50
|
60
|
65
|
|
Channel / I bar
|
130×65
|
160×88
|
200x100
|
280×122
|
|
T bar
|
90×12
|
90×12
|
90×12
|
90×12
|
|
NOTCHING
|
|
|
|
|
|
Material Thickness
|
10
|
13
|
14
|
16
|
|
Width
|
57
|
57
|
57
|
57
|
|
Depth: Vee -Rect.
|
60-90
|
60-90
|
60-90
|
60-90
|
|
Working Height
|
890
|
883
|
886
|
898
|
Detailed Images
Details Display
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2.
What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
