Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPTEN
-
Model Number:
-
TK428
-
Usage:
-
Auto
-
Model:
-
TK428
-
Size of the main unit:
-
52*38*26mm
-
Weight of the main unit:
-
55g
-
GSM frequencies:
-
4G
-
Working temperature:
-
-20 ~ 85°C
-
Humidity:
-
0 ~ 95%
-
Feature:
-
OBD connector
-
Inside Backup battery:
-
Rechargeable 3.7V 230mAh Li-ion battery
-
Receiving sensibility:
-
-162db
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
1MB
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPTEN
-
Model Number:
-
TK428
-
Usage:
-
Auto
-
Model:
-
TK428
-
Size of the main unit:
-
52*38*26mm
-
Weight of the main unit:
-
55g
-
GSM frequencies:
-
4G
-
Working temperature:
-
-20 ~ 85°C
-
Humidity:
-
0 ~ 95%
-
Feature:
-
OBD connector
-
Inside Backup battery:
-
Rechargeable 3.7V 230mAh Li-ion battery
-
Receiving sensibility:
-
-162db

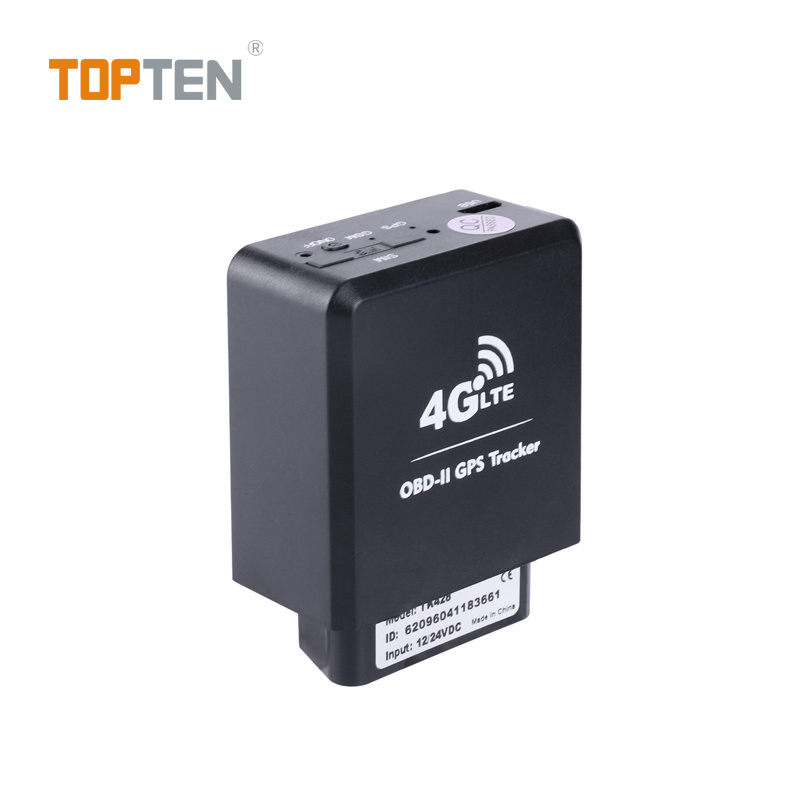

OBD II 4G LTE GPS Tracker OBD2 GPS Tracking device With Diagnostic Function Scanner,Online monotoring software
TK 42 8 OBD-II GPS tracker can also be used to do vehicle's telemetry via OBD connector, it can read the vehicle's ECU's data (speed, rpm, odometer, speed, fuel consumption, harsh acceleration , harsh brake, DTC co de , driver behavior data...etc) via CAN-BUS.
1. Plug & play design with OBD-II connector , compatible with all the vehicles with OBD-II connector, supports most of vehicles with the CAN-BUS ;
2. Track on command or by time interval via SMS/GPRS;
3. Arm / disarm by SMS or phone call.
4. Check the car ’ s real physical address (such as city name, street name.) ;
5. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
6. Check the location directly by the Google map ’ s URL;
7. Data logger to store 8000 waypoints.
8. Smart engine ON/OFF detection;
9. Odometer function
10. Over-speed al arm ;
11. Movement al arm which can be used as an alarm ;
12. Engine on alarm;
13. Vibration alarm;
14. Power failure alarm, with internal rec hargeable backup battery;
15. Acceleration & d eceleration(crash) alarm ;
16. Turn-over alarm ;
17. Tr ailer alarm;
18. Routine optimization when vehicle turn s a corner ;
19. O TA function (firmware upgraded on air);
20. Voltage range: 10V-60VDC , suitable for car or big truck.
21. Reliable design of framework with hardware watchdog.
22. P ower save working mode.
23. Remote diagnostics function. T ransmission of the CANBUS data via GPRS network : (1) Vehicle's real-time data: b attery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times; (2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
|
Working voltage : |
+10.0 ~+60 VDC |
|
Power Consumption:
|
Working current: 3 2mA ; S leep mode current: 15~18 mA; |
|
Inside Backup battery: |
Rec hargeable 3.7V 2 50mAh Li-ion battery |
|
Size of the main unit: |
54.0*51.5*28.5(mm) |
|
Weight of the main unit: |
73g |
|
Working temperature : |
-20 ~ 85 ℃ |
|
Humidity : |
0 ~ 95% |
|
F requencies : |
TK428 : GSM: 900MHz/1800MHz W CDMA:B1/B8, TD- SCDMA: B34/B39 LTE-FDD :B1/B3/B5/B8 ( optional B7/B20) LTE-TDD:B34/B38/B39/B40/41 |
|
|
TK428-M1: GSM: 850MHz/900MHz/1800MHz/1900MHz Cat M1 & NB1: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B26/B28 LTE TDD: B39 (for Cat M1 only) |
|
Receiving ways |
5 6 channels |
|
Working frequencies |
1575.42Mhz C/A( GPS ) |
|
Receiving sensibility |
-1 62dBm |
|
Positioning accuracy |
≤ 10 m (wide-open area) |
|
Speed accuracy |
≤0.2M/S (wide-open area) |
|
Positioning mode |
Auto 2D/3D |
|
Hot start |
1 sec., average |
|
Warm start |
2 sec., average |
|
Cold start |
40 sec., average |
gps Topten GPS Real-time Tracking plaform
Delivery:
<500pcs: Products will be delivered within 3 working days upon receipt of payment.
>=500pcs: Products will be delivered wind two weeks upon receipt of payment.
Warranty:
All products are provided with 12 months warranty and 3-year maintenance.
