Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHLNP
-

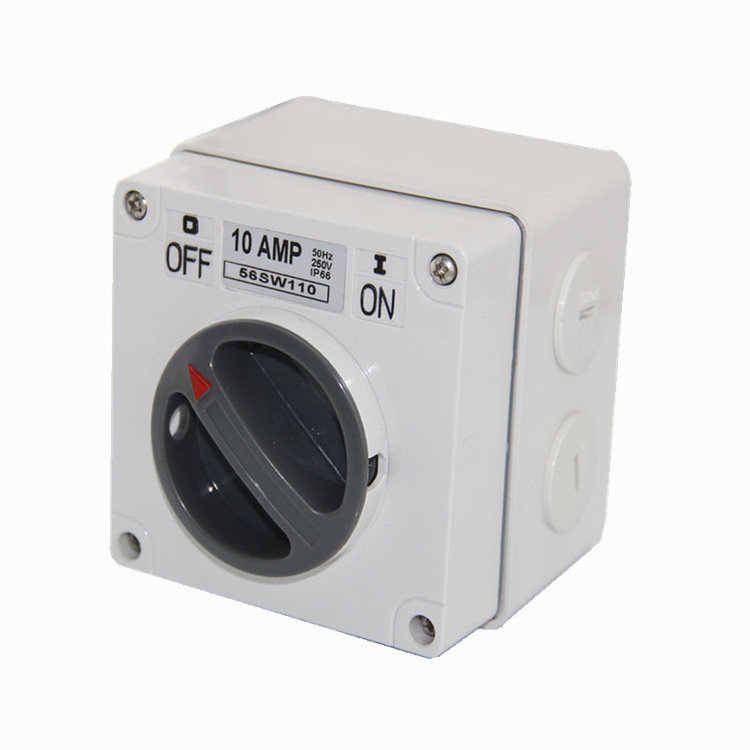

Model Number:
-
56SW110
-
Model NO.:
-
56SW
-
Nominal Voltage:
-
250V 500V
-
Ceteficate:
-
SAA
-
Rated:
-
IP66
-
Cable Entry Diameter(Min-Max):
-
10-27
-
HS Code:
-
85365000
-
Color:
-
White
-
Material:
-
PC+Copper
Quick Details
-
Rated Voltage:
-
250V/500V
-
Rated Current:
-
15A, 10A-63A
-
Application:
-
Industrial
-
WIFI:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHLNP
-
Model Number:
-
56SW110
-
Model NO.:
-
56SW
-
Nominal Voltage:
-
250V 500V
-
Ceteficate:
-
SAA
-
Rated:
-
IP66
-
Cable Entry Diameter(Min-Max):
-
10-27
-
HS Code:
-
85365000
-
Color:
-
White
-
Material:
-
PC+Copper
- Austrialian Standard to suit the Australian and New Zealand Market
- All plugs have impact Resistant, UV stabilise mouldings.
- IP66 rated units feature a hose proof cap which maintains the international protection rating when the accessory is not being used
- Resistance to severe weather and ageing .
- Good space stability and accuracy .
- Effectively prevent power outages and leakage .
- Protection class: IP66 rated
- Current: 10A, 15A, 20A, 32A
- Max voltage: 250/500VAC
- Phase: Three phase
- Material: PC
- Product code: 56PA310/ 56PA320/ 56PA332
- Certificates: SAA,CE, ROHS
| Code No. | Pole No. | Current | Voltage | IP rating |
| 56SW210 | 2 | 10A | 250Vac | IP66 |
| 56SW216 | 2 | 16A | 250Vac | |
| 56SW220 | 2 | 20A | 250Vac | |
| 56SW232 | 2 | 32A | 250Vac | |
| 56SW310 | 3 | 10A | 500Vac | |
| 56SW316 | 3 | 16A | 500Vac | |
| 56SW320 | 3 | 20A | 500Vac | |
| 56SW332 | 3 | 32A | 500Vac | |
| 56SW340 | 3 | 40A | 500Vac | |
| 56SW350 | 3 | 50A | 500Vac | |
| 56SW363 | 3 | 63A | 500Vac |
