Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiangyin Changjiang electric
-
Model Number:
-
LA38-**X2D/203
-
Product name:
-

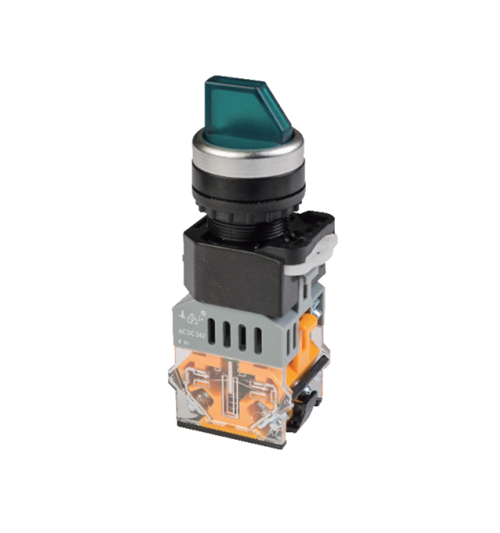

22mm plastic 2 position selector rotary illuminated push button switch
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
safety cover:
-
AQG7 Transparent protective cover
-
Certificate:
-
CCC CE ROSH
-
Function:
-
Momentary 1NO1NC
-
LED color:
-
Red.yellow.green.white.blue.orange.chartreuse
-
Application:
-
Industrial Control
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54/IP65
-
Max. Current:
-
AC-15 220V/5.5A
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiangyin Changjiang electric
-
Model Number:
-
LA38-**X2D/203
-
Product name:
-
22mm plastic 2 position selector rotary illuminated push button switch
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
safety cover:
-
AQG7 Transparent protective cover
-
Certificate:
-
CCC CE ROSH
-
Function:
-
Momentary 1NO1NC
-
LED color:
-
Red.yellow.green.white.blue.orange.chartreuse
-
Application:
-
Industrial Control
-
Certification:
-
CE
Product Overview
LA38 series push button switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Detailed Images
Product Parameter
|
Type specification
|
LA38-**X2D/203
(**means contact,10:1NO, 01:1NC, 11:1NO+1NC, 20: 2NO, 02: 2NC,6 pairs of contacts at most )
|
|
|
|
|
|
|||||
|
Product Name
|
illuminated 2 position push button switch
|
|
|
|
|
|
|||||
|
Products Standard
|
GB/T 14048.5
|
|
|
|
|
|
|||||
|
Operation Condition
|
Altitude height
|
Environment temperature
|
Storage
temperature
|
Relative humidity
|
Pollution class
|
Install type
|
|||||
|
|
≤2000m
|
-25℃~+55℃
|
-40℃~+70℃
|
≤90%
|
3
|
Ⅲ
|
|||||
|
Main technical index
|
Common parameter
|
Rated insulated Voltage
|
500V
|
|
|
|
|||||
|
|
|
Rated shock withstand voltage
|
4000V
|
|
|
|
|||||
|
|
|
Insulation resistance
|
≥50MΩ
|
|
|
|
|||||
|
|
|
Front panel protection degree
|
IP54，IP65 customizable
|
|
|
|
|||||
|
|
|
power frequency withstand voltage
|
1.89KV/5S
|
|
|
|
|||||
|
|
Button parameters
|
Resistive current
|
10A
|
|
|
|
|||||
|
|
|
Contact Resistance
|
≤50mΩ
|
|
|
|
|||||
|
|
|
Rated working Voltage /Current
|
AC-15
|
|
DC-13
|
|
|||||
|
|
|
|
380V/4A
|
220V/5.5A
|
110V/1A
|
220V/0.45A
|
|||||
|
|
|
Electrical life
|
100,000 times
|
|
|
|
|||||
|
|
|
Mechanical life
|
200,000 times
|
|
|
|
|||||
|
|
Lamp parameters
|
Rated working Voltage/Current
|
AC DC(V)
|
|
AC(V)
|
|
|||||
|
|
|
|
6~220
|
|
220~380
|
|
|||||
|
|
|
|
≤15±3mA
|
|
≤15±3mA
|
|
|||||
|
|
|
Life of signal lamps
|
≥30000h
|
|
|
|
|||||
